UM-5 UM-6 direct mount serie Taiwan IP67 waterproof dustproof min-unid-cns electric actuator ball valve, electric valve actuator - Exportimes.com

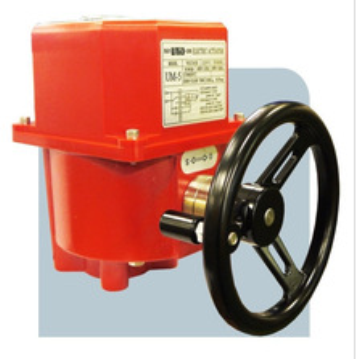

UM-5 UM-6 direct mount serie Taiwan IP67 waterproof dustproof min-unid-cns electric actuator ball valve, electric valve actuator

UM-5 UM-6 direct mount serie Taiwan IP67 waterproof dustproof min-unid-cns electric actuator ball valve, electric valve actuator
  • UM-5 UM-6 direct mount serie Taiwan IP67 waterproof dustproof min-unid-cns electric actuator ball valve, electric valve actuator
Share to:

Port:FOB TAIWAN



Payment Terms:T/T

Product Details

Parameter

Power: : Electric 40W/ 60W/ 65W
Media: : Heat, Acid, Alkali, Waterproof, Dustproof
Material: : Nylon/ Aluminum Alloy
Model Number: : UM-5 UM-6 Direct Mount Series
Pressure: : Medium Pressure
Place of Origin: : Taiwan
Brand Name: : mit-UNID-cns
Standard Voltage: : 110VAC, 220VAC, 24VDC .

Description

Specifications



IP67 Rated Water/Dust Proof
Direct Mount ISO5211
Voltage: 110VAC, 220VAC, 24VDC
Approvals: ISO9001/ CE/ CSA/ UL429/ IP67




Product Series:



UM-5, UM-6 Direct Mount Series



General Description:

  1. UM-1 to UM-6 provide direct mounting on ISO5211 valves
  2. UM Series Electric Actuator is low power consumption, high torque, high efficiency, excellent weatherproof heavy-duty motor.
  3. All the joints on the housing are armed with waterproofing seal (IP67), which is applicable for use in outdoor environment.
  4. Stabilized start speed to effectively avoid water hammering and prolong pipeline life.
  5. For UM Series, it is easy to view valve open/close position through mechanism position indicator on top and side window of actuator cover, or through wiring to control box to display signal lamp.
  6. All models have Built-in the thermal protection to prevent motor burning out.



Standard Voltage:

  1. 100VAC ~ 120 VAC
  2. 200VAC ~ 250 VAC
  3. 24VDC or other special voltage



Enclosure:

  1. IP 67 rated waterproof and dustproof
  2. Made of Nylon with has purpose of resisting against heat, acid, alkali, waterproof, dustproof.
  3. Optional: Aluminum Alloy



Valve:

UM Series provide mounting on ISO5211 valve or non ISO5211 valve.



Option:

  1. Temp. Controller
  2. Uncharged Limit Switch (Max. 2 units)
  3. Heater (including thermal protector)
  4. Modulating Controller
  5. Local Control Unit
  6. Relay
  7. Potentiometer (VR)
