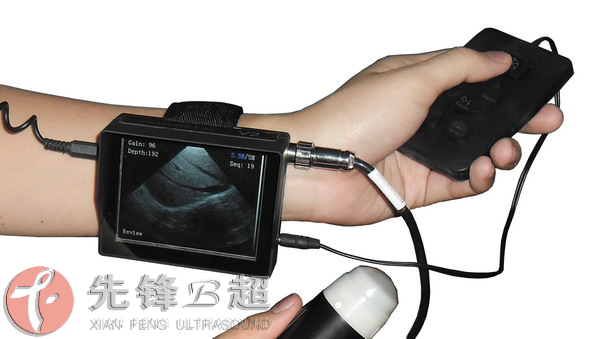

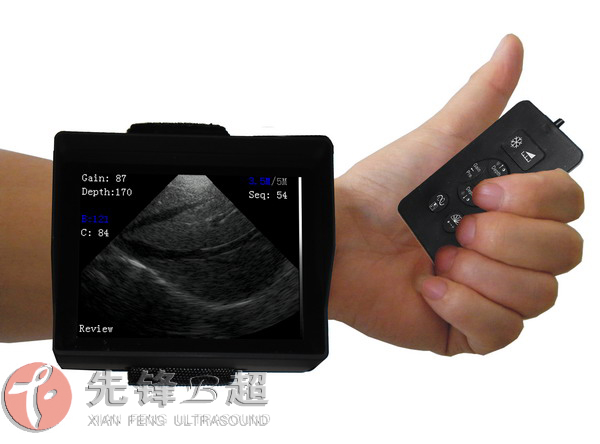

XF-50V Hand and wrist veterinary B ultrasound scanner

XF-50V Hand and wrist veterinary B ultrasound scanner
  • XF-50V Hand and wrist veterinary B ultrasound scanner
Share to:

Type: Ultrasonic Transducer Brand Name: xianfeng Model Number: XF-50V Place of Origin: Sichuan, China (Mainland) Net of host weight: 140g Net of probe weight: 150g Net of battery weight: 150g Color: black Size: 92mm*73mm*42mm Application: Animal Purpose: Pregnancy and fat test Power supply: AC and DC OEM: Yes CE certificate: Yes

Product Details

Parameter

Place of Origin : Sichuan,China(Mainland)
Model Number : XF-50V
Brand Name : XIAN FENG
Type : Ultrasonic Transducer

Description

Specifications

1.Small and light;
2.Function concise, simple operation;
3.Easy to carry and operation.

Application



Dog ,cattle.sheep, pigs, horses , cats ,dolphines, camels .etc.



Perfect   Configuration



1. Hand type keyboard, easy one-handed operation;

2.Function concise, simple operation;

3. The image is clear, pregnancy test, fat accurate and fast measurement;

4. The large capacity SD card to store the image;

5. The battery can be arbitrary replacement and due to the instrument power consumption small single battery long working hours;

6. With functions of probe frequency conversion, adapt to different inspection requirements;

7.With functions of pseudo color display;

8.The screen with a visor for outdoor work under the hot sun;

9. Local zoom can be used at real time;

10. With the puncture guiding function, line position can be adjusted;

11. With gravel positioning, dynamic target area tracking function.

 Technology Specifications



1.Scanning mode: Mechanical fan sweep;

2.Probe frequency: Double frequency 3.5 MHz / 5 MHz frequency probe;

3. The depth of the scanning: ≥180mm, 70mm, 110mm, 130mm, 110mm, 130 mm five gears is adjustable;

4.The screen size: 3.5 inches;

5. Image gray-scale: The class of 256;

6. The pseudo color:8 kinds of;

7. Image storage: 512 (stored in SD card);

8. Measuring the content of:Distance;

9.Input power: DC 5V( By external battery);

10.Overall power consumption:7W( When the probe movement)/2.5W( When the probe lockout);

11. Battery  working time: More than ten hours;

12. Blind Zone: ≤3mm;

13. Note:Date,time,name,sex,age,doctor,hospital,comment,Chinese/English conversion;

14. Main power supply: AC220V±22V , 50/60Hz.

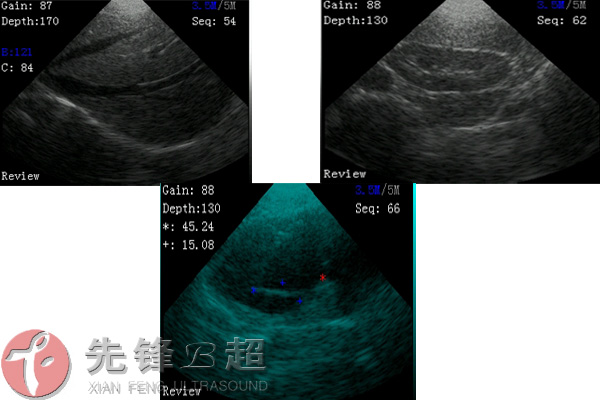

Pictures































Our advantage





There are 3 good reasons to choose us!





1.we are real manufacturer ,specializing in R&D ,design ,production and sales of medical B ultrasound systems.



2.Our technical deparment can change our B ultrasound to meet you and your costomer ‘s special request .such like put your company ‘s logo in software, OEM etc.



3.Many domestic trade companies buy our B ultrasound for export , our B ultrasound have high reputation in overseas markets . if you buy from our factory directly , you will get faster delivery ,much longer quality assurance.more technical support ,and attractive price! You will got more profit than anywhere else , Because we work hard for you which gives you a lot of positive contribution!!

Company Profile

Mianyang Xianfeng Medical Instrument Co., Ltd. is located in the High-tech Industrial Development Zone of Mianyang, as a beautiful scientific and technological city in west China. The company is a high-tech enterprise, specializing in the R&D, design, production and sales of medicine video systems.

The senior R&D team participates in the whole process of researching and developing, and designing the first generation of B type ultrasound scanners, mechanical sector, electronic linear and electronic convex array. The fully digital ultrasound image diagnostic equipment, developing with the United States recently, has reached domestic leading level. The company not only provides a variety of high-quality B type ultrasound scanners, but also provides technical design and technical support for many ultrasound scanner manufacturers.

With the quality policy of "safe and effective, healthy service, honest operation, satisfy the customer", with fully equipped testing equipment and strict inspection procedures, our B type ultrasonic diagnostic apparatus has won a good reputation in the field by excellent quality, perfect services, and steady improvement of market share.

Taking the theme of "Let science and technology service healthy" as the mission and medical industry as the basis, Mianyang Xianfeng Medical Instrument Co., Ltd. will continue carrying out technical innovation and improving product performance and product quality to make outstanding contributions for the healthy life of human.

Product Introduction:
The XF-218 and XF-2000 series of fully digital ultrasonic diagnostic apparatus, developed and produced independently by the Company, do full justice to the high quality and high-definition images of the instruments by using high-precision fully digital beam-forming technology. We have human series and veterinary series. Human series are mainly applied to the human liver, gallbladder, kidney, spleen, pancreas, bladder and other organs as well as gynecology, obstetrics and gynecology such as examination and diagnosis. They are widely used in the diagnosis of many hospitals, communities and family planning departments at all levels.

The veterinary series is mainly applied to the ultrasound and gestational age measurement of cats, dogs, sheep, horses, cows, dolphins and other animals.
