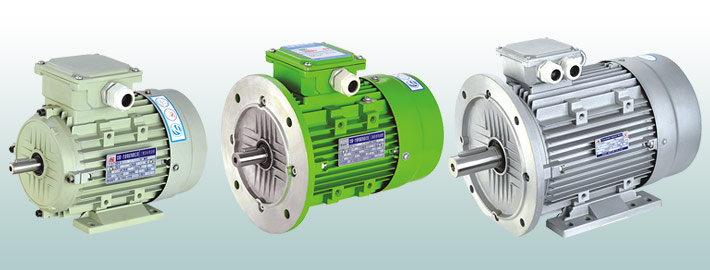

Y2 Serie three-phase asynchronous motor is a kind of TEFC squirrel cage motor with the national unified design, it has the characteristics of high efficiency, energysaving, high starting torque, low noise, low vibration and easy maintenance, The grade of power and the mounting measurement are subject to the IEC standard, This series motor is commonly used in the machinery without special requirement specially for reducer, air compressor, water pump, oil pump, packaging and food macinery and so on.
Technical Data
Centre height of frame:63-160mm
Power range:0.12-18.5KW
Rated voltage:380V(special should order)
Rated frequency:50Hz or 60Hz
Protection class:IP55
Insulation class:F
Duty type:S1
Fixing Measurement of Y2 Series
B3 Frame with foot end shield without flange
B35 Frame with foot end shield with flange
B5 Frame without foot end shield with flange
B14 Frame without foot end shield with flange
