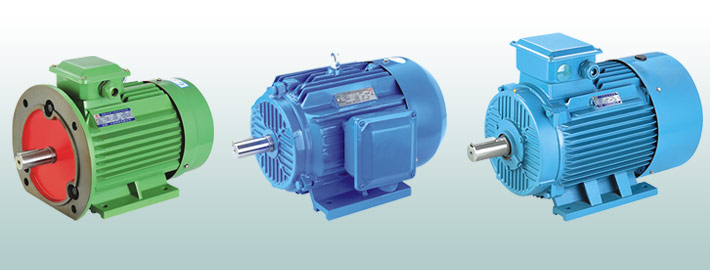

Y2 series electric motor is the improvement type of Y series,all the performances are in conformity with IEC standard.It has the advantages such as perfect structure,attractive appearance,little vibration,low noise, heat resistance and high protection class,it reaches the international advanced level.
Technical Data of Y2 series
Centre height of frame size:63~355mm
Power range:0.12~315kW
Rated voltage: 380V(special should order)
Rated frequency:50Hz or 60Hz
Protect ion class:IP54 or IP55
Insulation class:F
Duty type:S1
Fixing Measurement of Y2 series:
B3 Frame with foot end,shield without flange
B35 Frame with foot end,shield with flange
B5 Frame without foot end,shield with flange
