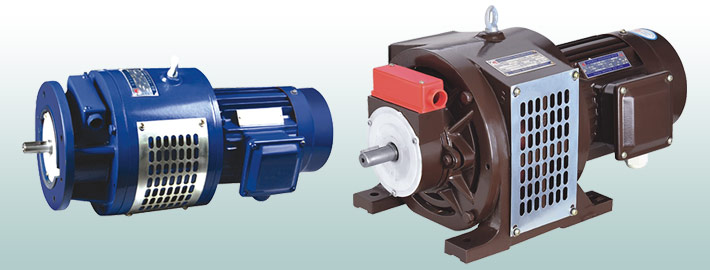

YCT series motor consists of three(or single) phase induction motor and electronic slip clutch and tachogenerator,achieves infinitely adjustments of output speed by change the exciting exciting current of clutch through JD or ZTK controller.The performance and mounting dimension are in accordance with JB/T7123 and IEC standard.It widely applies to the industries of spinning, dying, rubber,plastic,sugarmaking,building,fan etc.
Technical Data
Rated voltage of controller:220V
Centre height of frame:112~355mm
Power range:0.55~90kW
Excitation winding:≤90V (DC)
Rated voltage: 380V(three phase)220V (sisgle phase)
Rated frequency: 50Hz or 60Hz or special
Protection class: IP21
Insulation class: B
YCT series electromagnetic governor motor's technical data
