YN 958G 5 tons Front Wheel Loader for sale 3cbm bucket capacity ZL50 Shan dong Yineng

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • After-sales Service Provided
    Overseas service center available
  • Warranty
    1 year
  • Certification
    CE;ISO9001:2008
  • Rated Load
    5000kg
  • Dimension(Long * Breadth * High)
    7960*3070*3490mm
  • Moving Type
    Wheel Loader
  • Type
    Front Loader
  • Place of Origin
    Shandong, China (Mainland)
  • Model Number
    YN 958
  • Brand Name
    YINENG
  • Condition
    New

Brief description

Shangchai Caterpillar tech SC11CB220G2B1 engine is adopted, large torque backup and strong power. Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.

Detailed description



Features:

* Shangchai Caterpillar tech SC11CB220G2B1 engine is adopted, large torque backup and strong power.

* Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.

* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.

* Strengthened axles owning large bearing capacities and high reliability.

* Twin pump merging hydraulic system makes lower consumption and excellent performance.

* The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.

* Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.

* Air over hydraulic brake system; eight caliper disc brakes.

* Air break control, expand hoof type parking brake and emergency brake.

* Working device with automatically leveling ability at high position.

* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

* Integral, luxury instrument board.

* New, luxury cabin



Main Specifications:

Item

Specification

Item

Specification

Bucket capacity

3m³

Min. turning radius (outside of rear wheel)

6360mm

Rated load

5000kg

Steering angle

35°

Dumping height

3100mm

Min. ground clearance

478mm

Dumping reach

1285mm

Wheel base

3200mm

Boom lifting time

6.8s

Wheel tread

2250mm

Max. speed

36km/h

Rated power

162kW/2200rpm

Max. breakout force

170kN

Tyre

23.5-25

Max. drawing force

150kN

Overall dimensions

7960*3070*3490mm

Max. grade ability

28°

Operating weight

17000kg

Remark: Heavy chassis for standard

Shandong Yineng Heavy Industry Co., Ltd. is situated at the foot of the world famous Mount Tai, built in 2009. Our company is a specialized factory engaged in the development and production of engineering machinery. The main products are YN series wheel loaders, with 20 different loaders in total and the annual production capacity now has reached 10,000 units. Our company has passed ISO9001:2000 Quality System Qualification and assessment of State Engineering Machinery Quality Supervision Center. We have obtained Special Equipment Production License and been a member of China Machinery Council as well. Our company has Taian Yineng Hydraulics Co., Ltd., Taian Luneng Import & Export Co., Ltd., Taian Luneng Trading Co., Ltd. and Taian Luneng Frame Co., Ltd. as branches. We are always following the philosophy of Prosper enterprise with super quality products. To create Yineng brand, we consider products quality as the life of enterprise and control the quality strictly, take customer's needs as the direction of product development and make the top brand of mini loader as striving target. We have won wide market with excellent products, better service and reasonable price. Our products are not only popular in domestic markets, but also are exported to Germany, Poland, Norway, Kazakhstan, Indonesia, the UAE, Saudi Arabia, Syria, Iran, Brazil, Venezuela, Nigeria, South Africa, Australia, etc.

Basic Information

  • Business Type:
  • Main Products:
    Wheel loader,Off-road forklift,Attachments,Skid Steer Loader,Backhoe Loader
  • Location:
    Youth Pioneering Development Zone, Taishan, Taian, Shandong, China (Mainland)
  • Total Employees:
    301 - 500 People
  • Year Established:
    2009

Trade Information

  • Top 3 Markets:
  • Accepted Payment Currency:
  • Nearest Port:
  • Average Lead Time:
  • Overseas Office:
    No

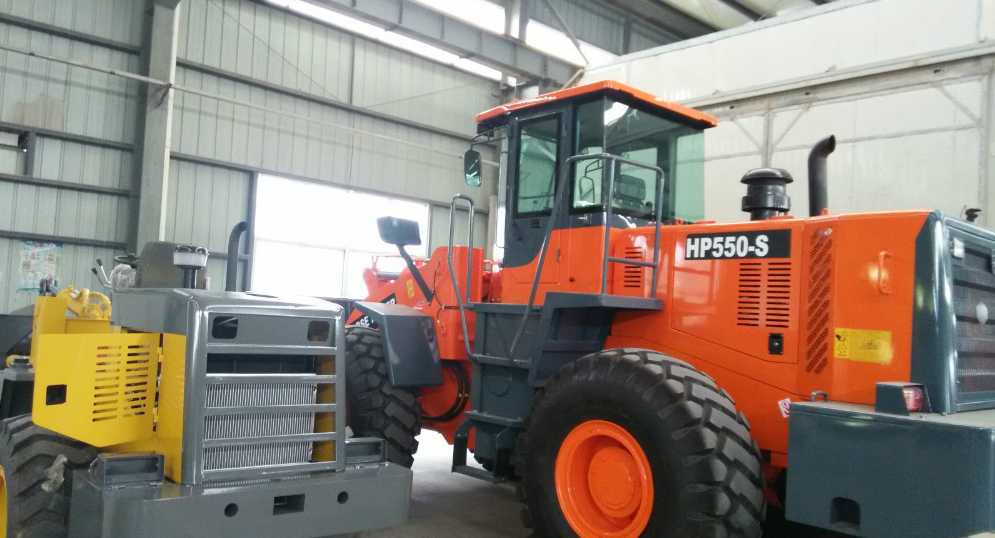

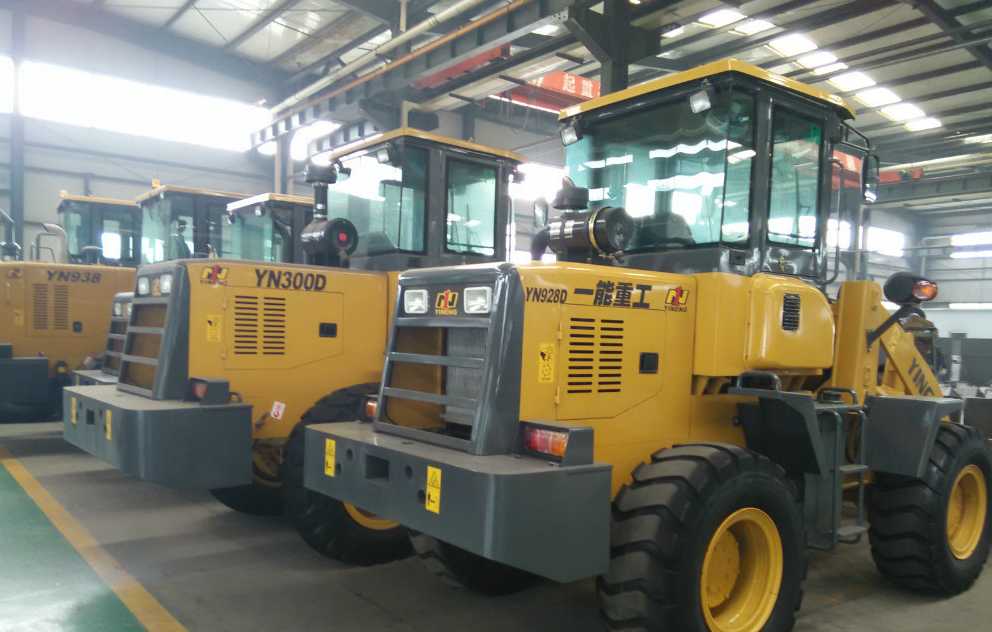

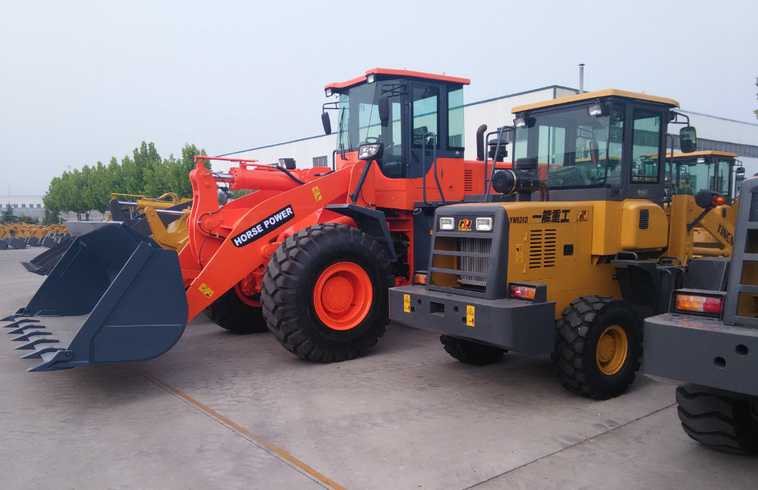

Company Pictures
