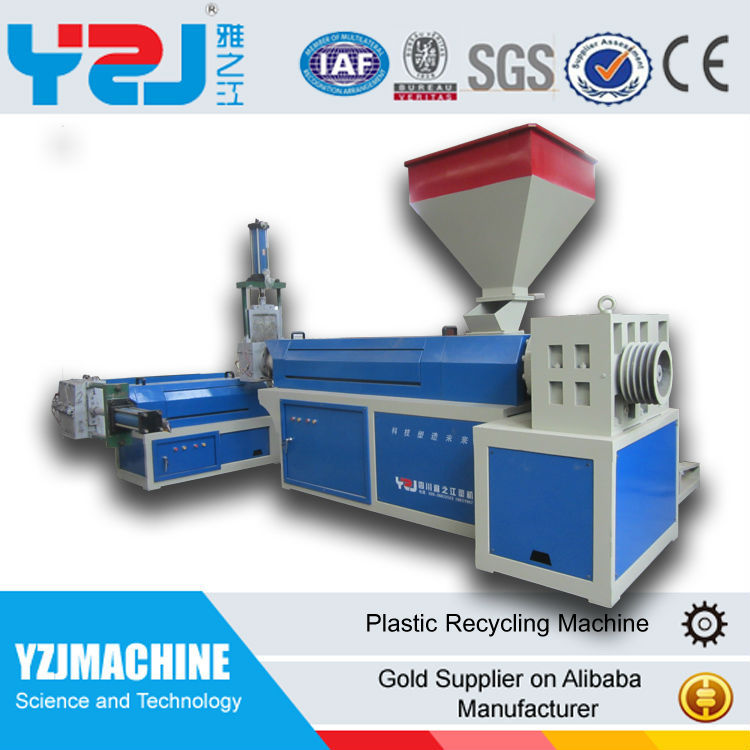

Machines for the production of polypropylene
Specifications:
a. Materials can be treated: HDPE/ PP Rigid materials
b. Technical process: Ration feeder — Extruder — Hydraulic screen exchanger — Water cooling tank — Drying system — Cutter — Silo — Electric cabinet
c. Model (screws die): YZJ-120, ZJ-150, YZJ-155, YZJ-160, YZJ-180, YZJ-200.
d. Capacity available: PE: 150-500kg/h PP: 120-400kg/h
e. Power consumption: 55-150 KWH
equipment characteristics:
1, Screw Barrel: the use of high-quality carbon steel or alloy steel, quenched by the surface of the surface by grinding processing, has an excellent wear resistance and anti-deformation capacity. Processing is not equidistant, in favor of loose plastic extrusion feed, into the charge to increase production to increase. At the same time the design for the eight mixing head, good plasticization, high output, low energy consumption.
2, nose: choice of feeding centers. Head rotation, head outside the spiral, cone-in nose. Motor head, hydraulic head optional.
3, reducer: the use of special heavy-duty reducer extruder, are hardened tooth surface reducer
1. This double- screw plastic pellet machine is used to recycle film plastic material, just like PP/PE film/woven bags and so on.
2. It can convey crush the material, finally you will get clean, dry flakes, which can be used to make granules directly or some other use.
3. high output, low noise, stable performance and easy operation
4.Simple process, advanced technology, automatic temperature control, national energy-saving patented heater, low power consumption, non-pollution, high degree of automation.
Our Good quality best price hard PP PE recycling machine may regenerate polyethylene, polypropylene, polyvinyl chloride, PE, PP, PVC, PET, ABS, PS,etc
PP\PE double-screw technical data
|
SJZ120-F2
|
SJZ130-F2
|
SJZ140-F2
|
SJZ150-F2
|
SJZ160-F2
|
SJZ180-F2
|
SJZ200-F2
|
|
Diameter φ
|
120
|
130
|
140
|
150
|
160
|
180
|
200
|
Length mm
|
12.5:1
|
12.3:1
|
12.1:1
|
12:1
|
12.5:1
|
12.2:1
|
12.5:1
|
Rotation speed r/min
|
60-90
|
60-90
|
60-90
|
60-90
|
60-90
|
60-90
|
60-90
|
Material
|
45#
|
45#
|
45#
|
45#
|
45#
|
45#
|
45#
|
Number of heated are
|
3
|
3
|
4
|
4
|
4
|
4
|
4
|
Average heating power KW
|
15-25
|
15-25
|
20-30
|
20-30
|
25-30
|
30-35
|
35-40
|
Motor power
|
15-18.5
|
18.5
|
18.5-22
|
22
|
22-30
|
30-35
|
37
|
Air exhaust mode
|
Single air exhaust
|
|
Diameter φ
|
100
|
110
|
110
|
120
|
120
|
130
|
130
|
L/D mm
|
8:1
|
7.2:1
|
7.2:1
|
6.7:1
|
6.7:1
|
6.1:1
|
6.1:1
|
Rotation speed r/min
|
80-120
|
80-120
|
80-120
|
80-120
|
80-120
|
80-120
|
80-120
|
Material
|
45#
|
45#
|
45#
|
45#
|
45#
|
45#
|
45#
|
Number of heated area
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
Average heating power KW
|
3
|
3
|
6
|
6
|
6
|
6
|
6
|
Motor power
|
5.5
|
5.5
|
7.5
|
7.5
|
7.5
|
11
|
11
|
Mode of changing sieve
|
manual /electric /
|
manual /electric /
|
manual /electric /
|
manual /electric/
|
manual /electric /
|
manual /electric /
|
manual /electric /
|
Configuration of electric tank
|
/ automatic temperature control
|
Cooling mode
|
water
|
water
|
water
|
water
|
water
|
water
|
water
|
Throughput Kg/h
|
60-100
|
70-110
|
80-120
|
100-150
|
120-160
|
140-180
|
150-200
|
Speed regulation for particle-cut machine KW
|
1.1
|
1.1
|
1.1
|
1.1
|
1.1
|
1.5
|
1.5
|
|
|
|
|
|
|
|
|
|
|
