ZHP 5000LPH 15 years factory experience stainless steel water filter

ZHP 5000LPH 15 years factory experience stainless steel water filter
  • ZHP 5000LPH 15 years factory experience stainless steel water filter
Share to:

FOB Price: US $ 1,000 - 10,000 / Set | Get Latest PriceMin.Order Quantity: 1 Set/SetsSupply Ability: 300 Set/Sets per MonthPort: Shanghai/Chongqing/Shenzhen/Tianjing/GuangzhouPayment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Details

Description

Quick Details

  • Place of Origin: Sichuan, China (Mainland)
  • Brand Name: ZHP
  • Model Number: ZHP-PW
  • Voltage: 110v/220v/380v
  • Output: 100L-50,000 per day
  • Material: SS304/SS316
  • Pipe: UPVC/SS
  • RO Membrane: Dow/Toray/Hydraunics or as required
  • Type: Reverse Osmosis
  • Warrenty: 1 Year
  • Control: Automatic Controller
  • state: new

Packaging & Delivery

Packaging Details: Wooden Case on Pallets
Delivery Detail: within 15 working days after deposit receipt
General Information

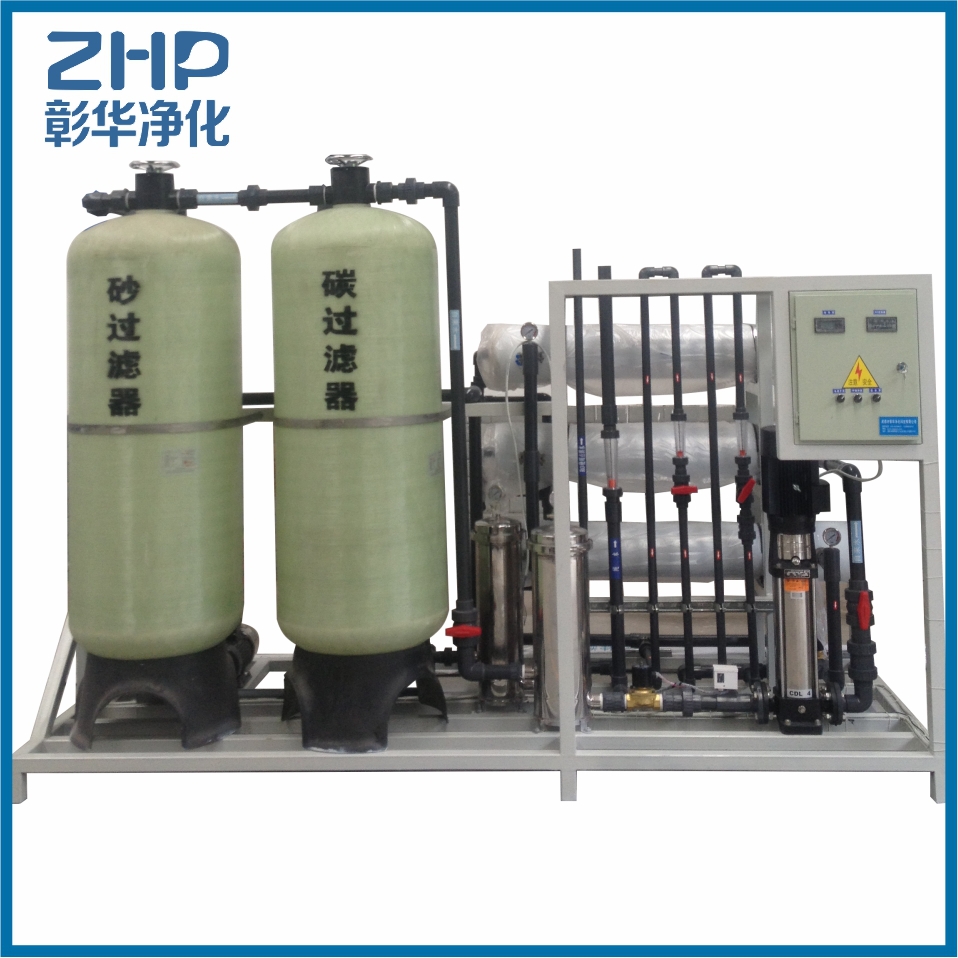

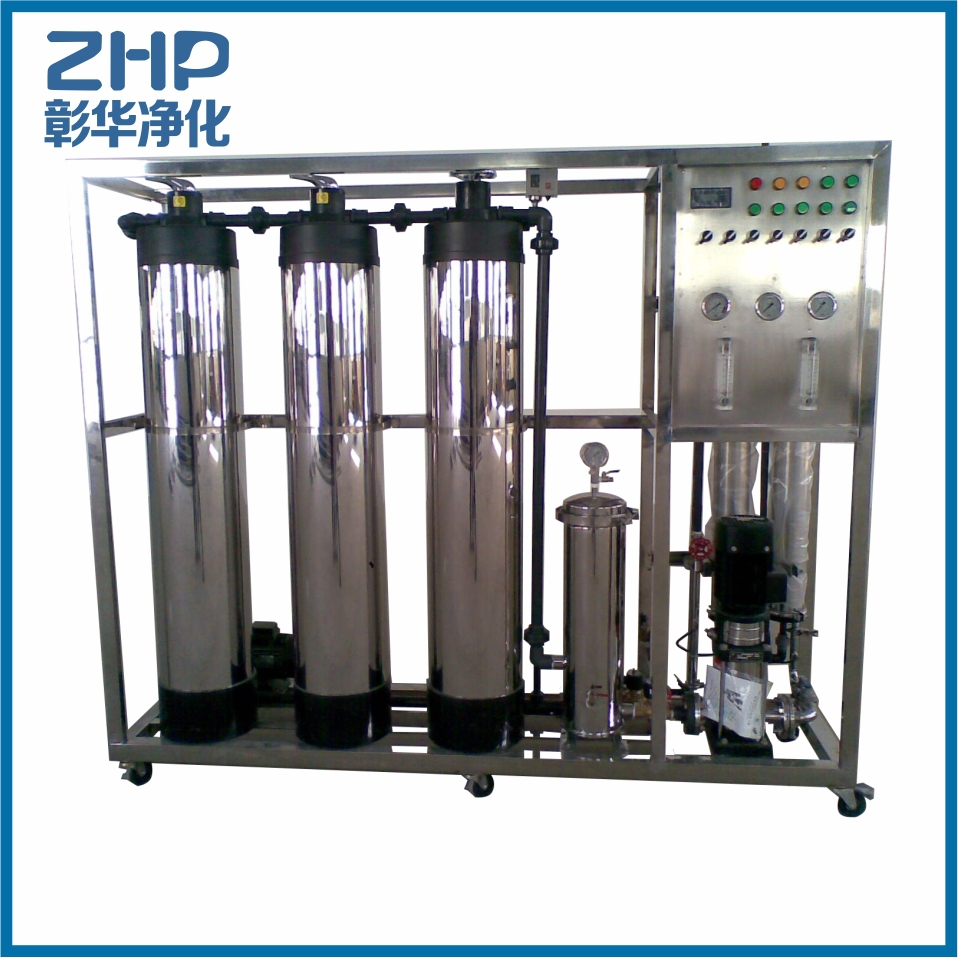

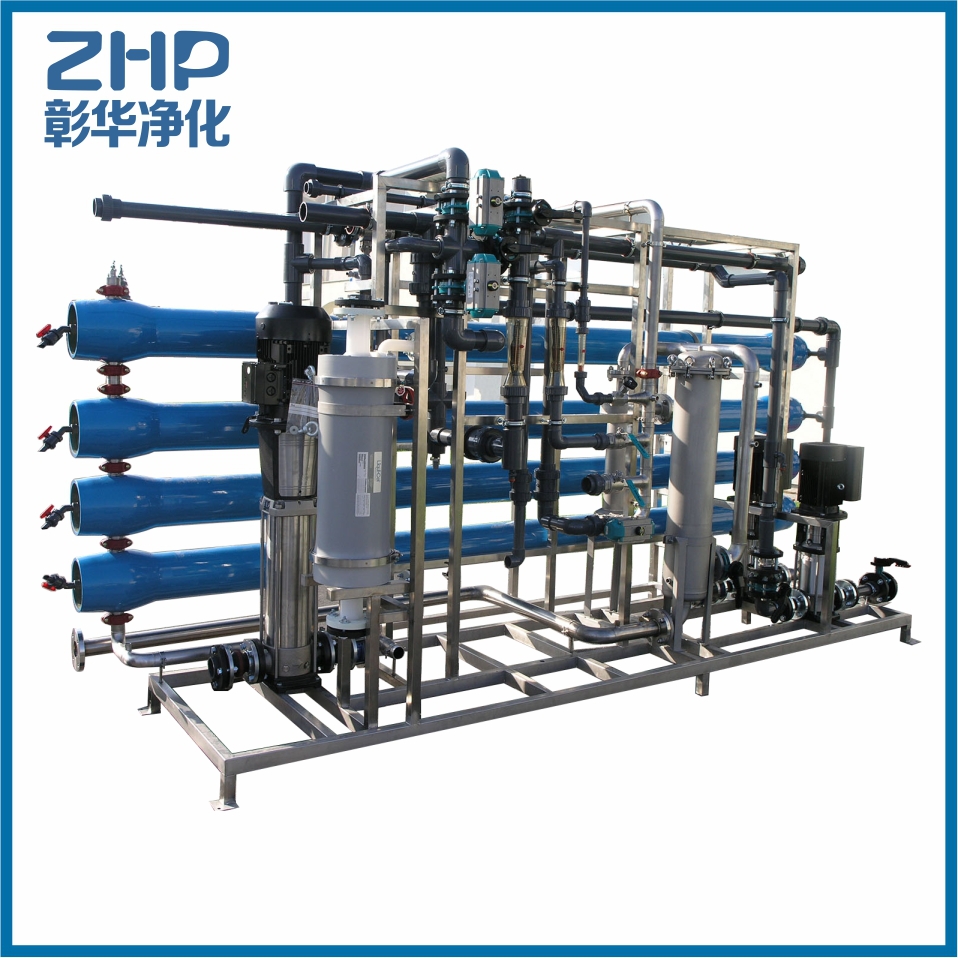

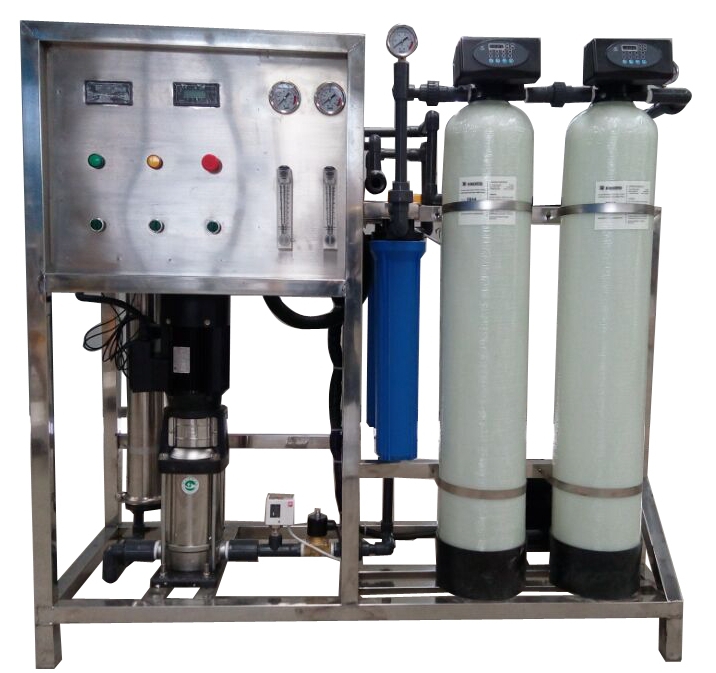

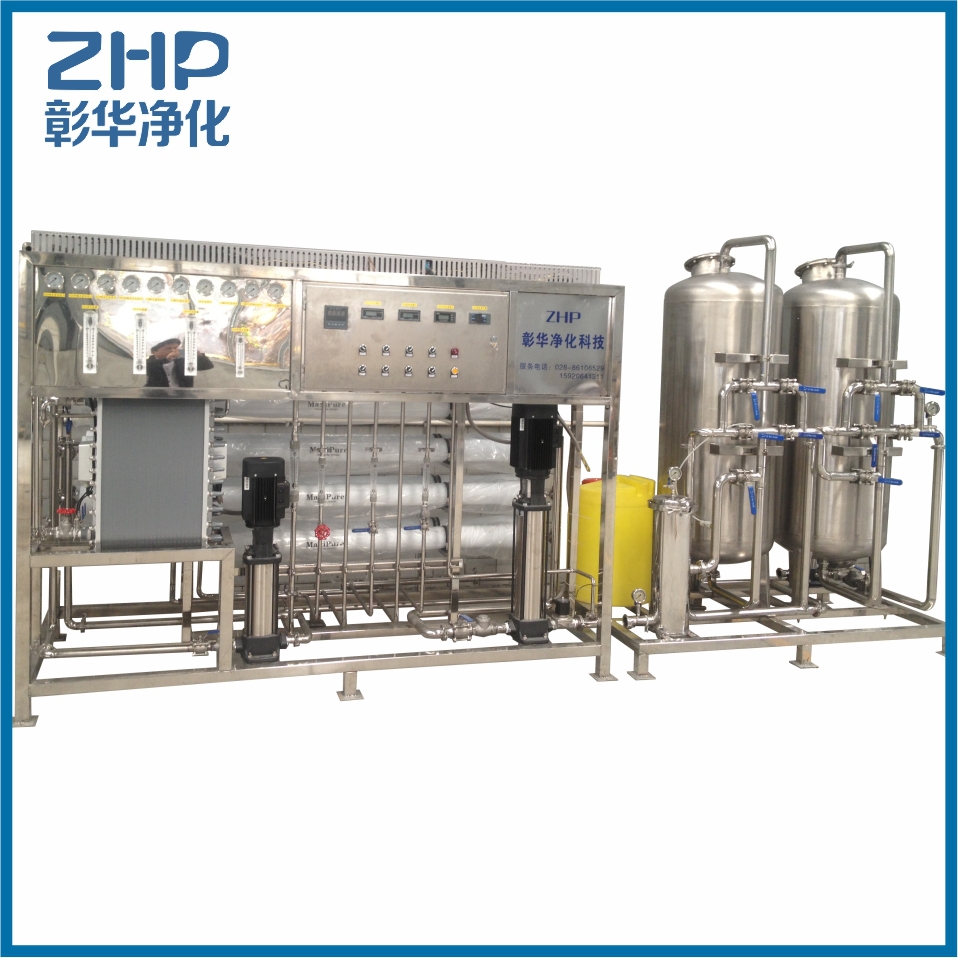

ZHP 5000LPH 15 years factory experience stainless steel water filter ZHP designs and builds Reverse Osmosis systems (RO Systems) ranging in size from 1,500 GP(0.25 m3/h) to 3,000,000 GPD (500m3/h) .RO units produce a high quality water yield at a low cost compared to other purification processes.



RO System Operating Parameters



1. Operating Pressure: < 300 psig

2. Maximum Recovery: 60% - 75%

3. Nominal Rejection: 95-99%

4. Operating Temperature: 2-35 ºC

5. Minimum Inlet Pressure: 30 psig

6. Design Temperature: 25 ºC

Model Capacity Inlet
Pipe
Outlet
Pipe
Drainage
Pipe
Rated Power
(KW)
Demension
L*W*H (CM)
Ship Weight
(Kg)
ZHP-JSH-0.25T 1500GPD(0.25m3/h) 1/2" 1/2" 1/2" 2 180*90*170 200
ZHP-JSH-0.5T 3000GPD(0.5m3/h) 3/4" 1/2" 3/4" 2.2 180*90*170 220
ZHP-JSH-1T 6000GPD(1.0m3/h) 1" 3/4" 1" 2.6 190*100*210 280
ZHP-JSH-1.5T 9000GPD(1.5m3/h) 1" 3/4" 1" 3.1 190*100*210 370
ZHP-JSH-2T 12000GPD(2.0m3/h) 1-1/4" 1" 1-1/4" 4.1 230*100*210 450
ZHP-JSH-2.5T 15000GPD(2.5m3/h) 1-1/4" 1" 1-1/4" 4.3 230*100*210 520
ZHP-JSH-3T 18000GPD(3.0m3/h) 1-1/2" 1" 1-1/2" 4.7 245*100*210 610
ZHP-JSH-4T 24000GPD(4.0m3/h) 1-1/2" 1-1/4" 1-1/2" 5.9 275*100*210 740
ZHP-JSH-5T 30000GPD(5.0m3/h) 1-1/2" 1-1/4" 1-1/2" 6.3 300*100*210 880

 All weights and dimensions are approximate. Other custom designs are available upon request.













Related Products



Application











Our Customer













FAQ



Q: What's the product water quality?

A: Product water quality depends on you needs and local law.



Q: How to ensure product water quality?

A: we can pass any third-part lab inpection before payment.



Q: What's your warrenty policy?

A: 1 year after installation (wearing parts excluded).



Q: How long can I get my RO system?

A: Normally 30 days after payment



Q: What and when comsumables should be placed?

A:

No. Consumables Life Span
1 Quartz Sand 1 year
2 Activated Carbon 1 year
3 Water Softening Resin 1 year
4 PP Filter 6 months
5 RO Membrane 24 months
6 UV Lamp 1 year
7 Industrial Salt 7 days
