- Structure: Spherical
- Type: Roller
- Brand Name: SYB/OEM
- Bore Size: 160 mm
- Outside Diameter: 240 mm
- Model Number: 24032MBW33
- Precision Rating: P0,P6,P5
- Seals Type: open
- Number of Row: Single Row
- Place of Origin: Liaoning, China (Mainland)
- Width: 80mm
- Weight: 12.7kg
- Ring Material: GCr18Mo&GCr15SiMn
- Cage Material: Brass cage/steel cage
- Cage Structure: CA/MB/CC
- Basic load rating: Cr=680kN Cor=1260kN
- Heat treatment: AICHELIN
- Hardness: 58-63 HRC
- Certificate: ISO9001:2008, GB/T 19001-2008 , CE will have few days
- Features: Crossed oil groove on the outer ring
Packaging & Delivery
Packaging Details:Industrial tape rolling + International plywood case or according to the orderDelivery Detail:20-60 workdays depend on order quantity
1. Brass cage ,bearing steel material
2. high quality&precision spherical roller bearings
3. customized spherical bearings
Carburizing bearing steel export for spherical roller bearings 24032MBW33
1.Vibration screen bearing
2.Spherical roller bearing
4.24032 spherical roller bearing
The Description of Spherical Roller Bearing
Spherical roller bearings are designed with double-row raceway inner ring, spherical raceway outer ring and the convex symmetrical rollers. With the same center as the bearings, the spherically formed outer ring raceway can make self alignment, which can adapt the deflection between axis and housing bore.
This kind of bearings can take great radial load, suitable for heavy machines used in paper-making, mining, vibration sieve, rolling mill and so on.
Spherical Roller Bearings Designs
CA---The alternative design of the second generation, these bearings feature a precision-machined brass cage and strengthened symmetric roller and are equivalent to CC design in load ratings. They are used to exchange with C design, particularly for large size.
MB---Feature a two piece precision-machined brass cage. These bearings incorporate strengthened symmetric rollers, and are equivalent to CC design in load capacity.
CC---Features a stamped steel cage and strengthened symmetric roller. As a second generation design, these bearing designs are optimized to offer considerably higher load ratings than conventional designs for a broad range of applications and long service life.
Spherical roller bearings---CA/MB/CC
Dimension: Inner bore diameter ≥100mm
: Outer bore diameter ≤1500mm
Precision: P0, P6, P5, SP

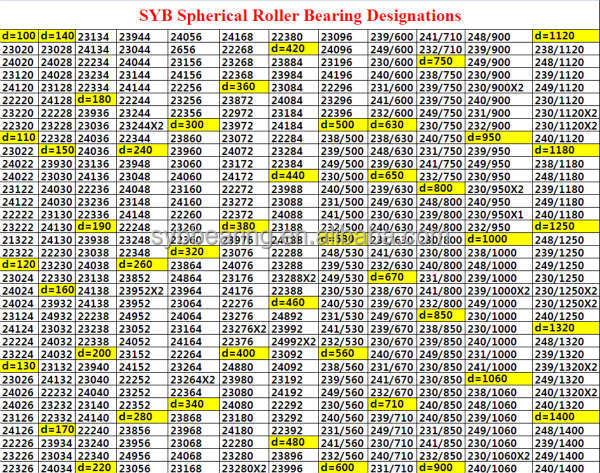

SYB Spherical roller bearing designations
Our company is capable of producing thousands of kinds of medium large and extra large sized bearings including spherical roller bearings, cylindrical roller bearings, deep groove ball bearings, tapered roller bearings, thrust ball bearings and thrust spherical roller bearings, with the dimension from 150mm's bore diameter to 2000mm's outside diameter. Among them spherical roller bearings is SYB's main product with good dimension, high precision and strong stability. It is the first choice to replace imported bearings for customers. Our products are widely used in metallurgical rolling mill, wind power plant, mining, petrochemical, paper making and other machinery fields.
