Condition:
New
Brand Name:
YUAN SHAN
Model Number:
GK956
Place of Origin:
Fujian China (Mainland)
Type:
Front Loader
Moving Type:
Wheel Loader
Dimension(Long * Breadth * High):
7310*2870*3300mm
Rated Load:
5000kg
Certification:
ISO 9001:2000
Warranty:
12 months or 2000 working hours
After-sales Service Provided:
Engineers available to service machinery overseas
Bucket Capacity:
3CBM
Operating Weight:
16100kg
High dump:
3.5m available
Rock tire:
optional
Rock bucket:
optional
Joystick pilot control:
optional
Air conditioner:
optional
Engine optional(2):
Dongfeng Cummins 6CTA8.3-C215
Engine optional(1):
Shanghai diesel C6121
Standard engine:
Weichai WD10G220E22
Superior performances of coal loader GK956:
1. Low fuel-consuming, high-quality turbo charged engine has good power performance and big torque reserve if you use new WEICHAI WD10G220E22.
2. Double rocker with better visual field. Short wheel base chassis improves steering flexibility and operation efficiency.
3. Full-hydraulic steering system can reduce operator's labour intensity.
4. Unique energy-saving patent technology, including double pumps and double circuits, turning priority and unloading hydraulic pressure system, is efficient and energy-saving with better power performance and lower fuel consumption.
5. Double-turbo hydraulic torque-converter together with dynamic planet-type gear box enables a wide and high efficient range and facilitates the gear shifting.
6. Bigger driving axle, 4-wheel drive ensures excellent towing performance.
7. Four-wheel, dual-line and pliers disc braking system ensures safer and more reliable operation.

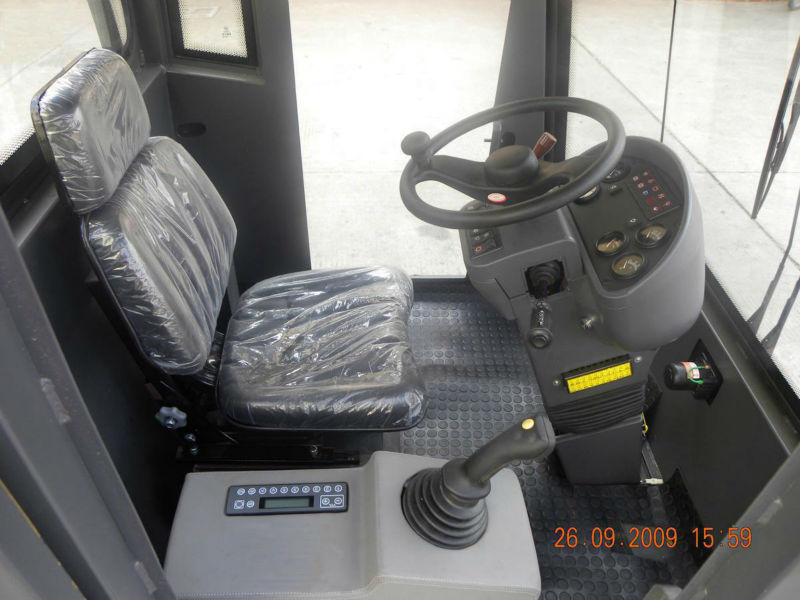

8. The sound-proofing, heat-proofing and shock-absorbing driver's cab has a spacious operating space, a broad view and comfortable adjustable seats, specialized cool & hot air-condition can also be equipped.
9. Z-form connecting rod has strong breakout force and high raising ability, and enables high operating efficiency.
10. Low alloy material and alloying blade and corner tines are used for the bucket, which is stronger and more durable.
11. Front wheel loader GK956 with higher dumping height and biggest dumping reach.
12. The frame provides good machine stability and stronger structural strength.
13. Rational matching parts, superior machine performance and extraordinary operating efficiency.
14. Various optional equipments and buckets of front wheel loader GK956 can satisfy different needs of customers.
![5ton coal loader GK956]()
![5ton coal loader GK956]()
