Specifications
composite tundish nozzle with alumina carbon and inside zirconia innner
Different dia nozzles
Zinconia reach 96%
500 min life

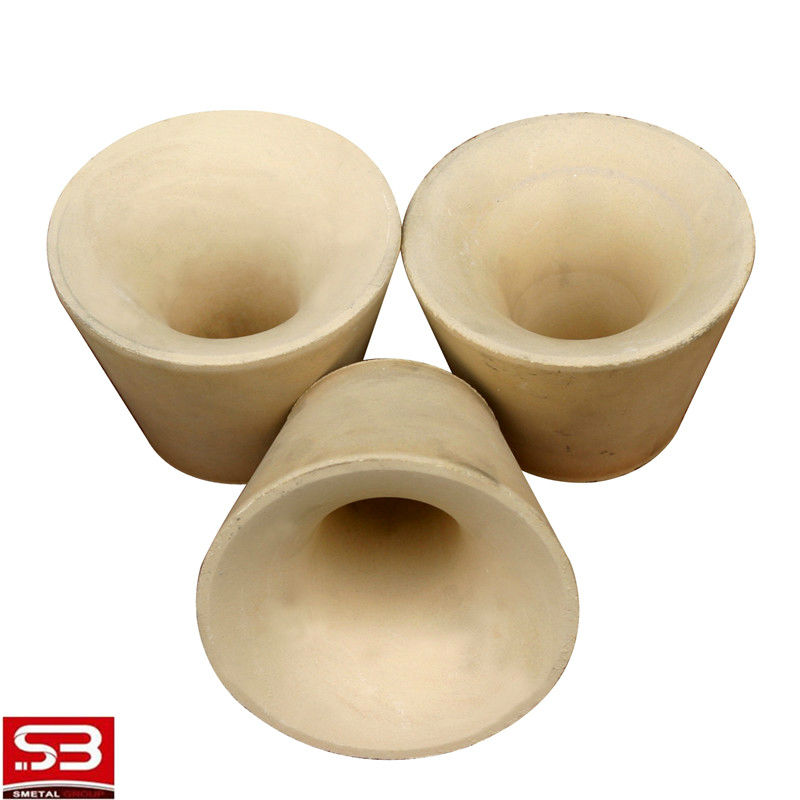

Tundish Given-Diameter Zirconic Water Outlet:
Brief Account:
Given-diameter zirconic water outlet is made of zirconia and imported natural baddeleyite , formed by high tension and baked in high temperature when stablized by special technology. Different sizes and types of outlets are designed and made according to user's different steel-making conditions and requirements.
Specific Property:
It is refractory, well thermal- shock resistant, anti-eroding, anti-erosive, changeless diameter and lasting long.
Application:
In casting steel it is mainly used in successive-casting intermediary small square adobes, big square adobes, rectangle adobes and small board adobes.

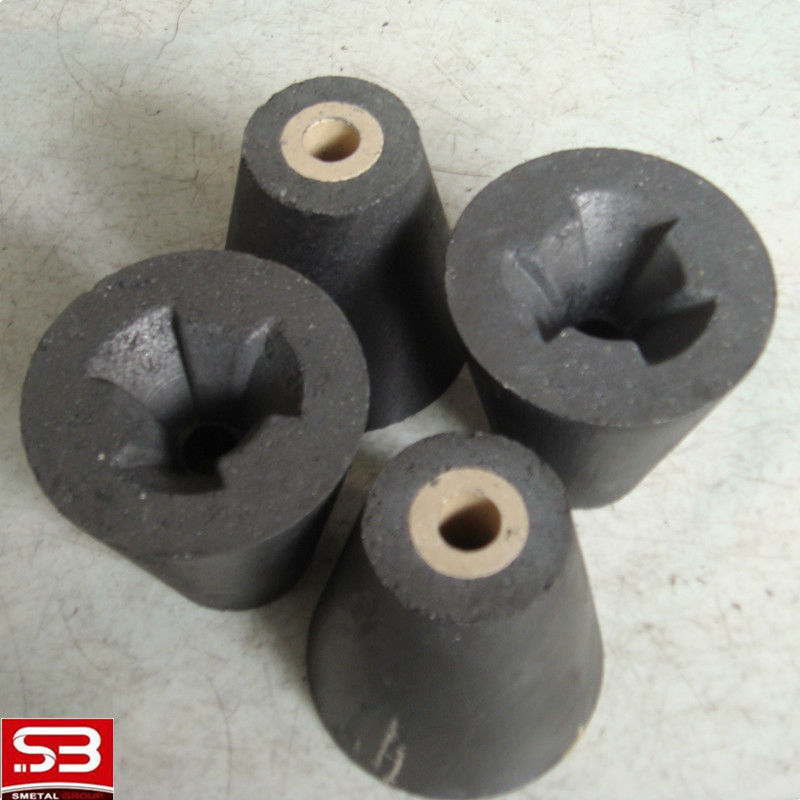

Features of composite tundish nozzle with alumina carbon and inside zirconia innner
1 We provide different dia tundish nozzle.
2 Zinconia can reach 96% purity,
3 Life more than 500 minut
Physical and Chemical Index of composite tundish nozzle with alumina carbon and inside zirconia innner
Technical Data (Customer can choose nozzles according to their own experience.Also,we allow ODM/OEM)
Brand
Items
|
Nozzle Cores
|
RF-1
|
RF-2
|
RF-3
|
RF-4
|
RF-5
|
RF-6
|
RF-7
|
RF-8
|
Zr(Hf)O2 % ≥
|
70
|
75
|
80
|
85
|
90
|
93
|
93
|
93
|
Bulk density (g/cm3) ≥
|
3.8
|
3.9
|
4.0
|
4.1
|
4.3
|
4.9
|
5.1
|
5.2
|
Apparent porosity % ≤
|
22
|
22
|
20
|
20
|
20
|
15
|
13
|
10
|
Cold crushing strength Mpa ≥
|
80
|
80
|
80
|
80
|
80
|
90
|
90
|
100
|
Thermal shock resistance /cycle
(1100°C water quenching) ≥
|
5
|
5
|
5
|
5
|
5
|
5
|
5
|
5
|
Application
|
Used in billet con-casting system to control molten steel flow rate
|
Technical Data
Brand
Items
|
Nozzle Sleeve
|
RFW-A1
|
RFW-A2
|
RFW-AC3
|
RFW-AC4
|
Al2O3 % ≥
|
65
|
70
|
70
|
75
|
C %
|
|
|
5
|
5
|
Bulk density (g/cm3) ≥
|
2.6
|
2.6
|
2.7
|
2.7
|
Apparent porosity % ≤
|
23
|
23
|
23
|
23
|
Cold crushing strength Mpa ≥
|
40
|
40
|
45
|
45
|

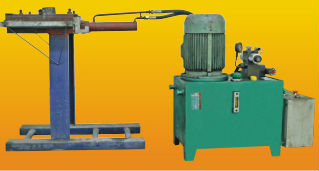

Tundish sizing nozzle quick changing series
Brief Account:
They are made of alloy steel and composed of mechanism, hydraulic cover, hydraulic vat, water-supply outlet and sewer. Service life of water-supply outlet is over 50 hours and sewer is 8-10hours.They forms a complete set with intermediary's vibrating material to improve service life of intermediary.
Specific Property:
They are lower-consumption, simple-structure, light, easy and convenient.
Application
It is mainly used in successive-casting tundish.
