FOB Price:US $ 2 - 80 / Piece
Min.Order Quantity:100 Piece/Pieces sample order also welcome
Supply Ability:10000 Piece/Pieces per Month subject to our finial confirmation
Port:FOB DALIAN
Payment Terms:L/C,T/T,Western Union
Quick Details
- Place of Origin: Liaoning, China (Mainland)
- Brand Name: Hongyuan
- Model Number: FA301
- Type: dust collector filter bag
- Usage: Dust Filter
- Material Of Bag: Fiberglass
- Item: filter bag for cement plants
- Density( pics/cm): 48x40
- Weave: double twill
- Weight (g/m2): 780-830
- Tensile strength(N) warp/weft: >2400/>2000
- Mullen burst(kap): 3600
- Air permeability(cm3/cm2/s): 15-30
- Loss on ignition: >10
- Size: custom made dust bag
- Finished: PTFE
Packaging & Delivery
Packaging Details: |
one filter bag in a plastic,then someone in a carton,then some cartons on a pallet |
Delivery Detail: |
20 days after geting deposit |
Specifications

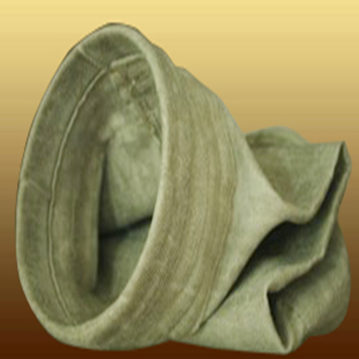

filter bag for cement plants
1.ISO9001:2008
2.USA standard
3.Media type:fiber glass,ptfe,pps,p84,polyester,etc
filter bag for cement plants
Yingkou Hongyuan Fiberglass Technology Co., Ltd. Manufacture and supply various type of Dust Collector Filter Bags.
These dust filter bags are widely used in cement industry,stell industry,chemical industry,power plant,etc.Our dust collector filter bags are available in different shapes and sizes.These are manufactured using different materials depending on the
needs of clients such as fiberglass,polyester,PTFE,PPS,P84,Nomex.
Item No.
|
Weight
|
Weave
|
Tread count
(yarns/in)
|
Tensile strength
(N/2.5cm)
|
Air permeability
|
finished
|
LOI(%)
|
(g/m2)
|
(oz/yd2)
|
warp
|
weft
|
cm3/cm2/s
|
CFM
|
FA301
|
780-830
|
22-25
|
Double twill
|
48x40
|
>2400
|
>2000
|
15-30
|
30-60
|
PTFE
|
>10
|
FI301
|
780-830
|
22-25
|
Double twill
|
48x40
|
>2400
|
>2000
|
15-30
|
30-60
|
PI
|
>10
|
FA311
|
830-900
|
25-28
|
Double twill
|
48x48
|
>2500
|
>2100
|
12-20
|
24-40
|
PTFE
|
>10
|
FB302
|
450-500
|
13.3-14.7
|
1/3 twill
|
44x24
|
>2000
|
>1200
|
20-36
|
40-72
|
PGS
|
>2
|
FC302
|
450-500
|
13.3-14.7
|
1/3 twill
|
44x24
|
>2000
|
>1200
|
20-36
|
40-72
|
AR
|
>7
|
FA303
|
340-380
|
10-11.2
|
1/3 twill
|
54x30
|
>1400
|
>800
|
22-35
|
44-70
|
PTFE
|
>10
|
FC303
|
340-380
|
10-11.2
|
1/3 twill
|
54x30
|
>1400
|
>800
|
22-35
|
44-70
|
AR
|
>7
|
FB322
|
530-560
|
15.6-16.6
|
1/3 twill
|
46x30
|
>2000
|
>1400
|
20-35
|
40-70
|
PGS
|
>2
|
FA404
|
920-970
|
27.28.5
|
Double twill
|
48x40
|
>2600
|
>2600
|
15-30
|
30-60
|
PTFE
|
>10
|
FD502
|
900-950
|
26.5-28
|
2/5 satin
|
54x46
|
>3000
|
>2400
|
15-25
|
30-50
|
PD
|
>7
|
FE201
|
600-650
|
17.7-19
|
2/5 satin
|
51x51
|
>2000
|
>2000
|
20-35
|
40-70
|
PG
|
>1.7
|
FE211
|
600-650
|
17.7-19
|
1/3 plain
|
54x46
|
>1900
|
>1900
|
20-35
|
70-70
|
PG
|
>1.7
|
PGS:PTFE,Graphite,silicone AR:acid-resistant PI:PTFE,Graphite,silicone abti-friction
PD:graphite and others PG:PTFE,graphite
|
