Grinding Mills Advantages: 1.Effective grinding effect. 2.Outstanding spring structure. 3.High capacity. 4.Low energy cost
1. The grinding mill has the effective grinding effect.
2. The mill has outstanding spring structure.
3. The grinding mills is high capacity.
4. Low energy consumption.
5. Convenient to adjust the fineness.
Structural characteristic and working principle

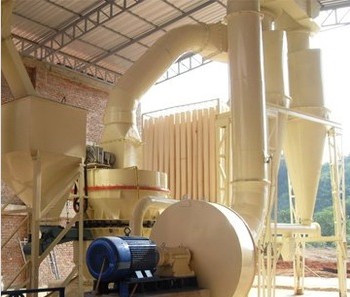

The whole system of the flour mill consists of main unit, deceleration machine, classifier, blower, hammer crusher, dustpan elevator, electro-magnetic vibrating feeder, impulse dust cleaner, piping device, cyclone collector device, classifier, high-pressure motor and muffler.
The main motor drives main axle and every layer rotating by reducer. Dail drives numbers of rollers rolling and rotating in the ring by pintles.
Big materials are crushed into smaller particles by hammer crusher. Then they are sent to store house by elevator. The electro-magnetic vibrating feeder send the materials evenly to the middle of the upper dial. Under the function of the eccentricity, the materials scatter to the side of the circle and fall into the ring to be pressed, crushed and milled into pieces by rollers. After the first crush, materials fall into the second and the third layer. The pumping of the high-pressure centrifugal blower put the outside air into the machine. The coarse powder will be brought into the classifier.
The rotating turbine in the collector makes the coarse particles fall back for regrinding. The fine particles will come into the cyclone collector with the airflow and discharged by the discharging valve on the bottom of the collector. They are the final products. The airflow with little dust will be discharged through blower and muffler after being purified by the cyclone collector.
Note: If there is any change of above specification, it is all according to the booklet with machine.
