Specifications
1.heat resistant masking polyimide tape
2.high temperature resistant
3.SGS&ISO 9001 certificate
4.goldfinger tape
Related Products:
Teflon Tape (heat-resistant)
Foam Tape
Polyimide Tape

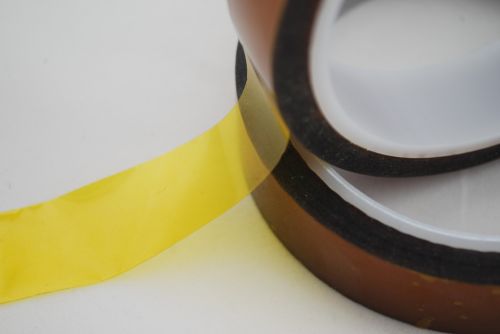

Polyimide tape, also known as Kapton tape, commonly known as gold finger,it is based on the material of polyimide film, using imported silicone pressure sensitive adhesive, has features of high and low temperature resistance, acid and alkali resistance, solvent resistance, electrical insulation level (H), radiation protection, etc. heat resistant adhesive tape
Specifications: heat resistant adhesive tape
material: |
polyimide tape |
Color: |
Golden |
Thickness(mm): |
0.03-0.12mm |
Width(mm): |
2-500mm |
Length(m): |
33 or 66m |
Insulation Rank: |
H |
Adhesion(N/25MM): |
6~6.5 N/25mm |
Temperature Resistance: |
280℃ |
Elongation(%): |
45-60 |
Breakdown voltage: |
4-7.5kv |
Peeling strength(N/25MM): |
4-8N/25mm |
Tensile strength(N/25MM): |
>115N/25mm |
Polyimide Tape Features: heat resistant adhesive tape
1, excellent dielectric properties, high mechanical strength, good dimensional stability, good heat resistance. polyimide tape
2, high temperature resistant, imported silicone pressure sensitive adhesive bond is strong, tear tape after leaving no residue. heat resistant adhesive tape
3, easy to use, with different width and thickness, can meet different application requirements.
4, the temporary working temperature 280 ℃, can be used as electrical insulation class H short-term can produce disposal under 310 ℃. heat resistant adhesive tape

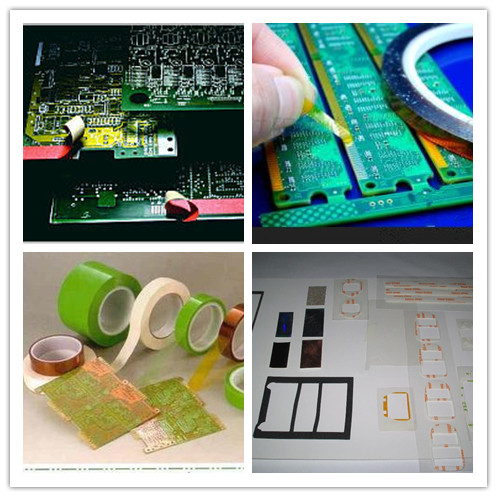

Polyimide Tape Application: heat resistant adhesive tape
1, polyimide tape widly used in industry of electronic electrician, circuit board manufacturing industry ,with high temperature resistance, high tensile strength, good chemical resistance, no residue, comply with RoHS environmental protection without halogen, etc
heat resistant adhesive tape
2, polyimide tape can be used in circuit board manufacturing industry electronic protection paste, especially suitable for SMT heat-resistant protection, electronic switch, PCB gold finger protection, electronic transformers, relays, etc. Suitable for all kinds of high temperature resistance and moisture protection of electronic components.
heat resistant adhesive tape
3 ,polyimide tape has low static and flame retardant feature, for high temperature surface reinforcing protection, metal materials, high temperature spray paint, sandblasting surface protection coating cover, threr is no residue leaving and easy to tear. polyimide tape
heat resistant adhesive tape
4, For higher requirement of H class motor and transformer coil insulation bandaging, coil end binding, measuring temperature resistance protection, capacitance and wire entanglement and other work in high temperature under the condition of insulation.
heat resistant adhesive tape
5. Polyimide tape is goldfinger tape, widely used in the industry of electronic electrician.
heat resistant adhesive tape
