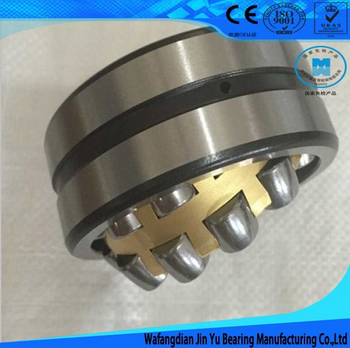

lazy susan bearing Spherical roller bearing 23218CA W33 hub wheel , teeth like ball bearings from China

lazy susan bearing Spherical roller bearing 23218CA W33 hub wheel , teeth like ball bearings from China
  • lazy susan bearing Spherical roller bearing 23218CA W33 hub wheel , teeth like ball bearings from China
  • lazy susan bearing Spherical roller bearing 23218CA W33 hub wheel , teeth like ball bearings from China
  • lazy susan bearing Spherical roller bearing 23218CA W33 hub wheel , teeth like ball bearings from China
Share to:

lazy susan bearing Spherical roller bearing 23218CA W33 hub wheel , teeth like ball bearings from China

Product Details

Parameter

Type : Roller
Structure : Spherical
Place of Origin : Liaoning, China (Mainland)
Number of Row : Double Row
Precision Rating : P0
Model Number : Spherical roller bearing 23218CA W33
Outside Diameter : 160 mm
Brand Name : WJY
weight : 4.82kg
Chamfer : black bright good visual effect
Authenticate : ISO9001
Guarantee : 1 year
Noise Level : Z Z1 Z2 Z3 Z4
Vibration : Zv1,Zv2 Zv3
Clearance : C0,C2,C3,C4,C5
Material : Nylon,Steel,Brass
Ring Material : Chrome,Carbon,Stainless Steel

Description

FOB Price:US $US $ 36 - 40 / Piece

Min.Order Quantity:1 Piece/Pieces

Supply Ability:9999 Piece/Pieces per Year

Port:Dalian

Payment Terms:D/P,T/T,Western Union

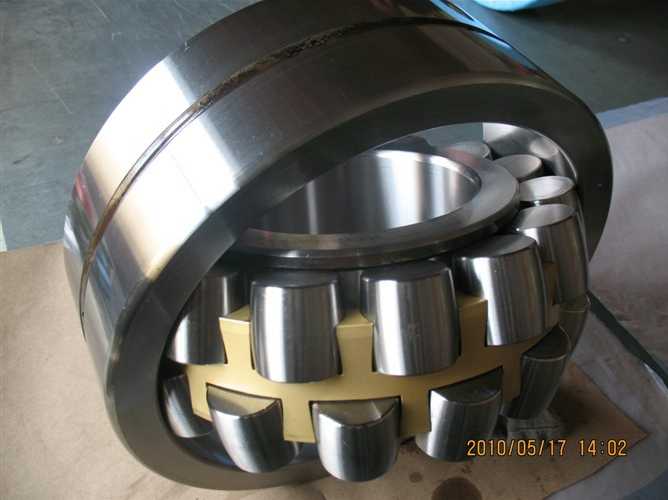

Spherical roller bearings have two raceways between the inner and spherical outer ring raceway ,assembly of a drum-shaped spherical roller bearings.
Outer ring raceway curvature center and bearing center are on the same line, therefore have the same self-aligning feature like the self-aligning ball bearing The axis, when deflection occurs , the shell can be automatically adjusted without increasing the burden bearing. Spherical roller bearings can bear radial load and axial load in two directions. Radial load capacity, is suitable for a heavy load . Inner diameter is tapered bore bearings can be installed directly. Or use the adapter sleeve, remove tube installed in the cylinder axis. Cage with pressed steel cage, forming polyamide cage and copper alloy machined cage.
Spherical roller bearings can bear higher radial loads, also can bear a certain degree of axial load. This kind of bearing outer ring raceway is spherical shape, so have the aligning property , when the axial force leaving the inner bend or tilt relative to the centerline of the centerline of the outer ring tilt does not exceed 1 ° ~ 2.5 °, the bearing can still work .
Spherical roller bearings can bear heavy load and impact load, widely used in metallurgy, mill, mining, petroleum, paper-making, cement, sugar and other industries.

Bearing

dxDxB

NO.

Dimensions

Weight





(Cr)

(Cor)

(kg)

23220CA/W33

100x180x60.3

400

570

6.58

23220MB/W33

100x180x60.3

400

570

6.58

23222CA/W33

110x200x69.8

490

720

10.1

23222CC/W33

110x200x69.8

490

720

9.95

23222MB/W33

110x200x69.8

490

720

10.1

23224CA/W33

120x215x76

535

940

12.1

23224CC/W33

120x215x76

535

940

11.8

23224MB/W33

120x215x76

535

940

12.1

23226CA/W33

130x230x80

607

1020

15.9

23226CC/W33

130x230x80

607

1020

15.6

23226MB/W33

130x230x80

607

1020

15.9

23228CA/W33

140x250x88

910

1365

19.7

23228CC/W33

140x250x88

910

1365

19.4



Company Profile

Wafangdian Jinyu Bearing Manufacturing CO.,LTD is located in northern suburb of Dalian city, the cradle of China bearing,. There are Shen-Da highway, Chang-Da railway, Dalian airport, so the traffic is very convenient, the economy is prosperous and the industrial base is potential..
Wafangdian Jinyu Bearing Manufacturing CO.,LTDis medium size bearing producer, which cover an area of 18000 square meters. Our company has 400 employees, including 10 engineers and technicians,one main plant (Wafangdian Jinyu Bearing Manufacturing CO.,LTD and two branch plants (Wafangdian Jintai Bearings Manufacturing CO.,LTD and Shengfeng Bearing Manufacturing CO.,LTD). Our products rang from 0-9 nine types to nonstandard bearing. We have our own designing institution .they are in charge of study nonstandard bearings and import bearings instead. Our company has very strong capability in technique and rich experience in production. The product is widely used for mines, metallurgy, rolling mills, electricity, paper making, seaport, ship, oil and chemical field. The products are sold throughout the country and USA, Canada, England, France, Germany, Ian, Pakistan, Kuwaiti etc countries and districts, and get good reputation among customers.
We have been awarded as Quality-trusted company of Wafangdian and contract-emphasizing of Dalian for a long time. In July 2004 we obtained international quality certification of ISO2001and ISO2008. Our company will continue to persist on strict management, technical innovation, quality of refinement, service in good faith as our motto, try our best to provide first-class products and best service to customers. We wish to cooperate honestly with customers and to develop together.
