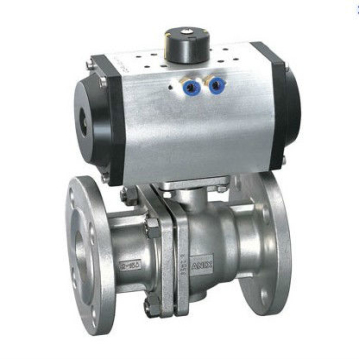

pneumatic ball valves stainless steel ball valve

pneumatic ball valves stainless steel ball valve
  • pneumatic ball valves stainless steel ball valve
Share to:

Min.Order Quantity:20 Piece/Pieces



Supply Ability:300 Piece/Pieces per Day



Payment Terms:L/C,T/T,Western Union,MoneyGram

Product Details

Parameter

Power: : Pneumatic
Media: : Water
Model Number: : BJ-02
Material: : Stainless Steel

Description

Specifications



pneumatic stainless stell ball valve
Blow-out Proof Stem
Anti-Static Device for Ball-Stem-Body




Ball valve /  pneumatic ball valves Stainess steel flanged ball valve



Specification



1 Flange dimensions to ANSI B16.5

2 Face to face dimensions to ANSI B16.10

3 Design and Manufacture in accordance with API 6D

4 Fire safe to API 607/API SPEC 6 FA & BS 67555 PART 2

5 Valve tested to API 598













Parts Material

No



Parts name

Material

Stainess Steel

Cast Steel

1

Body

A351 CF8

A216 WCB

2

Stud

A193 B8

A193 B7

3

Nut

A194 2H

A194 2H

4

Gasket

PTFE

PTFE

5

Valve cover

A351 CF8

A216 WCB

6

Ball

A812 F304

A812 F304

7

Seat

PTFE

PTFE

8

Stem

A182 F6a

A182 F6a

9

Packing

A182 F304

PTFE

10

Gland

WCB

WCB

11

Handle

A351 CF*

A216 WCB





Company Profile

Shanghai Bocica Valve Co., Ltd. was founded in the year of 2008, located in Jinshan Industrial Area, Shanghai. We cover an area of 34,000sqm, including factory structural area of 18,500sqm, with more than 150 staff members and 88 sets of various facilities, such as machining centers and CNC machines.

We have many years of experience in valve manufacturing and now we are developing fast and stably. Series of ball valves have won national patents. In 2001, our company acquired ISO9001 certificate (the current version is ISO2000), and now we are applying for API-6D and CE certificate. We mainly manufacture the valves according to ANSI, API, MSS, JIS, DIN, BS, NF and Chinese GB standards. Our main products include ball valve, gate valve, globe valve, check valve.
