Product Description
1.Prestressing concrete fence post making machine is our special developed products as results of our engineers research, with which 60% steel material will be saved compared with traditional revolving die method . Efficiency can be improved 3 to 5 times compared with conical die method, precast concrete post machine/fence post making machine are easy for operation and convenient for maintenance ,and the products from these machines are in good quality ,smooth appearance and accurate in size.

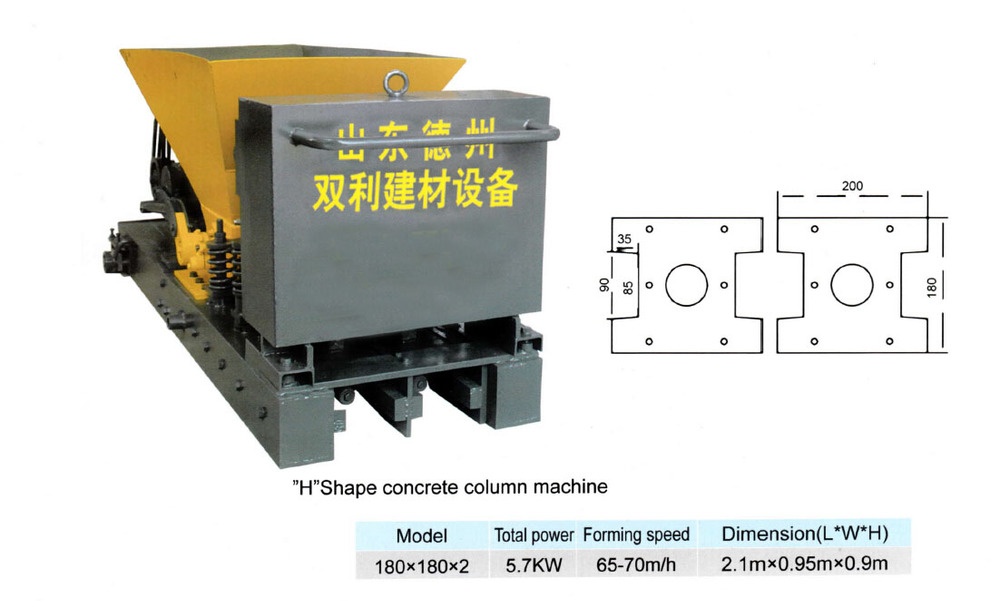

2.The machine is making the prestressed concrete column ,lintel and beam.
3.The machine is using slipformer and extruder technology.
4.The raw materials are cement, sand and Aggregate .
5.The machine can make different size of concrete lintel.
6. The prestressing system can prestress the steel wire.
Model
|
Dimension(mm)
|
Power(kw)
|
Voltage(v)
|
Speed(m/h)
|
Weight(t)
|
Pcs
|
80*100*4
|
2100*900*900
|
5.1
|
380
|
65-70m/h
|
1.2 t
|
4
|
80*120*4
|
2100*850*850
|
5.5
|
380
|
65-70m/h
|
1.5 t
|
4
|
100*100*4
|
2100*900*850
|
5.5
|
380
|
65-70m/h
|
1.5 t
|
4
|
120*120*4
|
2100*950*900
|
5.7
|
380
|
65-70m/h
|
2 t
|
4
|
180*200*2
(H Beam)
|
2250*850*850
|
5.5
|
380
|
65-70m/h
|
2 t
|
2
|
200*240*2
(H Beam)
|
2250*900*900
|
5.5
|
380
|
65-70m/h
|
2.5 t
|
2
|
Packaging & Shipping

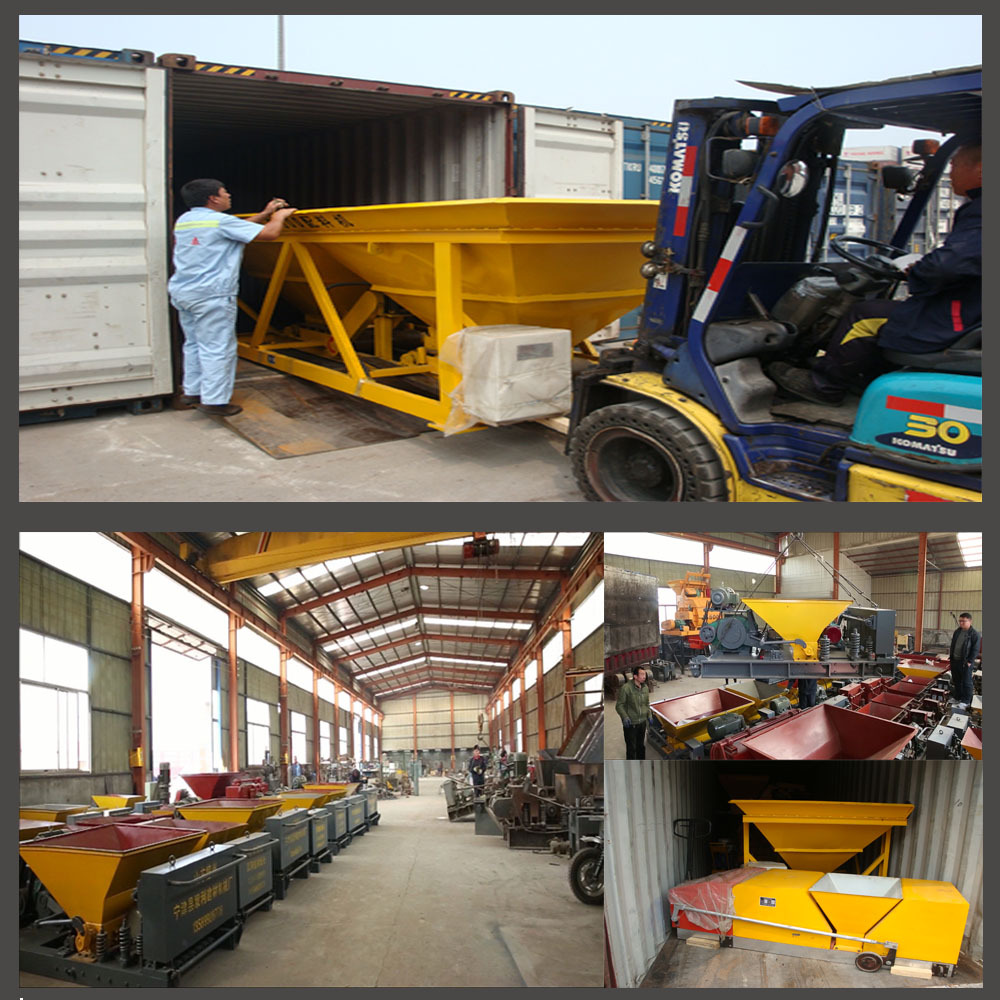

Prestressing concrete fence post making machine was packed in wooden case.
We will effect the shipment after we get deposit during one month.
Company Information

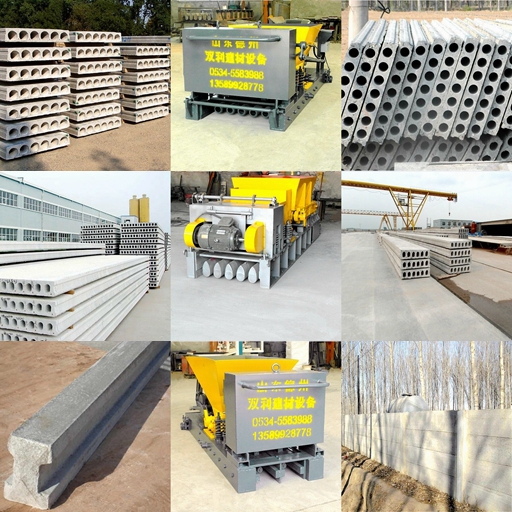

We have strong technical force and excellent workmanship. The Market Strategy is base on the rural market_oriented. We specialize in the production of precast prestressed concrete molding machine. The factory runs through a strict management system with improved detection methods and perfect quality assurance system. With the increasing effort on R&D ,We have successfully developed more than 100 models of precast molding machines, including Concrete hollow cored slab making machine, concrete lintel machine, concrete purline machine, concrete column making machine, lightweight wall panel machine, and concrete pipe making machine, etc. The thickness of the product can be varied from 30mm to 380mm, widest 1.2m, longest 18m.All our products can meet the country's large-scale construction projects and civil needs.
