BZP Series Platform Base Top Discharging Centrifuge Separator

BZP Series Platform Base Top Discharging Centrifuge Separator
  • BZP Series Platform Base Top Discharging Centrifuge Separator
Share to:

Platform Base Top Discharging Centrifuge Separator
1.Clean type centrifuge
2.Controled by electrical and mechanical

Product Details


How to Work:
Once the materials to be separated enter the fast-spinning basket, they will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solids cake reaches the holding capacity, feeding stops. Clean the solids cake, and then drain out the washing water. stop the machine. For SS, SB, PSB, PBZ series , the solids cake is discharged manually.

Apply to separating the suspended liquid contained particles, but also fibers, like plasters, bluestone, potassium chloride, borax, dyestuffs, pesticides, salts, gourmet powders, foodstuff additives, chemical flavors, antibiotics, vitamins, the metals like copper, zinc and aluminum, metal products, sludge and waste water treatment.


1.Well-designed structure leaves no place depositing dusts and makes the machine clean easily. The modules are designed smoothly and polished on the surface. The case, fixing parts and drums are made of stainless steel. With hinged enclosure cover, it is easy to clean the gap between the case and the drum.

2.The base and case are welded and joint together with high performance.

3.Platform base can lower the center of gravity and reducing the machine's occupation of space. The base can also be the operation platform.

4.Allocated with liquid amortisseur, simplifying the routine maintenance.

5.Hinged enclosure cover, feeding tube, washing tube, watching lens and lighting hole.Automatic online cleaning system cleans the internal wall of the case, the drum and liquid slot to meet the clean requirement in accordance with GMP standards

6.Wide range applications. No damage to the grains.It can be applied for separating the suspension, also for fibers. Inverter converter startup, smooth starting, adjustable relative centrifugal force.

7.Obturation structure with silicone rubber or fluoroelastomers obturators. It is of anti-explosion applied to poisonous, flammable and explosive environment.

8.Model BZP centrifuge has applied explosion-proof motor, which eliminates frictional dust which may occur by belt drive. In the meantime, since the motor is installed at the bottom of the machine, the centrifuge covers smaller area

Structure chart:

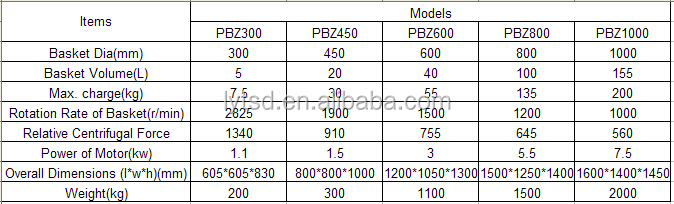

Technical parameter:
