China Supplier High Speed Abnormal Shape Chocolate Packing Machine

China Supplier High Speed Abnormal Shape Chocolate Packing Machine
  • China Supplier High Speed Abnormal Shape Chocolate Packing Machine
Share to:

FOB Price: US $ 40,000 - 80,000 / Set | Get Latest Price Min.Order Quantity: 1 Set/Sets Negotiation Supply Ability: 20 Set/Sets per Month Negotiation Port: Shanghai/Chengdu/Any port in China Payment Terms: L/C,D/A,D/P,T/T,Negotiation

Product Details

Description

Quick Details

  • Type: Multi-Function Packaging Machine
  • Condition: New
  • Function: Wrapping
  • Application: Food, Chocolate/Confectionery Packing
  • Packaging Type: Film, Foil
  • Packaging Material: Paper, Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V/380V
  • Power: 3
  • Place of Origin: Sichuan, China (Mainland)
  • Brand Name: WS
  • Model Number: WS-SBZB450S
  • Dimension(L*W*H): (L)3770X(W)670X(H)1450mm
  • Certification: TUV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Main Name: Abnormal Shape Chocolate Packing Machine
  • Packing Speed: 260-360 pics/min
  • Product Max Size: 80*50*35mm
  • Compressed Air: 0.6MPa
  • Special Function 1: Fully Automatic Program-controlled
  • Special Function 2: Paper Feeding Self-tracking and correction
  • Special Function 3: Self-protection for Abnormal Product
  • Special Function 4: Online Product Feeding Status Monitoring
  • Special Function 5: Online Wrapping Paper Status Monitoring

Packaging & Delivery

Packaging Details: Abnormal Shape Chocolate Packing Machine :
Wooden Crate Package apnd Standard International Package
Always Ensure Safe to You
Delivery Detail: 90 Days( Abnormal Shape Chocolate Packing Machine )



Company Information



Chengdu WealthRise Complete Mechanical Engineering Co.,LTD

Top 3 candy/chocolate packing machine manufacture in China,wholly foreign owned enterprise.

Full automatic Candy/ Chocolate Foil Wrapping Machine as our hot sales machine,more details,

please follow me!



Product Description



Application and Wrapping Speed of Latest Chocolate Foil  Packing Machine



 WS-SBZB450S Chocolate/Candy Foil Packing Machine is the fully automatic wrapping machine which

can be used for chocolates, pralines and pressed candy. Machines are suitable for small-to-medium sized

products with certain dimensions and shapes, wrapping in brushing style.

The maximum wrapping speed is 360 pics per minute, which can vary according to different product shapes

and packaging materials.

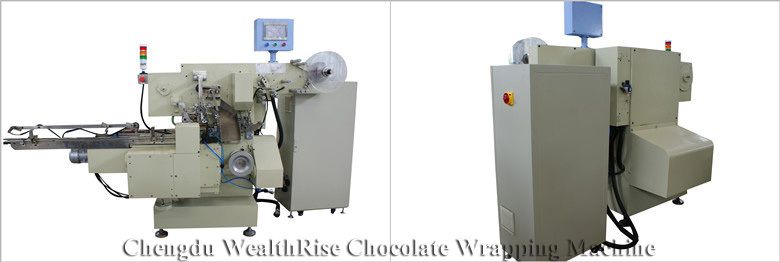

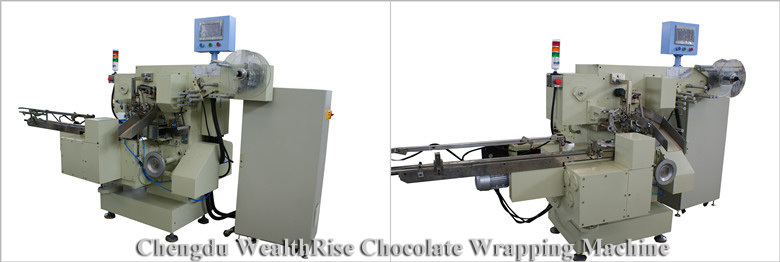

 Full Automatic Latest Candy/Chocolate Foil Packing Machine





Terms

Description

Note

Total Power

2.8 kW



Voltage

380 V 50 Hz 3-phases

according to your request

Compressed Air

0.6 MPa



Packing Product Dimension

Length 80 mm





Width 30 mm





Height 25 mm



 *: Dimension limits are NOT strict

As for other product dimensions or shapes, please check and confirm with us



Chocolate Model Show ( chocolate for foil)







 Unique Advantages Become our Magic Key



1.Full autoamtic program-controled with servo motor,highly stable and reliable

2.Flexible in color sensor setting,paper feeding self-tracking and correction during packing,providing

   a consistant packing style and a good product gurantee

3.Self-protection for abrandon products

4.Online product feeding statues monitoring-only feeding wrapping paper when product arrives desired

   position,which keeps paper consupmtion at an extremely low level

5.Online wrapping paper status monitoring -automatic pause when wrapping paper is running or break





Packaging & Shipping

  Wooden Crate Package apnd Standard International Package Always Ensure Safe to You



Company Profile

Chengdu WealthRise Complete Mechanical Engineering Co., Ltd. is a solely foreign-owned enterprise which was founded in 2004. Our company dedicates to provide customers with professional solutions in confectionery manufacturing and packing, which includes design, research, development, production, sale and service.
