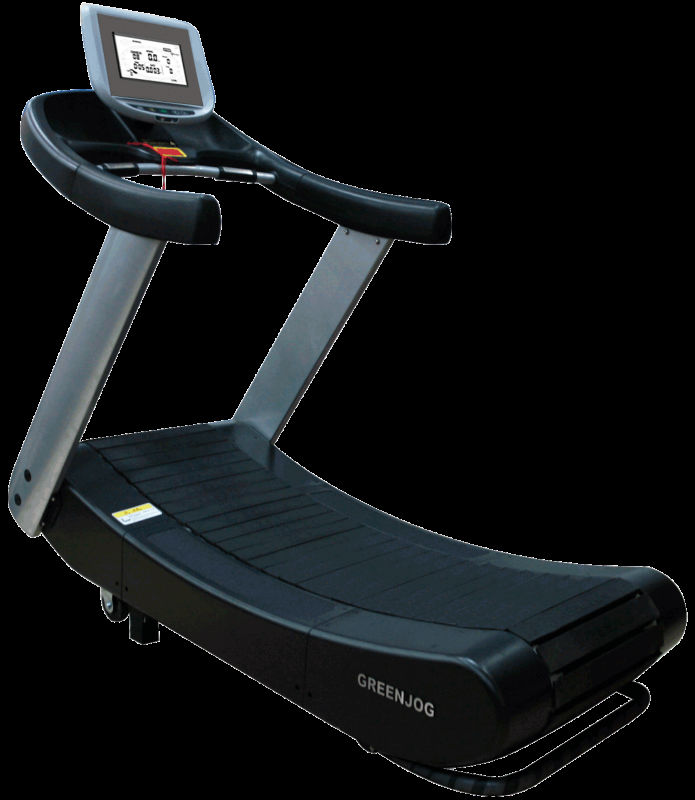

HR510 crawler self-generating electric treadmill

HR510 crawler self-generating electric treadmill
  • HR510 crawler self-generating electric treadmill
Share to:

Place of Origin: Hubei, China (Mainland) Brand Name: Greenjog Model Number: HR520 display: 10.1 LCD

Product Details


Packaging & Delivery

Packaging Details: Carton packaging
Delivery Detail: ONE MONTH AFTER T/T

Specifications running need of exterior power supply

1.Product Introduction

 Crawler self-generating electric treadmill is a new concept green treadmill developed by our company independently, which adopts an elastic rubber arc running deck, crawler running belt lamination technology, self-generating electric control technology and bearing drive technology. Using gravity to start, accelerate and decelerate and controlling the speed freely, the product overcomes the impact to the knee due to the failure of footsteps to keep up with the running belt in passive running, radically puts an end to the traditional electric “passive” running way and realizes “active” running in the real sense. The arc running surface, crawler elastic rubber running belt and active running design reduce the impact during movement and effectively protect the runner’s knees, while the bearing drive system reduces movement wear and lowers the maintenance costs.

The self-generating electric control system carried by the treadmill will convert the mechanical energy generated during treadmill running into electrical energy to realize the panel display, parameter setting, movement mode selection, multimedia entertainment, speed limit control, emergency stop and other functions, and display the time, distance, number of steps, movement speed, maximum speed limit, heart rate, calories and other parameters in a real-time manner; the battery will be charged automatically during movement to achieve electric energy storage.

Featuring rich entertainment function design, the product can be connected to the U disk externally to read and play the audio, video and image files, receive TV and AV signal externally to play television and video, or be wirelessly connected to phones with Bluetooth to play the music in the phones and make and answer calls. Standard USB interface is provided to charge your phone and MP3.

The self-generating eletric design makes the product independent from external energy, saves the energy, reduces the environmental use requirements, and largely lowers costs, which is in line with the energy-saving and environment-friendly development trend of fitness equipment.




2.  Comparative advantage



The traditional electric treadmill

Crawler self-generating electric treadmill


belt shape

flat face

cambered surface




Whole soles


shock absorption

elastic cushion\nickel-clad

\Rubber strip\coil spring

elastic rubber


belt damage

sliding friction between running belt bearing surface and users feet

sliding friction between running belt and users feet,

Running belt and bearing surface rolling friction


life expectancy

1~2 years \15000km

More than 5 years


drive mode

electrical drive

gravity action


running form




exercising effect

below ground activities

above ground activities


speed adjustment

key control

freedom to adjust by user


knee’s impact

a.gravity running impact

b.bearing surface impact

c.passive running impact

gravity running impact



sudden stoppage

no sudden stoppage


energy consumption

(1 year )

>5000KWH (6hour / day)



other expenses

decorate cost\Circuit of increase

capacity\Circuit costs




220V power supply places

No special requirements




3.      Functions and Features

l         Made with patent technology and multiple pioneering advanced technologies;

l         Crawler arc running belt allows the imitation of real running feelings, effectively reduces movement impact and protects the knee;

l         The movement speed can be self-regulated by the runner’s foothold and controlled freely;

l         The maximum movement speed is controllable and the maximum speed limit can be adjusted in a real-time manner;

l         Cord-type emergency stop switch can be triggered by pressing or pulling the cord;

l         Membrane keyboard + LCD touch screen for virtual key operation, which is convenient and reliable;

l         10.1’ LCD screen, simple and intuitive man-machine interface;

l         Display the time, distance, number of steps, heart rate, calories, real-time speed, maximum speed limit and other parameters as well as the target progress in a real-time manner;

l         18 kinds of movement programs under 6 categories including target mode, professional racing mode, long-distance running mode, mountain mode, progressive mode and target compliance test can be selected;

l         Three movement interfaces, namely runway, curve and multimedia;

l         There are multiple entertainment functions, including video, music, images, TV, Bluetooth and AV;

l         Total movement mileage accumulation function;

l         Unique movement performance chart function;

l         Standard USB interface, which can be connected to removable storage devices externally to display the video, music and images, and charge mobile phones and MP3, etc.

l         Standard headphone jack;

l         Bluetooth function, which can display the music in the phone and make and receive calls;

l         Contact heart rate and wireless heart rate measurement;

l         Support metric and imperial units;

l         Automatic battery charging and protection and status indication;

l         Automatic battery power saving function, startup of the treadmill in movement, and startup and shutdown of the treadmill by pressing only one key;

l         Part for external battery charging.

l         Support Chinese and English languages.

l         Meter can be adjusted to the users’ best visual angle.



4.      Specifications



TFT color touch screen

Running area


Speed limit range


Speed limit adjustment interval:

0.1~2, can be set

Maximum load


Standard USB interface

5V±5%, ≤1000mA



Connect to the adapter power externally

DC18V±10%, ≥2A

Working temperature


Floor space (L*W*H)


Working humidity

Less than 80%

Whole weight

Net weight of 166 kg
