Long time using gasket producing and sticking machine

Long time using gasket producing and sticking machine
  • Long time using gasket producing and sticking machine
  • Long time using gasket producing and sticking machine
  • Long time using gasket producing and sticking machine
  • Long time using gasket producing and sticking machine
  • Long time using gasket producing and sticking machine
Share to:

The technology we used is from Germany. We can provide you top level machines with competitive price and perfect services. We are integrated with design, R&D, production, marketing, and after-sales services.

Product Details


Quick Details

  • Place of Origin: Liaoning, China (Mainland)
  • Brand Name: Jinjie
  • Model Number: DM-402 Long time using gasket producing and sticking machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: FIPFG formed in place foam gasket manufacturing
  • Strip width: Micro type: 2-8mm; Standard type: 5-30mm
  • Technology: Mixing head designed and manufactured in Germany
  • Dosing system: Barmag metering pump
  • Control system: Taiwan Syntec CNC system with hand controller
  • Driving system: Panasonic servo motor
  • Cleaning system: Water rinsing, built-in the mixing head.
  • Working speed: 0-12m/s, usually be 6-10m/s
  • Raw material: Polyurethane, PU, Silicon, other liquid material
  • Certifications: CE, ISO, RoHS, SGS, CQC, etc.

Packaging & Delivery

Packaging Details: Protection material, plastic, carton, container.
Delivery Detail: 40~45days

Long time using gasket producing and sticking machine

Product Description

 2 components FIPFG automatic PU foam sealing gasket making manufacturing machine

This machine can mix two kinds of raw material together and pour to pre-set position, groove, mould, or the flat surface of workpiece etc directly. Through chemical reaction, the liquid raw materials form elastic sealing strip in seconds. There is no joint or cut point, so comparing with other kind of sealing its effect is much better and with longer using life. And, during the forming process, the sealing strip surface become very smooth and without any crack, so its sealing effect is perfect. And, because it can stick on the workpiece naturally and tightly, no gluing worker is needed, huge cost is saved from labor and time, etc.

Foam sealing equipment is used more and more in sealing fields like controlling cabinets, lighting, motor vehicle, machining industry, etc. It is leak proof, oil proof, water proof, damping, noise proof, and sealing, etc. It is in accordance with certifications like UL/CE, MIL-STD-167, EN50298, and so on.


Equipment Construction:




Raw Material Reaction Principle:


Standard type equipment specifications:


Technical Specifications   Some Other details
Mechanical Arm  6*3 m   Technology From Germany
Workbench  2.4*0.9 m   Mixing Head From Germany
Material Bench  1.2*0.85 m   Operation From Taiwan Syntec, CNC system
Working Stroke  2.4*1.2*0.25 m   Hand Controller From Taiwan Syntec
Gluing Width  5-30 mm   Motor Panasonic Servo Motor
Gluing Precision  0.01 mm   Metering Pump From Germany, Barmag
Working Speed  0-12 m/min   Cleaning Water Risining
Max Speed  30 m/min   Material Barrels Double walled stainless steel, control temperature automatically
Repeat Positioning Accuracy  +/- 0.03 mm   Control Mode 8 axis linkage,
Dosing  0.5-5 g/s   Working Mode 2D or 3D
Filling Accuracy  0.1 g/s   Main Color Silver gray, refer to picture, or black, red, ect. under discussing.
Mixing Speed  0-3000 rad/min   Custom-made, OEM, ODM OK, no problem.
Mixing Ratio  1:10~10:1 Adjustable   Certifications CE, RoHS, ISO, etc.

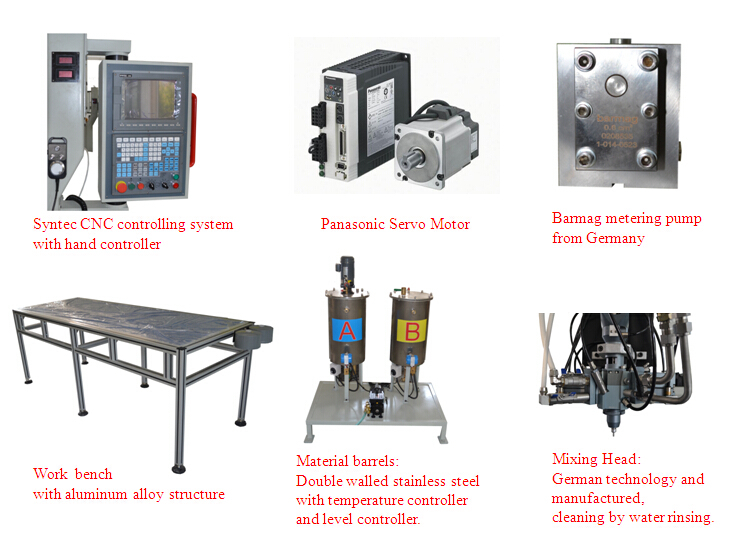

Main Parts

1. Mixing Head:

Water Rinsing & Modular Design

2- / 3- component mixing head with high-pressure water rinsing system and dynamic mixing system, for use with liquid to high-viscous polymer reaction materials for gasketing, gluing and potting.

2. Operation System:

CNC System from SYNTEC, 180 degree rotating freely, Multi-language selection, Storing huge frequently-used information, Plus USB interface and G-code program, Manual operation is for choice also, Can be operated simply.

3. Raw Material Barrels:

Double walled stainless steel, control temperature automatically.

4. Work bench:

Aluminum alloy, strong and durable.

5. Dosing System:

Barmag metering pump, Panasonic servo motor, Microscale gluing is workable.

6. Hand Controller:

SYNTEC made, easily control, response quick and steady.

7. Driving system:

Panasonic servo motor, work steady, long using life, can keep working for dozens of hours.

 Our Equipment Advantage:


  Our Company, Jinjie Some other companies
Technology From German, top level, mature and stable R&D in China, Chinese level,
in developing
Mixing Head Made in Germany
(Germany manufacturing and processing technology, and quality)
Made in China,
Chinese quality.
Working Mode 2D or 3D for choice
(could process special 3D patterns)
2D only
Control Mode 8 axis linkage as a whole
(1X+1Y+1Z+2Mixing+2Reserved, Could adjust & change to 3-components equipment or adding auto material feeding system according to needed.)
3 axis + other control systems,
need matching
Gluing Width
(Standard type)
5-30mm 8-30mm
Gluing Width
(Micro- type)
2-8mm 3-8mm
Repeat Positioning Accuracy  +/-0.03mm  +/-0.05mm
Dosing 0.5~5g/s 1~4g/s
working time
can keep working for a whole day
(there is a special coating on the mixing head to prevent residual)
Frequently temporarily stop
for cleaning residual
Processing capability
of factory
machine shop belongs to ourselves, Jinjie Processed by another company,
then assembled in another place.
Offer  Very competitive Higher



Some Certifications, Patents, Honors we have:

CE, ISO, SGS, RoHS, CQC, etc.


Jinjie FIPFG gasket making manufacturing sealing equipment are widely used in fields like cabinets, vehicle, electronic, appliances, lighting, filter, and battery etc.

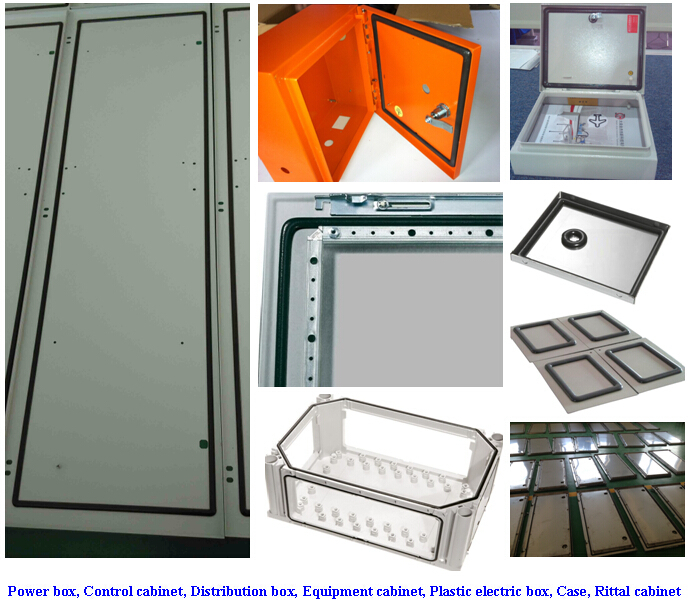

Electronic & Appliances: Gluing and sealing on the surfaces of controller cabinets, power cabinet, electric boxes, doors, or other surfaces, to prevent dust and moisture.

Lighting: Through foaming sealing to form sealing rings on lightings for industry, furniture, house, road, indoor or outside, etc.

Small containers & Packing case: sealing rings used on the cover edge of them with a lot of quantity to finish the sealing process efficiently and automatically.

Appliances: sealing strips are needed for kitchenware’s top, back and inside, or filter of cleaner, and other appliances like water tank, cleaner, cooker, range hood, etc.

Vehicle or car: Sealing strips used on the car body, pedal, steering wheel stand, fireproof metal plate, and other areas like car window, vent, lighting cover, air conditioner, cylinder, fuel tank and so on.

Filter: like those used on oil industry, air conditioner, building, refrigerator, etc.




Some other accessory settings:

Auto tansmtter, 3-components gasket machine, auto material feeding system, air entraining equipment, safety guard rail, robot, custom-made machines or equipments, etc.

Company Profile

Jinjie group is a professional manufacturer and supplier of machines for form in place foam gasket manufacturing and other polyurethane automatic equipment system & sealing systems. The technology we used is from Germany. We can provide you top level machines with competitive price and perfect services. We are integrated with design, R&D, production, marketing, and after-sales services. The company is located in Dalian, one of the most important port cities in the north of China.

We have excellent R&D team: A group of professionals majored in chemical engineering, machinery, automatic control, and etc. We are versatile and powerful in machining: One specialized factory for machining, where custom-made equipment can be produced quickly. The core technology of product is top-level: it is from German, and the components are from world-renowned suppliers. Our service system is perfect: huge distribution network, professional technology support, excellent after-sales service group and so on.

Our Company Philosophy is: Honesty, Innovation, Safety and Serving. We adhere to honesty, keep improvement and innovation and achieve perfect quality. Through our high technology, professional experience, dedicated attitude, unremitting efforts, top quality product and excellent service, we have established Win-Win cooperation and development mode with our customers all over the world. We have received many patents and certifications including ISO 9001, ISO14001, CE, SGS, RoHS, CQC, and so on.

Main product: Foam Sealing Equipment, Microscale Sealing Machine, Cabinet Door Sealing Machine, Thermally Insulating Aluminum Profiles Gluing Equipment, etc. They are widely used in sealing areas including for cabinet, lighting, motor vehicle, house, packaging, filter, aluminum profiles, etc.
