N54 magnet permanent

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

Brief description

Speciation: 1. Grade: N33-N52,33M-48M,33H-48H,30SH-45SH,30UH-38UH and 30EH-35EH; 2. Maximum Working temperature: 60°C to 200°C

Detailed description

Neodymium Magnet/  N54 magnet permanent







Sintered Ndfeb Magnet

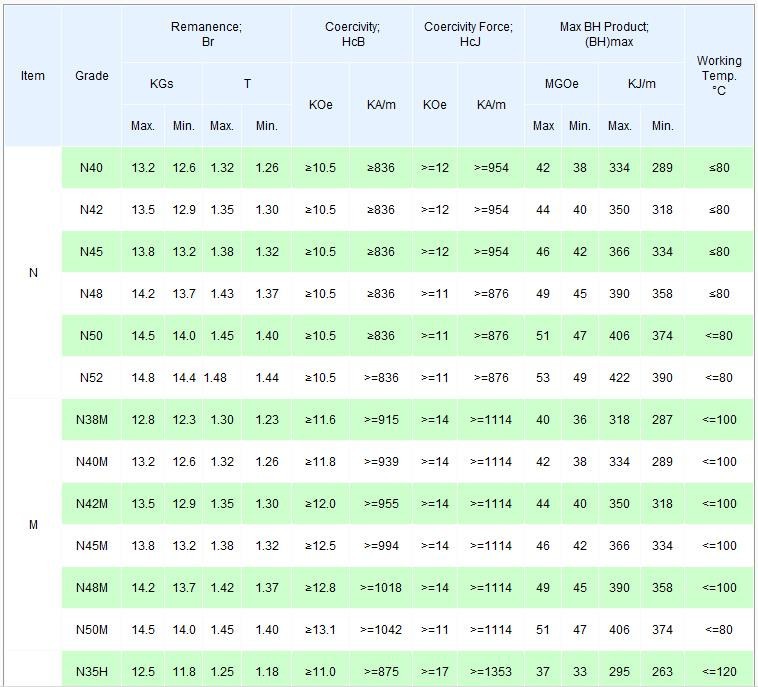

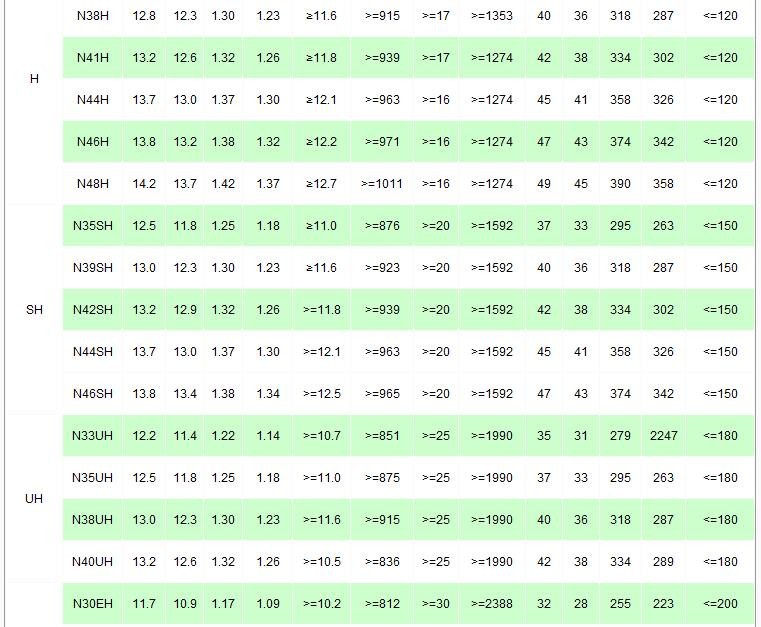

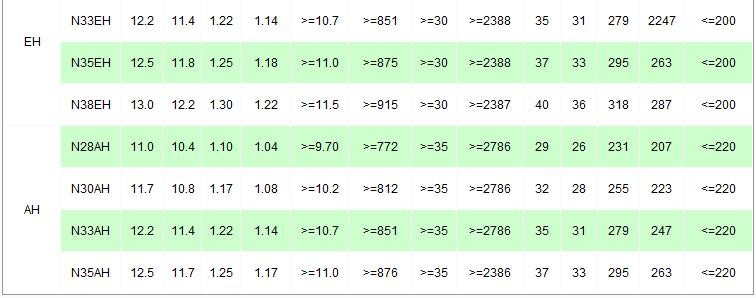

1. Grade: N33-N52,33M-48M,33H-48H,30SH-45SH,30UH-38UH and 30EH-35EH;
2. Maximum Working temperature: 60°C to 200°C
3. Shape: Disc,Ball, Ring, Block, Bar ,Triangle,Segment/tile/Arc , Cylinder

              Trapezoid, bowl,cone, pyramid shape,fan-shape,irregular shape custom
4. Application: Computer, automobile, electric machinary, electro-sound devices, automatic control, magnetic force mechanism, microwave communication, petrochemical industry, medical apparatus and equipment

 * Higher unit magnetic properties than other magnet
* Lower temperature coefficient of magnetic properties than ceramic but higher than SmCo type rare earth magnet
Sintered NdFeB magnet
Bonded NdFeB magnet
Surface Treatment Method:
 Metallic :Zinc, Nickel, Nickel+Nickel, Copper+Nickel, Nickel+Copper+Nickel, Gold, Sliver
Organic :Epoxy, Nickel+Epoxy coating
Temporary :Surface Passivation



Professional Manufacturer of Magnets

Chengdu Amoeba Magnetic Co., Ltd. (AMOEBA) is a factory established in 1990 and has assets of RMB250,000,000. Our company covers an area of 16,440 square meters, and has more than 2,000 employees, 8 producing factories, 2 branch companies and 1 professional testing center. We have passed ISO9001:2000, QS900 quality system certification, and TS16949 quality control system.

We mainly produce sintered and bonded NdFeB, Smco, Alnico and Ferrite. The annual capacity of our company is-- sintered NdFeB: 5,000 tons, Bonded NdFeB: 800 tons, Alnico magnet: 500 tons, Ferrite: 10000 tons, and 4500 tons of magnetic core. We can make high energy products up to N55, N52, N48H, N46SH, N45, 42M, 42H, etc. We have got the license to export to America. We have the technique team to develop the mould following customers' requests. Our R&D Center also could design different magnetic applications according to customers' applications.

Branch factory in Chongqing is professional in soft ferrite magnets: Mn-Zn, Ni-Cu-Zn, Mg-Zn, Nizn series, and the magnet elements such as E, U, G, RM, PQ, LP using these material, over 1000 different sizes, the material for solf ferrite including RM2.3KD, RM2.4KD, RM10K, BF, etc. In these materials, the RM2.3KD, RM2.4KD has the same standard with PC40, PC44, which is the material of TDK Company of Japan. And the capacity is 2,000 tons per year,

More than 80% of Amoeba magnetic products have been exported to the USA, Europe and Southeast Asia with the annual exporting of over 80,000,000 CNY. With the efficient and fast e-commerce services and matching systems of serial production, quality assurance and after-sales service, we will provide the products with the best services for the clients.

Our factory is located in Sichuan Province, one of the professional magnetic material manufacture bases in China. Based on convenient and complete matching services for magnetic material in Sichuan, our factory could supply top quality products with the best price and lead time to the customers all over the world!
