SC50 Research Plan Semi APO fluorescence biological microscope

SC50 Research Plan Semi APO fluorescence biological microscope
  • SC50 Research Plan Semi APO fluorescence biological microscope
  • SC50 Research Plan Semi APO fluorescence biological microscope
  • SC50 Research Plan Semi APO fluorescence biological microscope
  • SC50 Research Plan Semi APO fluorescence biological microscope
  • SC50 Research Plan Semi APO fluorescence biological microscope
Share to:

Theory: Biological Microscope Drawtube: Trinocular Eyepiece: PL10X, 25mm, diopter adjustable Objective: Plan semi-apochromatic fluorescent objective nosepiece: BF sextuple nosepiece with DIC slot Reflected Epi-fluorescent: 100W mercury lamp Transmitted illumination: 12V 100W halogen lamp Fluorescent filter: UV, B, G (V option) stage: 187x166mm double layer mechanical stage Application: Biology, pathology laboratory, hospital, University certificate: ISO9001, 14001, 13458, IECQ warranty: 2 year

Product Details

Parameter

Model Number : SC50
Brand Name : SCMMC
Place of Origin : Sichuan, China (Mainland)

Description

Packaging & Delivery

Packaging Details: Sponge + inner box + carton box(For single pack)
Delivery Detail: 20 days

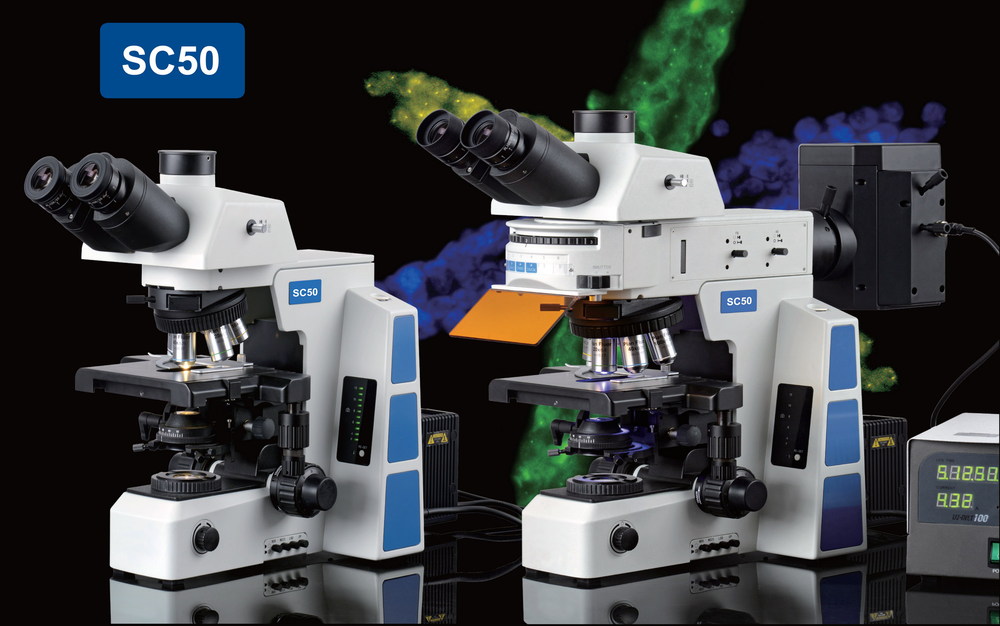

SC50 Research Semi APO fluorescence microscope







After years of research and development in optical technology field, SC50 biological microscope is designed to present a safe, comfortable and efficiency observation experience for users. With perfectly performed structure, high-definition optical image and simple operating system, SC50 realizes professional analysis, and meets all the needs of research in scientific, medical and other fields.













Product Description



Feature

Ultra Wide Field Eyepiece 10X/25mm

Infinite Semi-APO fluorescence objective 4x-10x-20x-40x-100x

Modular design improve system compatibility

100W halogen and Mercury lamp    Extra brightness and brightness display

High precise large stage 187x166mm Travel 80x55mm

Nosepiece with DIC slot









Specification

Item

SPECIFICATION

SC50

SC50FL

Optical system

Infinity color corrected optical system

S

S

Eyepiece

High-eyepoint Plan eyepeiece PL10X/25mm,diopter adjustable

SS

SS

High-eyepoint Plan eyepeiece PL10X/25mm, diopter adjustable, with micrometer



High-eyepoint Plan eyepeiece PL10X/26.5mm, diopter adjustable



Observe head

30°inclined, inverted image,infinity gemel trinocular head with interpupillary distance 50~76mm,three split ratio 0:100;20:80;100:0

S

S

30°inclined, erect image,infinity gemel trinocular head with interpupillary distance 50-76mm,split ratio 100:0 or 0:100



Objective

Plan semi-apochromatic fluorescent objective 4X/0.13(infinity),WD=18.5mm

S

S

Plan semi-apochromatic fluorescent objective 10X/0.30(infinity),WD=10.6mm

S

S

Plan semi-apochromatic fluorescent objective 20X/0.50(infinity),WD=2.33mm

S

S

Plan semi-apochromatic fluorescent objective 40X/0.75(infinity),WD=0.6mm

S

S

Plan semi-apochromatic fluorescent objective 100X/1.30(infinity),WD=0.21mm

S

S

Nosepiece

BF septuple nosepiece(with socket for DIC)



BF sextuple nosepiece(with socket for DIC)

S

S

BF quintuple nosepiece(with socket for DIC)



Microscope frame RX50F2

(For transmission biological microscope) Coaxial focus system with upper limited and tension adjustment, coarse adjustment range: 25mm, fine adjustment precision: 0.001mm. 100-240V built-in wideband voltage transformer, adopt digital dimming, with the function of light set and reset, built-in filter(LBD,ND6,ND25)

S



Microscope frame RX50F

(For transmission fluorescent microscope) Coaxial focus system with upper limited and tension adjustment, coarse adjustment range: 25mm, fine adjustment precision: 0.001mm. 100-240V built-in wideband voltage transformer, adopt digital dimming, with the function of light set and reset, built-in filter(LBD,ND6,ND25)



S

Epi-fluorescent device

Six position disc reflection fluorescent Koehler illumination with IRIS diaphragm and aperture diaphragm(all center adjustable). Socket for filter inserter and polarizer device, with the fluorescent light shield in the front.



S

100W mercury lamp house



S

Digital power control box of mercury lamp, voltage 90-240V



S

Imported 100W DC mercury bulb(OSRAM)



S

Fluorescence filter(UV)



S

Fluorescence filter(V)



Fluorescence filter(B)



S

Fluorescence filter(G)



S

Filter

Attenuation plate(transmittance 25%)



Attenuation plate(transmittance 50%)



S

Transmitted light







12V100W halogen lamp house (centered)

S

S

12V/100W halogen bulb(Philips 7724)

SS

SS

75W Xenon lamphouse,(for reflection), the center of filament can be adjusted.



75W Xenon lamp(OSRAM)



Power control box of Xenon lamp.



Stage

187x166mm double layer mechanical stage, moving range 80x55mm,Precision 0.1mm,bidirectional transmission, left and right position handle for option. Tension of the torque is adjustable.

S

S

Condenser

Swing-out achromatic condenser (NA 0.9)

S

S

Universal condenser




0.5X CTV,C-mount, focusable




0.65X CTV,0.65X CTV,




Center eyepiece(ø30)




Mercury bulb centered objective



S



High precision micrometer, 0.01mm



CCD camera

SONY 2/3" 1.4M ICX285AQ COLOR CCD,thermoelectric cooling camera, frame rate 15fps,progressive scanning



Software

Professinal software for fluoresence observation




Allen key(For M4)

S

S



Allen key(For M5)



S

Packing

Sponge + inner box + carton box(For single pack)

S

S





Detailed instruction

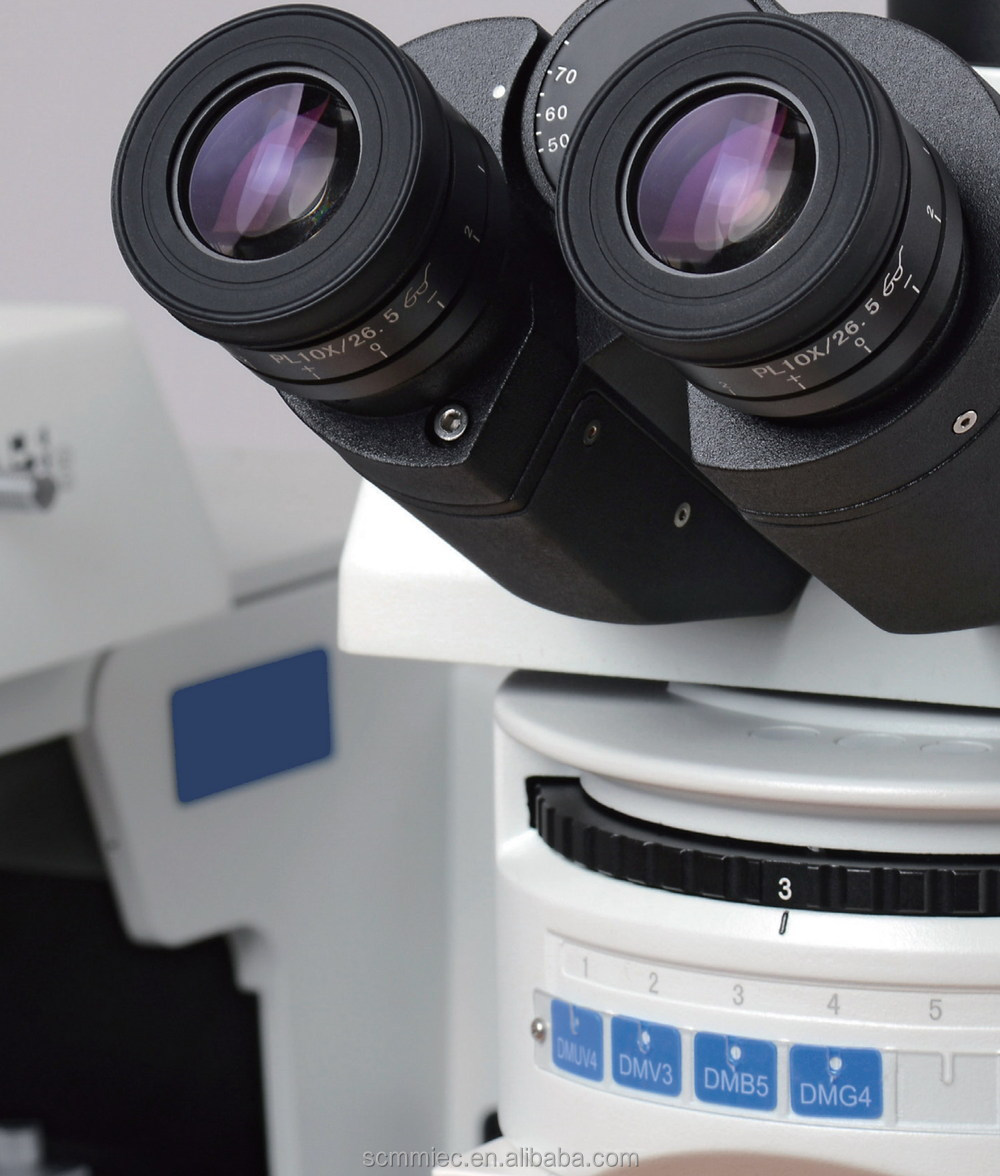

Viewing head with multi-splitting ratio

SC50 viewing head is designed of multiple options for splitting ratio. with wide beam imaging system, 26.5mm super wide filed of view is available.



Trinocular head with inverted image, splitting ratio Binocular: Trinocular=100:0 or 20:80 or 0:100. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time.



Trinocular head with erect image, splitting ratio Binocular:Trinocular= 100:0 or 0:100. The moving direction of samples is as the same as observed.





High eye-point ultra wide field plan eyepieces

Breaking through 22mm conventional field of view, reaching to 25mm and 26.5mm,

much smoother and wider field of view, is helpful to improve the work efficiency.

Locating pin on eyepiece inserts into the eyepiece tube, fixing the eyepiece for easy focusing.

Larger adjustable range of diopter from -8 to +5, meets more demands of different users.

Eyepiece cup can be turn up to avoid external stray light. Spectacle-wearers

should turn down the cup to protect both spectacles and eyepieces.

Model

Magnification

Field Number (F.N.)

Diopter Adjustment

Reticle

High eyepoint extra wide field plan eyepiece

10x

25

-5 ~ +5

_

High eyepoint extra wide field plan eyepiece

10x

26.5

-8 ~ +5

_

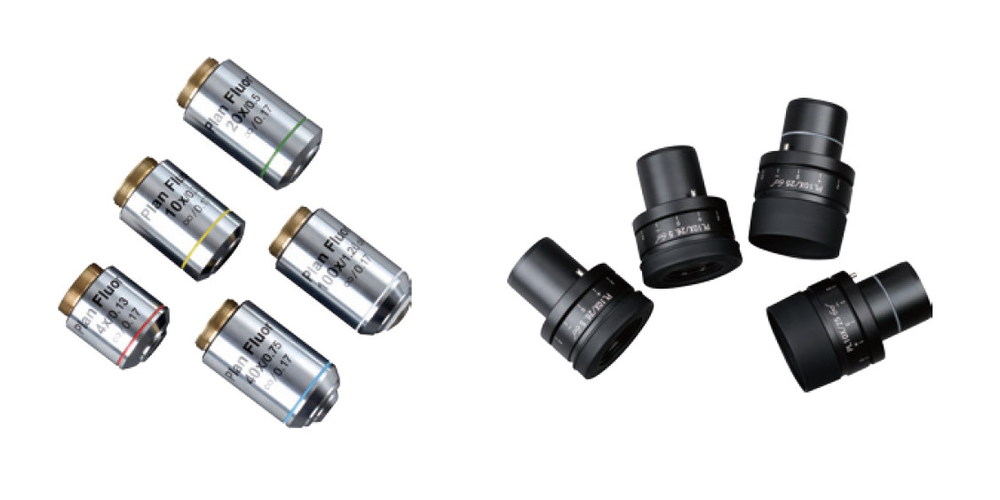

Professional plan fluorite objectives

PLAN-FLUOR series infinity plan semi-apochromatic objectives, is the best choice for fluorescence observation. Adopting crystal optics materials, perfectly corrects all kinds of chromatic aberrations. Large numerical aperture design presents high resolution, high contrast micro-images. In fluorescence observation, the image is clear and bright while the background is pure black, prominent for ultraviolet fluorescence.

Model

Magnification

Numerical Aperture

Workding distance

CoverGlass thickness

Oil

Spring

Plan Semi-Apochromatic Fluorescence objective

4x

0.13

16.43

0.17



10x

0.3

8.13

0.17



20x

0.5

2.03

0.17



40x

0.75

0.74

0.17



Spring

100x

1.28

0.18

0.17

Oil

Spring
