concrete paddle mixer

concrete paddle mixer
  • concrete paddle mixer
Share to:

FOB Price: US $ 26,000 - 75,000 / Unit | Get Latest Price Min.Order Quantity: 1 Unit/Units Supply Ability: 3 Set/Sets per Week Port: As order Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,O/A

Product Details


Quick Details

  • Condition: New
  • Place of Origin: Sichuan, China (Mainland)
  • Brand Name: Jin Rui (JR) concrete paddle mixer
  • Model Number: JS1500 concrete paddle mixer
  • Motor Power: 2*30 kw
  • Mixing Power: 2*30 kw
  • Charging Capacity: 2400 L
  • Reclaiming capacity: 1500 L
  • Speed of Mixing Drum: 26.75 r/min
  • Water Supply Mode: Closed conduit, spraying
  • Working Cycle Period: 40 s
  • Discharge Way: Hydraulic pressure door
  • Outline Dimension: 2900*3000*2150 mm
  • Theoretical Producing Capacity: 90 m³/h
  • Lubrication Oil Pump Motor Power: 0.09 kw
  • Hydraulic System Motor Power: 2.2 kw
  • Electromagnetism Valve Power Supply: DC 24
  • No. of Mixing Arm: 12 pieces
  • Aggregate's Max.Diameter(Detritus): 60mm
  • Aggregate's Max.Diameter(Pebble): 80 mm
  • Transportation Dimensions(L*W*H): 2900*2320*2150 mm
  • Weight: 6500 kg

Packaging & Delivery

Packaging Details: 1.Wire cables are used for fastening the machine on the trailer or inside the container.
2.Cork wood are placed infront or behind the machine to protect it.
3.Plastic film is covered on the machine as a rain-roof.
4.Crane is used during the whole course.
Delivery Detail: Around 40 days or according to client's requirements


1.Professional team.
2.Perfect quality.
3.Perfect service idea.
4.Competitive price.
5.Best manufacturer in Southwest China.

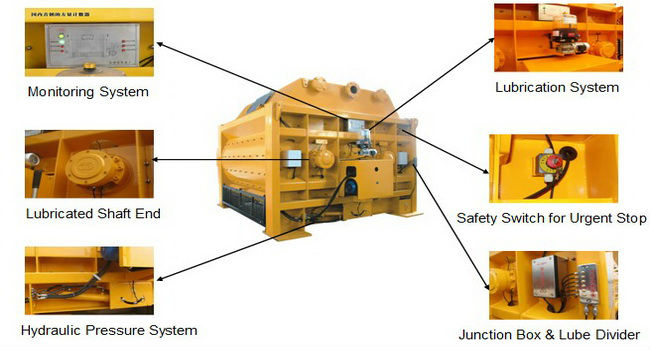

Performance Advantages:

  1. Shaft end sealing adopts pressure difference and multi-heterodyne sealing technology to extend shaft end's service life.
  2. National patented taper mixing arm which can easily disassembled.
  3. National patented monitoring system to control every part of mixer, such as hydraulic pump, gearbox's oil temperature, oil level, which helps user see its condition directly and clearly. In this way, the machine's service life can be extended substantially.
  4. Advanced hydraulic pressure system is adopted to open and close the discharging door. Under the situation of sudden power failure, the manual pump can be used to open the discharging valve for emergency discharge to avoid agglomeration.
  5. Lubrication system to make the mixer service a long life.
  6. Security protection device to keep the safety of maintenance stuff.
  7. Water spraying by multiple tube and circuit system.

Different Models:

                       Model  JS1250  JS1500  JS2000  JS3000  JS4000  JS4500
Theoretical Producing Capacity   (m³/h)    75    90    120    180    240    270





Twin-shaft Mixer (one angle of view):


Twin-shaft Mixer ( another angle of view):


Twin-shaft Mixer ( three view drawing):

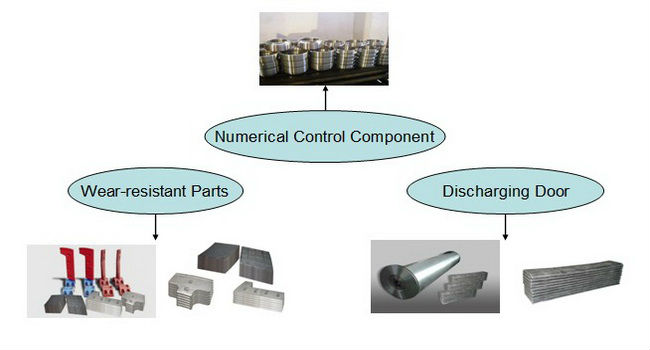

Self-made Components:

National Patent:







Reconditioning & Water-spraying Test:


Loading & Transportation:



Applicative Industries:


Apply to Produce Special Concrete:

Our Advantages:

1. Trade directly with factory who has over 20 years' history.

2. Professional team.
     Perfect quality.
     Perfect service idea.
3. Competitive price.
4. Best manufacturer in Southwest China.

5. We accept O/A, and all kinds of payment & trade terms.


Related Keywords:

concrete mixer, cement mixer, concrete mixing plant,  concrete batching plant, concrete pump.

Company Profile

Chengdu Jin Rui Construction & Engineering Machinery Co., Ltd., engaged in developing and producing whole sets of concrete weighing, mixing and conveying equipment, is an integrated enterprise with large scale, complete product varieties and wide service range.

Founded in 1991, our company, with headquarters located in Chengdu, Sichuan Province, covers an area of more than 30,000 square meters, with a construction area of more than 20,000 square meters. We possess 200-odd sets of various large-sized and medium-sized mechanical processing equipment and checkout test sets.

In order to guarantee excellent product performance, catch up with and surpass the international advanced level, and meet the needs of customers from at home and abroad to the maximum extent possible, Jin Rui has always paid attention to strengthening the technical force, today, our company boasts 50-odd senior and medium-grade technical personnel and a team of skillful employees. Our company has set up a complete quality management system and has passed ISO9001:2000 Quality Management System Authentication, meanwhile, we carry out the production fully according to the ISO14001 Environmental Protection Certification, utilize the energy sources and resources efficiently, which guarantee excellent product quality from design to production. Jin Rui people, who are always engaged in developing products of high reliability and optimum performance price ratio, have created several practical patent technologies, and have won favorable comments from the users. For improving the product quality of large-scale mixers and abrasion-proof fittings, our company has invested millions in importing large-scale precision processing equipment which is rare in the same industry.

Through hard working of Jin Rui people, our products have occupied the middle and high-end markets of whole set equipment of concrete weighing, mixing and conveying. Our products are popular throughout the country and are widely used in large and middle scale engineering projects, such as hydro-power, railway, highroad, airport and skyscraper. Also they are exported to many countries and areas, such as Southeast Asia, Western Asia, Africa and East Europe, winning extensive acclaim.

Rich enterprise culture leads to superior product quality, Jin Rui people hold the developing philosophy of establishing first-class enterprise and producing precision construction machinery, insist on the striving aim of "first-class at home and well known abroad", carry out the administrative policy of "keep improving in quality management, be elaborate in scientific research & development, be considerate in after-sales service". Jin Rui people are now taking firm steps toward the goal of developing a domestic first-class and international competitive enterprise.
