637nm red laser 1000mW

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • Place of Origin
    Jilin, China (Mainland)
  • Model Number
    OEM-D-637
  • Brand Name
    CNI
  • color
    red
  • output power
    500mW-1000mW
  • Operating mode
    CW
  • Polarization direction
    Horizontal/Vertical
  • Expected lifetime (hours)
    10000
  • Warranty
    1 year

Brief description

Diode red laser at 637nm is made features of round spot, long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, laser lighting show, etc.

Detailed description



Packaging & Delivery

Packaging Details: vaccum anti-static
Delivery Detail: 1 week



 OEM-D-637 637nm  red laser 1000mW



APPLICATION:





Diode red laser at 637nm is made features of round spot, long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, laser lighting show, etc.





SPECIFICATIONS:



Wavelength (nm)

637±5

Output power (mW)

>500, 600, …, 1000

Operating mode

CW

Power stability (rms, over 4 hours)

<1%, <3%, <5%

Warm-up time (minutes)

<5

Beam divergence, half angle (mrad)

<0.5

Beam diameter at the aperture (mm)

3.5×4 (1/e2)/ 3×3.5 (FWHM)

Polarization direction

Horizontal/Vertical

Beam height from base plate (mm)

45/68.2 (with heat sink)

28.5(without heat sink)

Operating temperature (℃)

10-35 (with heat sink)

25+/-3 (without heat sink)

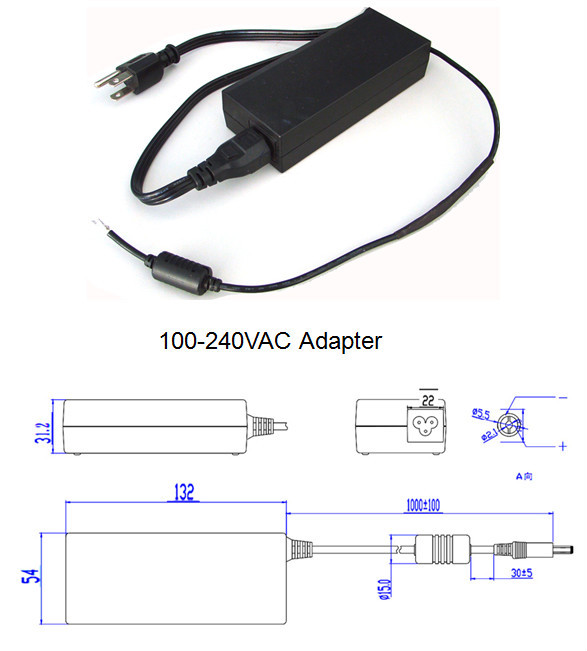

Power supply (90-264VAC or 12VDC&7A)

PSU-H-LED/PSU-H-FDA/PSU-D-OEM-H

Modulation option

TTL/Analog 1Hz-5KHz, 1Hz-10KHz, 1Hz-30KHz, and TTL on/off

Expected lifetime (hours)

10000

Warranty

1 year

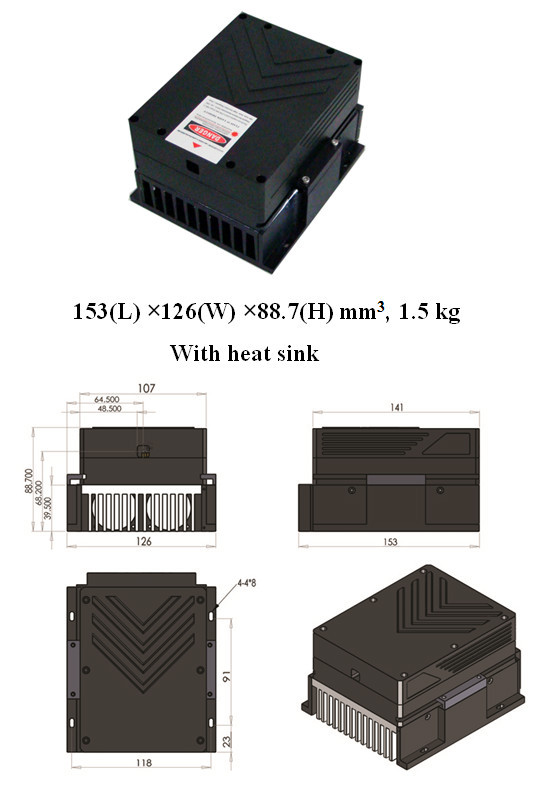

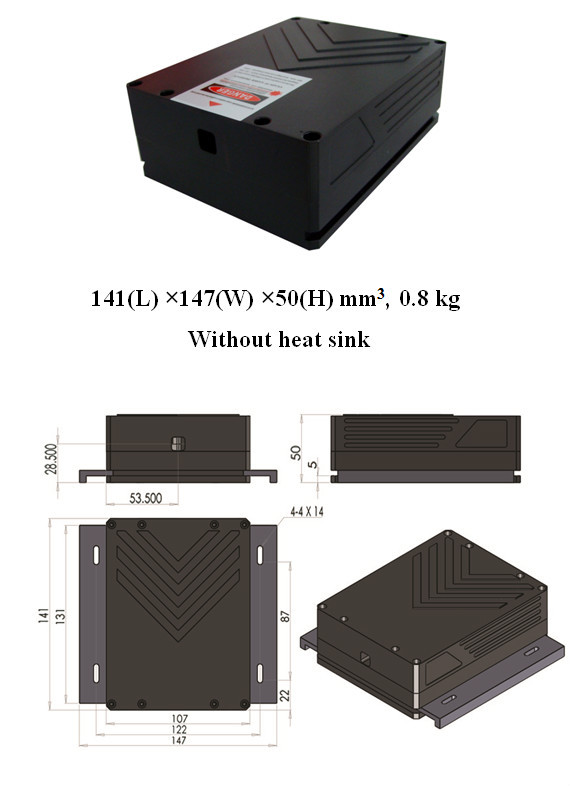

                                                                                    Laser Head

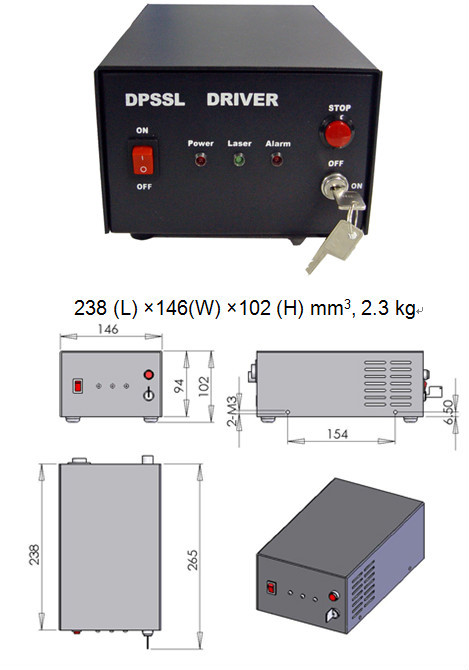

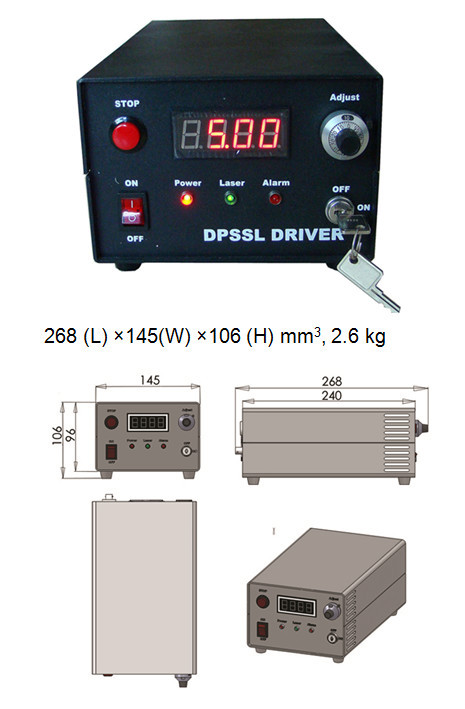

                                                                       PSU-H-LED Power supply







                                                                       PSU-H-FDA Power supply

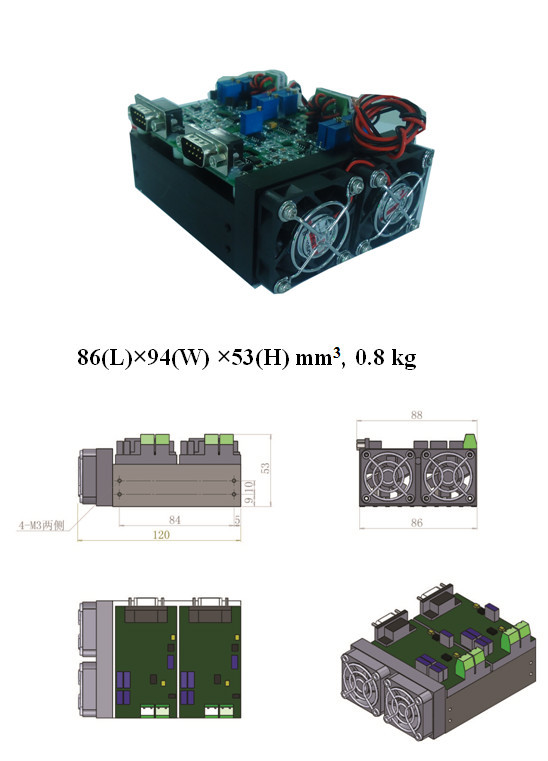

                                            PSU-D-OEM-H Power supply







Changchun New Industries Optoelectronics Technology Co., Ltd. (shorted as CNI), founded in 1996, is one of the largest manufacturers and suppliers of diode pumped all-solid-state laser (DPSSL) products in China. CNI produces CW, modulated and Q-switched laser modules at different wavelength, including UV, visible, and infrared series. Our laser products are widely used for industrial instrumentation applications in holography, biomedical field, fluorescence, reprographic field, laser trapping, interferometry, semiconductor inspection, laser show, and material processing. In addition, CNI has the capability of laser device design, optical coating, device fabrication, component assembly and system integration. CNI is also ISO9001, FDA, CE, RoHS and JQA certified.

CNI aims to provide the highest quality laser products backed by the best customer services in the industry. Our unique advantage in the laser technology marketplace is our ability to offer competitive prices while providing custom-tailored services. Whatever your laser product needs are, we have technicians, sales elites, and other experienced staff members standing by to assist you with all aspects of your projects.

Our excellent customer service team is there to help customers find the perfect product for any application, to provide prompt shipment, and to offer long-term customer support to guide customers through the use and operation of our laser products after the initial purchase. CNI is dedicated to continually enlarging our knowledge and experience in order to deliver innovative products and expertise and improve our customers' technologies.
