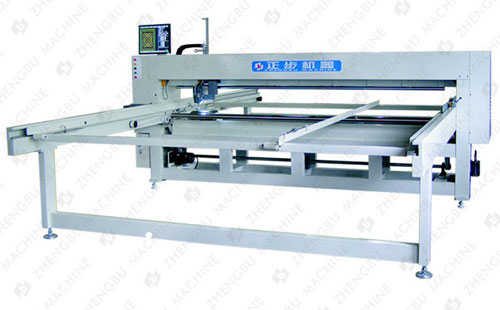

HFJ-26F-2 Computerized Quilting Machine is sewing equipments for producing all kinds of bedding products. The sewing speed of them is very fast and the pattern is beautiful and refine.
Quilt Size: : 2.6m×2.8m
Needle Drop Size: : 2.4m×2.6m
Machine Needle: : SINGER / SCHMETZ MR5 18~21#
Sewing-thick: : 1200g/m2
Sewing Speed : : 500~2200SPM
Stitch Length: : 2~7mm
Dimensions(L×W×H): : 5.0m×3.6m×1.4m
Power: : AC 220V, 50Hz, 1.5Kw
Weight: : 1800Kg
HFJ-26F-2 computerized quilting machine, is sewing equipments for producing all kinds of bedding products. The sewing speed of them is very fast and the pattern is beautiful and refine. Overall arrangement of the F series is reasonable, and it insists on the way to combine innovation with advanced technology from abroad and home, let good jumping-off point, top grade and lead the advanced level in domestic districts as their aims. They are designed elaborately and improved again and again, nowadays, they have arrive at the most advance level in congeneric products.
O Adopt exact spline on main shaft to drive, and the linear guide orbit device are used to move sewing head, this way not only enhance precision of moving, but also reduce noises.
O Use industrial control system to keep the machine run reliably, main shaft is driven by inverter, movement of X axis and Y axis by step motor driver.
O Set latest industrial control mainboard, enable to use USB-disk start while other disks in computer can not work, with function of running and furbishing controlling system.
O Capable of copying pattern and other files from USB-disk, and enable to use USB-disk plug and play.
O It’s convenient to copy or delete pattern files by pattern management function.
O With function of pattern viewing and rotating or mirroring pattern, capable of reading patterns of variety forms.
O Capable of counting output, and reboot to zero.
O Both forward and backward modes for retreat quilting, overlap stitch distance can be treated specially, and the stitch length can be changed.
O Trace seeking function makes needle quickly located in its position.
O Display quilting status at any time and prompt operation.
O Two quilting methods: forward and backward, and offer press buttons like forward, backward and needle thread etc.
O Convenient in defining and revising frame range and pattern size with setting and modifying functions.
O Offset function makes it available to join separated patterns accurately.
O Accompanied by change of defining pattern range and space, pattern size scales automatically.
O Use hydro-oiling concentrative sets for supplying oil to sewing-head and machine pedestal. It’s convenient, brief and very credible.
O Supply two sets of pressing-foot device to sewing-head for your option in vary conditions. It’s very easy to change them.
O Single head, single needle, double-line locked style, big rotating shuttle.
O Power waste less than 1Kw.
O Self-detect breaking thread function, needle stays at upper position at pause time and machine stop working while thread breakage automatically.
O Testing system function, can detect the machine working status quickly, it used for repairing machine.
O Main shaft self-detect function effectively avoid the accident of breaking quilt, with protection function against exceeding in limit range.
O Return to original point automatically or manually, it will reduce unnecessary stops.
