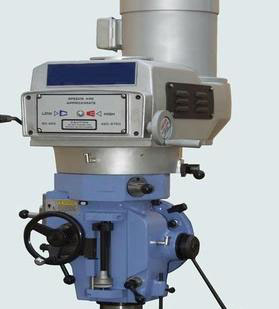

JNJH 5HP No-scale Variable Speed Milling Head

JNJH 5HP No-scale Variable Speed Milling Head
  • JNJH 5HP No-scale Variable Speed Milling Head
Share to:

1.forging, quenching and tempering 2.40 chrome alloy steel 3.strong cutting strength 4.P5-bearing paired Please contact me:wangxun124@163.com

Product Details

Description

 Characteristics:
1.  Milling head Spindle is made of 40 chrome alloy steel.    To ensure intensity of spindle, steel and dimension stability, the production use forging, quenching and tempering.
2.  Machine head equips spindle sleeve combination with aP P5-bearing paired and ensure strong cutting strength and high accuracy. Precision of Spindle roundness controlled within 0.003 millimeter.

  Item
Parameter
  Spindle Travel
127mm
  Spindle Feeds Range
0.04, 0.08, 0.15mm
  Spindle Speed
50-3750rpm
  Spindle Nose Type
NT40
  Drive Motor
5HP
  Net Weight
128.5Kgs
