1.The machine is of excellent configuration with wide working range and small area requirement. Head swivel angles are 90°left/right and 45°front/back. Ram not only is movable in front and back direction but also can be rotated 360°horizontally to greatly extend the machine’s working range.
2.The machine body is made of SC250 Casting with good rigidity and reliability. Spindle is made of Chrome Molybdenum Steel, tempering and carburizing heat treated. Spindle is assembled with precision Ball Bearing that provides wide cutting rang and high precision.
3. X, Y and Z axes slideways are laminated with wear resistant material, Turcite-B for easy operation, minimum wear out and long durability.
4.Working Table and Slideways are treated with inductive surface hardening and precision ground for maximum wear resistance. Equipped with manual oil lubrication system for concentrative lubrication on Working Table and knee.
5. R8, NT30, NT40 Spindle Tapers are available.

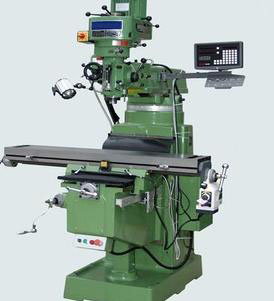

M3 Milling Machine
Item
|
Parameter
|
Working table area
|
254×1270mm
|
Three Aspects Travel (X,Y,Z)
|
870×380×360mm
|
Spindle Travel
|
127mm
|
Spindle Mobile Feeds Speed
|
0.04,0.08,0.15mm
|
Spindle Taper Type
|
R8 or NT30
|
Spindle Speed
|
60-4200rpm
|
Spindle Motor
|
3HP
|
Net Weight
|
Jiangnan Jiahua Import & Export Co. Ltd, is a holding company of Jiangnan Industrial Group(JIG). It is mainly engaged in the sales of self-made products such as new energy equipment (CNG cylinder,LPG cylinder with brand name Jiangnan "Silver Arrow"), CNC machines with brand name Jiangnan"Miraro",milling machine and turret-type milling head with brand name Jiangnan "Silver Arrow"and etc .
Basic Information
-
Business Type:
-
Main Products:
-
Location:
Zhixiao Building, Jiangnan Avenue, Nanzhushan Town, Yuhu District, Xiangtan, Hunan, China (Mainland)
-
Total Employees:
-
Year Established:
2005
