FOB Price:US $ 2 - 1,000 / Set
Min.Order Quantity:1 Set/Sets
Supply Ability:10000 Set/Sets per Month
Payment Terms:L/C,T/T
Quick Details
- Standard or Nonstandard: Standard
- Structure: Gate
- Pressure: Medium Pressure
- Power: Manual
- Material: Casting
- Temperature of Media: Medium Temperature
- Media: Acid
- Port Size: DN15~DN900
- Place of Origin: China (Mainland)
- Model Number: Z41W
- Sealing Surface Configuration: Flexible Double Wedge
- Bonnet Connection Form: Bolted Bonnet, OS&Y
- Stem Thread Position: Rising Stem
- External Connection Form: RF Flange
- Open Type: Handwheel/Automatic Control Valve
Packaging & Delivery
| Packaging Details: |
plastic bag,carton,plywood cases |
| Delivery Detail: |
15-40 days after confirm the order |
Specifications

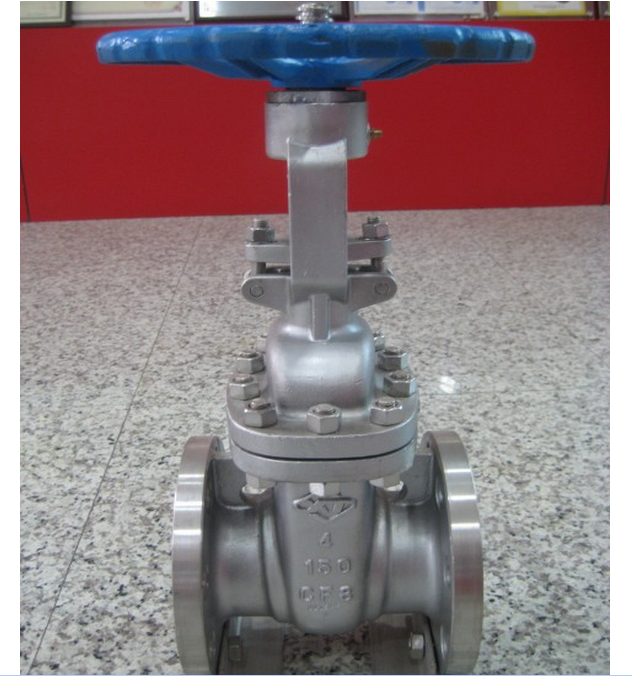

API Rising Stem Gate Valve
Function description:
Gate valve is a valve that the valve plate moves along the vertical direction in the pipeline.
Advantages of gate valve:
1.Small fluid resistance
2.The torque for opening and closing is small, so it is easy to open and close.
3.The medium flowing direction is not restricted, and it doesn’t disturb flowing and reducethe pressure of pipeline.
4. Short length structure
5. Good sealing performance
6. Simple shape, good casting process, widely used
API 598 Test Standard Flange connection cast steel gate valve manufacturer
1). Size: 15A - 600A
2). Material: SCS13, SCS14, SCS16, 304, 316, WCB
3). Class: 150LB,300LB,600LB,900LB,1500LB
4). Suitable medium: water, oil, air and some corrosive liquid
5). Temperature range: -20°C- 425°C
6). Design and Manufacture: JIS B2073; B2083
7). Face-to-face: JIS B2002
8). Flange dimension: JIS B2212; B2214
9). Inspection & Test: JIS B2003
|
Logo
|
XT/OEM
|
|
Suitable medium
|
Water, oil, air and some corrosive liquid
|
|
MOQ
|
1 Piece
|
|
Packing
|
Plastic bag, carton, plywood cases
|
|
Term of delivery
|
FOB, CIF, CNF, Customer request available
|
|
Port
|
NINGBO, SHANGHAI, Customer request available
|
|
Delivery time
|
15-40 days after confirm order
|
CASTING AND VALVE MANUFACTURE FLOW DIAGRAM
