- Packaging Details:Plastic bags to pack them or as per your requirements
- Delivery Time:10~30 days depending on order quantity
One word brief introduction:Cantilever rack is simple, well-engineered solution for storage of length and heavy items that are typically difficult to store. It is practical for storage of products that are inordinately long and must be stockpiled horizontally such as bars, sheet metal, lumber, rounds, extrusions, angles, tubing and much more.
Cantilever rack features

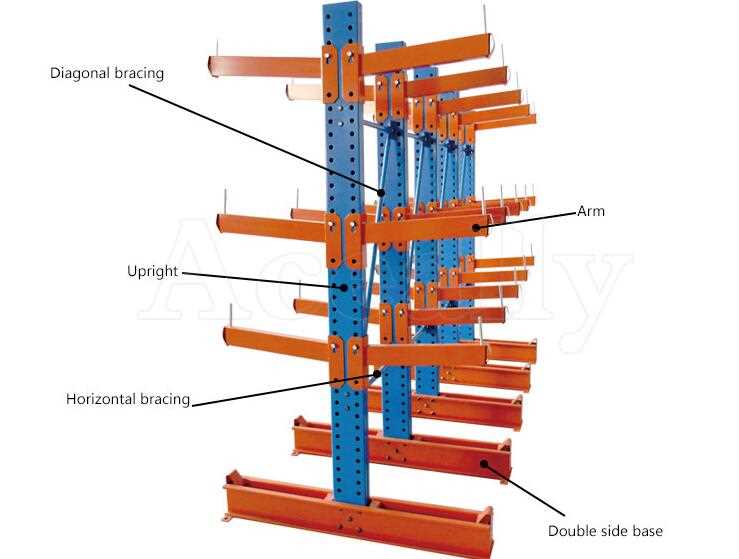

• All welded single or double-sided columns come complete with base.
• Tapered columns eliminate rack deflection into the aisles.
• Tapered design ensures maximum strength where it is most required, at the base of the column and the root of the arm.
• Tapered arm prevents deflection below a horizontal level.
• Arms easily adjust to any height on 3 inch centers.
• System allows for easy access to produce without costly skids, pallets or fork entry devices.
• One piece, all welded vertical brace panel for easy assembly.
Cantilever rack Advantages:
Improve safety.
Maximize storage space.
Handle large items faster.
Set up bespoke storage to suits your needs.
Safe and orderly storage of long or large products.
Maximum utilisation of horizontal space.
Good for both indoor and outdoor use
The length of the shelf and the distance between the profiles can be adjusted depending on the load
Every system is designed and manufactured according to the client’s precise needs
The uprights, feet and arms are made up of IPE euro profiles
The most recent software technologies are used to ensure an efficient design
The cantilever system is designed and manufactured according with current European standards, set by FEM
Quality management is according with EN ISO 9001:2000 implemented and certified by Tuv Rhineland.
Contact your local expert for more information.

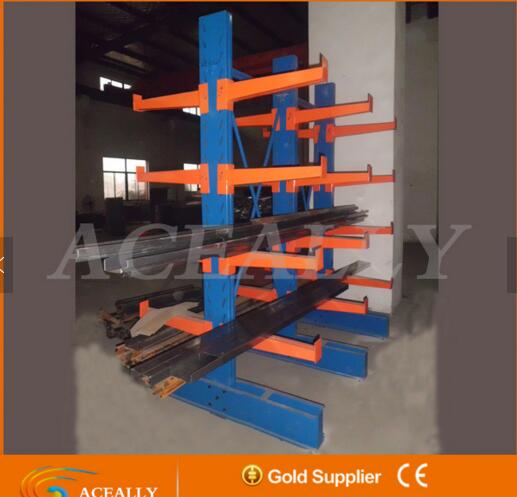

Steel pipe storage cantilever rack Loading capacity: 500kg~1000kg for each lever
Applications: Cantilever racking is ideal for storing long, irregular and mixed loads, heavy items such as wood boards, tubes,cars, building materials and coils.
Relevant details of steel pipe storage cantilever rack :
Height of Cantilever racks column up to 12 meters
Available Cantilever arms from 500 Kg to 3tn of loading support.
Available cantilever arms from 500mm up to 2,500mm of length.
Cantilever rack with adjustable arms each 100mm in height.
Hot dip galvanized finishing or polyester coating for exterior installations.
Cantilever racks designed for the use of stackers, counterbalance trucks, side loading trucks and cranes.
In order to improve the use of space and reduce the working walkway size, the cantilever racks are usually used with guide rail for side loading trucks.
Continuous storage systems for cantilever racks, which is the perfect solution in dimension for those non homogenous loading units.
Please give us your needed product information for a quick quotation, thanks!
*Size of your mezzanine rack .
*Length,width,depth of mezzanine rack .
*Height of mezzanine rack system.
*How many layers you need.
*Loading capacity of each layer.
*The color you want.
