Extracting and Dispensing for Tea and Juice

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brief description

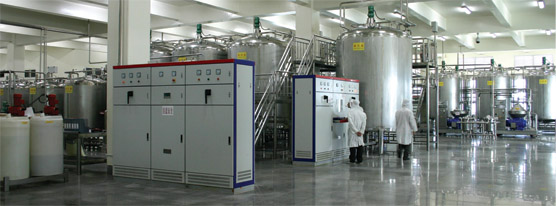

Extracting and Dispensing for Tea and Juice can offer you turn-key project including extracting, sugar melting, blending, ect, with strong technical support from our factory and relative industry from home and abroad.

Detailed description

1 Hot water tank
Stainless steel SUS304, internal bladder δ3mm, external stainless steel board, and polyamine foam insulation, complete closed、man-hole、glass liquid level meter、material inlet, fly-proof、 dust-proof、four adjustable feet、and material outlet at bottom is Ф38.
2 Hygiene centrifugal pump
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 10m3/h、lifting is 24m，motor power 2.2Kw、and assembly ABB motors.
3 Plate heating exchanger
SUS 304 sheet bar, mosaic type structure, food grade high temperature resistance rubber gasket, the outside of frame is packed by stainless steel, heating by steam and inlet and outlet is Ф38.
4 Sugar melting tank
Stainless steel SUS304, internal bladder δ3mm, mile board is δ1.5mm, external stainless steel board is δ1.5mm, and polyamine foam insulation, complete closed、vertical syrup stirring, 60r/min、digital temperature gauge、motor power is 1.1KW. Washing head 、material outlet at bottom is Ф38 and breather.
5 Syrup conveying pump
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 5m3/h、lifting is 36m，motor power 1.5Kw、and assembly ABB motors.
6 Duplex barrel filter
Filtrating area is 0.3㎡、material inlet is Φ38、stainless steel filter barrel、inlet and outlet pressure gauge、stainless steel filter web、filter precision is 100 with butterfly valve.
7 Sack barrel filter
Filtrating area is 0.3㎡、material inlet is Φ38、stainless steel filter barrel、inlet and outlet pressure gauge、stainless steel filter web、filter precision is 150 with butterfly valve.
8 Plate cooler
SUS 304 sheet bar, mosaic type structure, food grade high temperature resistance rubber gasket, the outside of frame is packed by stainless steel, cooling by cooling water and inlet and outlet is Ф38.
9 Sugar melting operation platform
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 10m3/h、lifting is 24m，motor power 2.2Kw、and assembly ABB motors.
10 Blending tank
Stainless steel SUS304, barrel is δ3mm, single closed、quick pressing manhole、glass liquid level meter、material inlet and outlet、CIP washing head is Ф38 、fly-proof, dust-proof and vertical syrup stirring, 60r/min and four adjustable feet.
11 Material conveying centrifugal pump
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 5m3/h、lifting is 24m，motor power 1.5Kw、and assembly ABB motors.
12 Duplex filter
Filtrating area is 0.3㎡、material inlet is Φ38、stainless steel filter barrel、inlet and outlet pressure gauge、stainless steel filter web、filter precision is 100 with butterfly valve.
13 Sack filter
Filtrating area is 0.3㎡、material inlet is Φ38、stainless steel filter barrel、inlet and outlet pressure gauge、stainless steel filter web、filter precision is 150 with butterfly valve.
14 Ingredient operation platform
It is stainless steel, the round stainless steel support feet, stainless steel rectangular tube, stainless steel checkered plates and stainless steel safety guard. The dimension is 6000X1000X1800mm (LxWxH).
15 CIP reversal pump
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 20m3/h、lifting is 24m，motor power 4.0Kw、and assembly ABB motors.
16 CIP distributor Washer group
Stainless steel SUS304, completer closed, polyamine foam insulation, complete closed、and the whole set of temperature keeping acid tank、alkali tank and hot water tank、CIP inlet pump 10T/H、lifting 36m, heating exchanger is 10㎡, control cabinet, and the system is connected by
