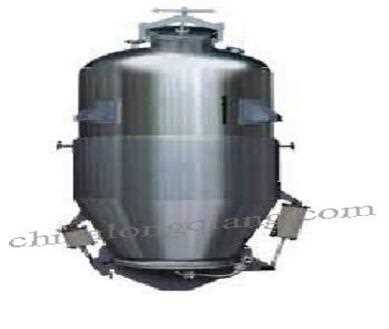

Extraction Tank Hit count 1569

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brief description

The device is to service at such industries as china traditional drug,foodstuff and chemistry for the technologies such as normal pressure,mini pressure,water decocting,warm immersion,thermal circumfluence,compelled recycle and leakage,extraction of aroma oil and reclamation of organic solvent with the features of high efficiency and convenient operation.The CIP cleaning system inside the tank meets with the GMP standard.

Detailed description

Description:

Complement equipment includes:

Defoamer.congenser,cooler,oil-water separator and medical liquid pump.

Technical parameter:

Model Specification	TQ-Z-1.0	TQ-Z-2.0	TQ-Z-3.0	TQ-Z-6.0	TQ-Z-8.0	TQ-Z-10
Volume	1200L	2300L	3200L	6300L	8500L	11000L
Design pressure in the tank	0.09Mpa
Design pressure in the jacket	0.3Mpa
Compressed air pressure	0.6-0.7Mpa
Material inlet diameter mm	400	400	400	500	500	500
Heating area ㎡	3.0	4.7	6.0	7.5	9.5	12
Condensing area ㎡	4	4	5	5	8	10
Sewage outlet mm	800	800	800	1000	1000	1000
Consumption kg/h	245	325	345	645	7200	8500
Rotary speed rpm	25
Reducer model	BLD2-4-59	BLD3-4-59	BLD4-4-59	BLD7.5-5-59	BLD7.5-5-59	BLD11-5-59
Motor power KW	2	3	4	5.5	7.5	7.5
Weight Kg	1800	2050	2400	3025	4030	6500
