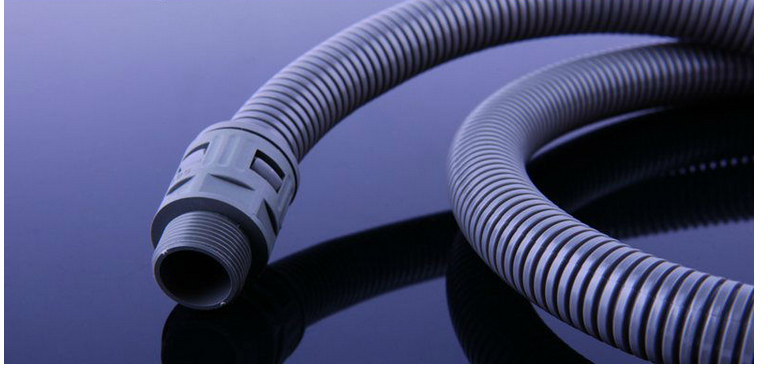

Flame-retardant PP electric cable protection pipe
Flame-retardant PP electric cable protection pipe
1.Material:PA/PP/PE/PVC
2.Specification:As below or special non-standard sizes can be customized.
|
Part Number
|
Specifications
|
ID*OD(mm)
|
Curved radius
|
| JH-P-0075 |
AD7.5 |
5*7.5 |
10
|
|
JH-P-0100
|
AD10.0
|
6.5*10.0
|
15
|
|
JH-P-0130
|
AD13.0
|
10.0*13.0
|
20
|
|
JH-P-0140
|
AD14.0
|
11.0*14.0
|
25
|
|
JH-P-0158
|
AD15.8
|
12.0*15.8
|
28
|
|
JH-P-0185
|
AD18.5
|
14.3*18.5
|
35
|
|
JH-P-0200
|
AD20.0
|
16.0*20.0
|
38
|
|
JH-P-0212
|
AD21.2
|
17.0*21.2
|
40
|
|
JH-P-0250
|
AD25.0
|
20.0*25.0
|
42
|
|
JH-P-0285
|
AD28.5
|
23.0*28.5
|
45
|
|
JH-P-0320
|
AD32.0
|
25.0*32.0
|
50
|
|
JH-P-0345
|
AD34.5
|
29.0*34.5
|
55
|
|
JH-P-0425
|
AD42.5
|
36.0*42.5
|
65
|
|
JH-P-0545
|
AD54.5
|
48.0*54.5
|
80
|
|
JH-P-0673
|
AD67.2
|
56.3*67.2
|
100
|
|
JH-P-0800
|
AD80.0
|
66.5*80.0
|
120
|
|
JH-P-1060
|
AD106
|
91*106.0
|
160
|
3.Packing Uint:10m/roll &20/roll &25m/roll &50m/roll &100m/roll &200m/roll &As your requirement
4.Colar:As your requiremnt if more than 5000 meter of one size
5.Style of Flame-retardant PP electric cable protection pipe: Split and close
6.Description of Flame-retardant PP electric cable protection pipe:
1).Produced according to various national standard.

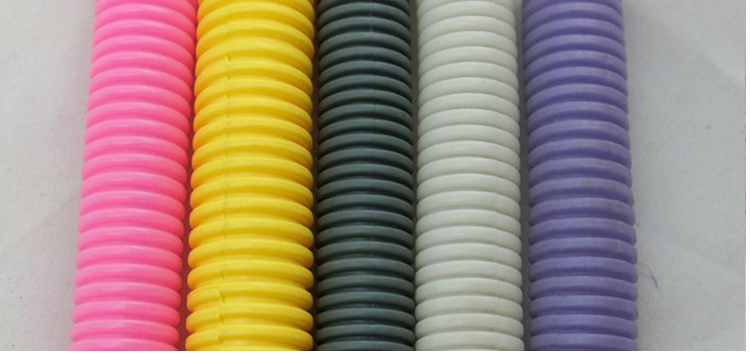

2).Color :black,grey,other colors are available upon request.
3).Protection levels : IP65
4).Temperature : PA(nylon):-40°C~+125°C,140 °C in short time
PP: -30°C~+110°C,130 °C in short time
PE: -30°C~+100°C,120 °C in short time
PVC: -20°C~+80°C
5).Properties of Flame-retardant PP electric cable protection pipe:
a)Flexible, excellent tenacity and high mechanical strength.
b)Bellows inside and outside.
c)Luster in surface and Insulation.
d)wind resistant;anti-friction; resistant to oil,acid and solvents;uv-resistant.
e)free of halogen,phosphor and cadmium.
6).Application of Flame-retardant PP electric cable protection pipe:

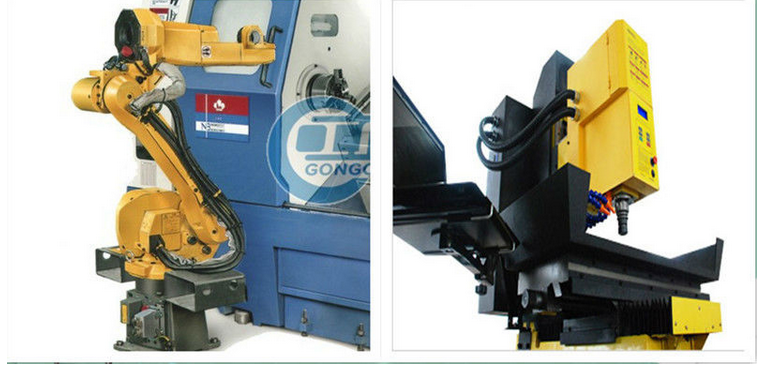

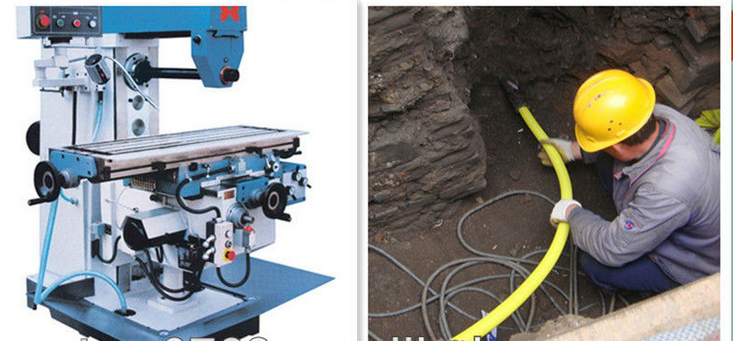

Machine tool, machine building,electric insulation protection system, electric automatic control system,public traffic equipment, metro,electric locomotive and air-conditioner equipment, etc.
