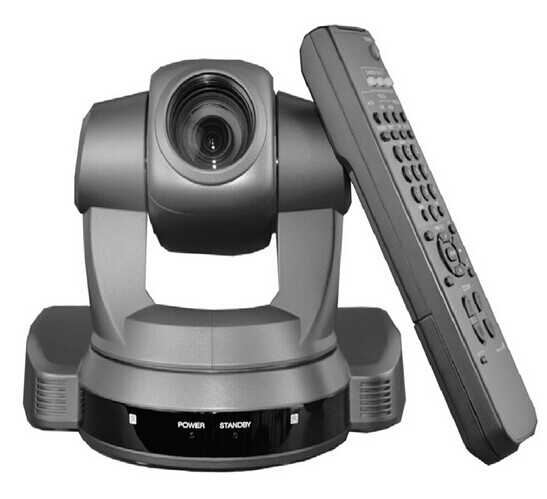

Model YS-M1080B
Image Sensor 1/2.8” Progressive CMOS
Signal Format 1080P/59.94/50/29.97/25/24 ; 1080i/59.94/50 ;
720P/59.94/50/29.97/25
SD Signal Format NTSC, PAL
Min lumination 0.5 lux (F1.6, 50 IRE, High Sensitivity Mode)
Lens 20X Zoom,Canon lens
Focal F=4.7~94mm, F1.6 ~ F3.5
Zoom Speed Wide~Tel :3.2S Tel~Wide :3S
Focus Auto, Manual, Zoom Trigger AF, PT Trigger AF,
Shortest Focus Distance 10cm(W), 1m(N)
Field of View 55.4°(W), 2.9 °(N)
IRIS Auto\Manual
AE Control Auto, Manual, Shutter Priority, Iris Priority, Bright Mode
Shutter Speed NTSC: 1/30~1/10000, PAL: 1/25~1/10000
BLC Auto, Indoor, Outdoor, One Push, Manual, AI
Day\Night Swift Auto/ Day/Night
WDR Yes\No
Other Function Mirroring, Flip
Spectra Address 0~255
Pan\Tilt Range 340°(Pan),120°(Tilt)
Control RS-232C(VISCA)/RS-422(VISCA)PELCO: P/D
Video Output HD-SDI;DVI(HDMI);Y,Pb ,Pr; VBS(RCA)
Operating Temperature 0-40℃
Power DC12V
Weight 2.5KG
1.the machine equips 5 million pixel sensor, can achieve 1920 * 1080P high resolution image, the output frame rate is as high as 60 frames per second,guarantee high definition at the same time, focus to meet customer demand of high image fluency.
2.With belt designing and using DC motor rotation control, makes the machine PTZ rotation quietly and smoothly, apply in the venue, teaching, and other places for the requirements of low noise.
3.The characteristics of 360 degrees（Pan）and 120 degrees (Tilt) ensure that users in the process of using comprehensive accept images and no dead Angle; Equipment can be installed on the ceiling, can also be put on the plane, fully meet the operating requirements of different customers, different environment.
4.The device equips 20x optical zoom lens, on the basis of the guarantee high-definition picture output, capturing all the exquisite small changes.
5.Multi-function infrared remote control can easily control the camera to pan、tilt、zoom、call and feature set.
6.A variety of control interface: RS-232C (VISCA protocol)/RS - 422 (VISCA protocol)/PELCO: P/D.And HD output interface: HD-SDI
