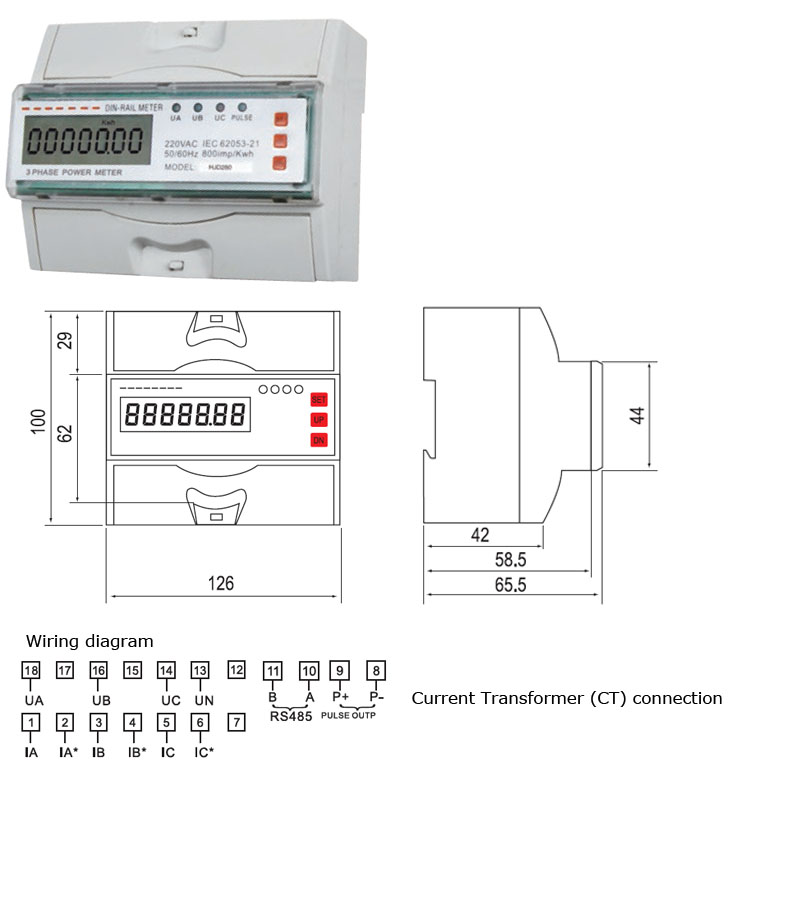

HJD280 DIN rail electric energy meter

HJD280 DIN rail electric energy meter
  • HJD280 DIN rail electric energy meter
Share to:

HJD280 DIN rail electric energy meter

Product Details


Model Number : HJD280
Brand Name : HJATIS
Place of Origin : Jiangxi, China (Mainland)
Display Type : Digital Only
Phase : Three Phase
Measuring Energy Range : 1-9999
Output Voltage : 3x380/220V, 3X100/57.7V
Dimensions : 50/60 Hz


The HJD280 DIN rail three-phase watt-hour meter adopts the latest microelectronic technology to measure active three phase AC electric energy .with rated frequency 50/60hz,measuring power of in both forward and reverse directions. The performance is in conformity with the technical requirements for three-phase Electronic watt-hour meter stipulated in GB/T 17215-2002, IEC61036.

The kwh meter only available for indoor use. Applicable to environmental temperature-20℃ to +55℃, relative humidity no more than 85%, and no corrosive gas, dust, mould, salt mist, condensation, insect etc. in the air.

Technical data

Model no. HJD280 HJD280F
Name Guid rail type multifunctional watt hour meter Guid rail type multifunctional multi rate watt hour meter
Accuracy Current voltage Class 0.5, active power Class 0.5, reactive power 2.0.
Rated voltage 3x380V/220V 3X100/57.5V
Rated current AC5A, AC6A or cut-over directly 1.5(6)A, 3(6), 5(30), 10(50), 15(90),20(100), 5(40),5(100)A
Function Measure three phase current, voltage,active power,reactive power,apparent power,frequency,factor,active energy,reactive energy,RS485 communication,1 road pulse output, default AC5A. Measure three phase current, voltage,active power,reactive power,apparent power,frequency,factor,active energy,reactive energy,multi rate energy record. RS485 communication,1 road pulse output, default AC5A.


Company Profile

Jiangxi Hjatis Power Industry Co., Ltd. was founded in 2000, is located in the famous revolutionary base and national scenic 4A class tourist destination- Pingxiang, Jiangxi. The company covers more than 30000 square meters. Including technology building, Research and Development Center, office and standard production workshop. Production line is equipped with advanced testing equipment and system development software. Communication protocol is safe, reliable and stable. We also cooperate with many domestic famous University.

Hjatis group include four production plant: electric power automation products, low-voltage electrical products, high-voltage electrical products, frequency converter, soft starter products etc.The company now have 60 senior engineers, 100 senior technical personnel, 680 production staff.

As a professional manufacturer engaged in intelligent power distribution products. We pay attention to the cooperation with the major domestic science and technology institutions. With advanced equipment and scientific production process, developed high voltage load switch series, high voltage vacuum circuit breaker, low voltage intelligent circuit breaker, double power automatic switching, intelligent universal circuit breaker, CPS control and protection switch, instrument, microcomputer integrated protection device, motor protector and guide rail type electric energy meter series products.

Products achieved "CCC" certification and "CQC" certification authority and related experimental report. The company currently has more than 100 patent certificate, a number of technology products, fully passed ISO9001 international quality management system certification.

The intelligent power distribution products are efficient, accurate, reliable, energy saving, environmental protection. And widely used in metallurgy, petrochemical, electric power, construction, municipal, environmental protection, national defense, water conservancy and other industries.

The company will insist the principle of "survive by quality, technology, development, efficiency". And "all for customer service" business purposes, continuous innovation, accept challenges, to broaden the market, to meet the full range of electric power system demand. Will provide customer the highest quality products with honest and satisfactory service!
