Application:
Forced circulating single-effect, double-effect, triple-effect and multi-effect evaporators are applicable for low t emperature concentration of high concentration and high viscosity materials containing indissoluble solid things in food, medicine, chemical industry, biological project, environment protection project,and waste liquid recovery etc, industries.

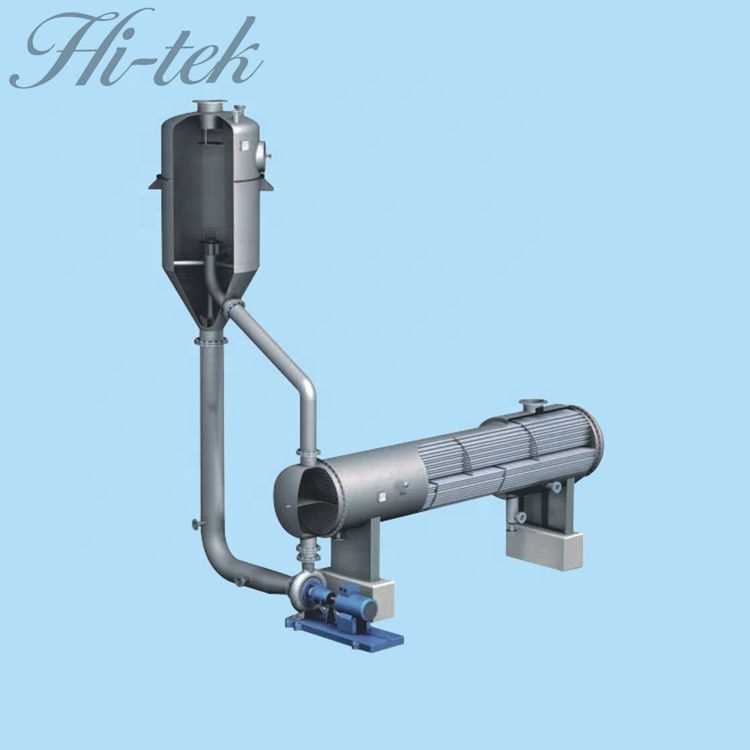

Equipment structure:
This evaporator main composed of evaporators of various effects, separators of various effects, condenser, circulating pump and vaccum pump and condensed water discharge system, distribution cylinder, operation platform, electric meter control cabinet, valve and pipe etc. system.
Equipment characteristics:
1.The whole system with reasonable and beautiful design, stable operation, high efficiency, energy saving and low steam consumption.
2.Large concentration ratio, forced circulating type, which can make the materials of larger viscosity easily flow and evaporate and shortens the concentration time.
3.The special design can make modifications of effects easily to realize production of various products.
4.Low evaporation temperature, the heat quantity can be fully used, the heating of materials is warm, so it's applicable for concentration of heat sensitive materials.
5.After forced circulation, the evaporator is heated evenly in the pipe with high heat transfer coefficent, in order to prevent the occurrence of "dry wall".
6.The materials and liquids are separated after coming into the separator, the effect of separating is greatly improved and it's flexible to operate.
7.The whole set equipment is quite compact, and occupies little area, and the layout is simple and fluent, all of which are the developing tendency of lare sized whole set evaporating equipments.
8. Continuous materials inlet and outlet, and the liquid level of mateials and needed concentration can be automatically controlled.
