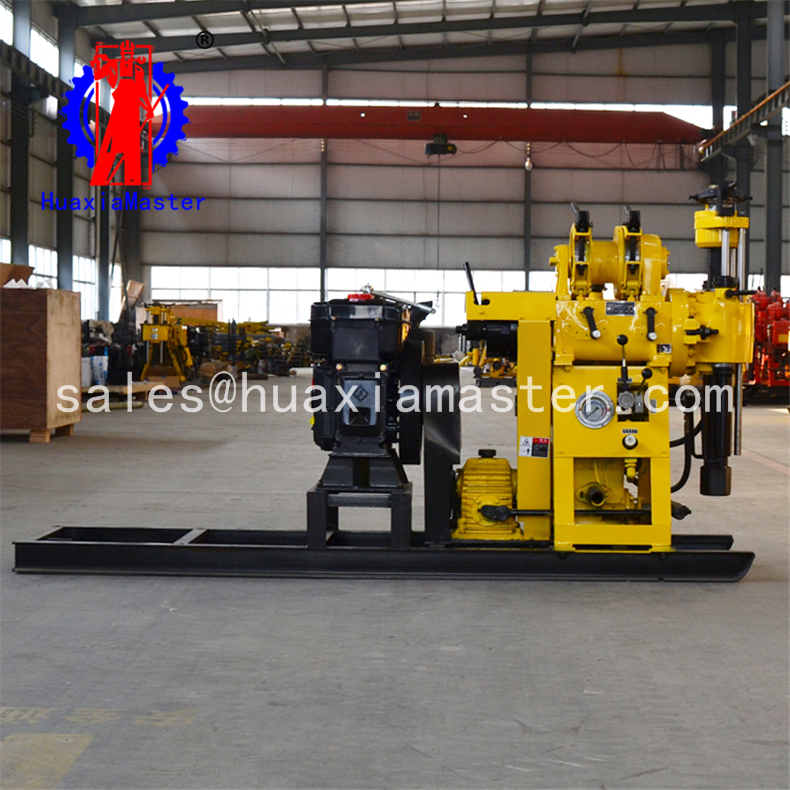

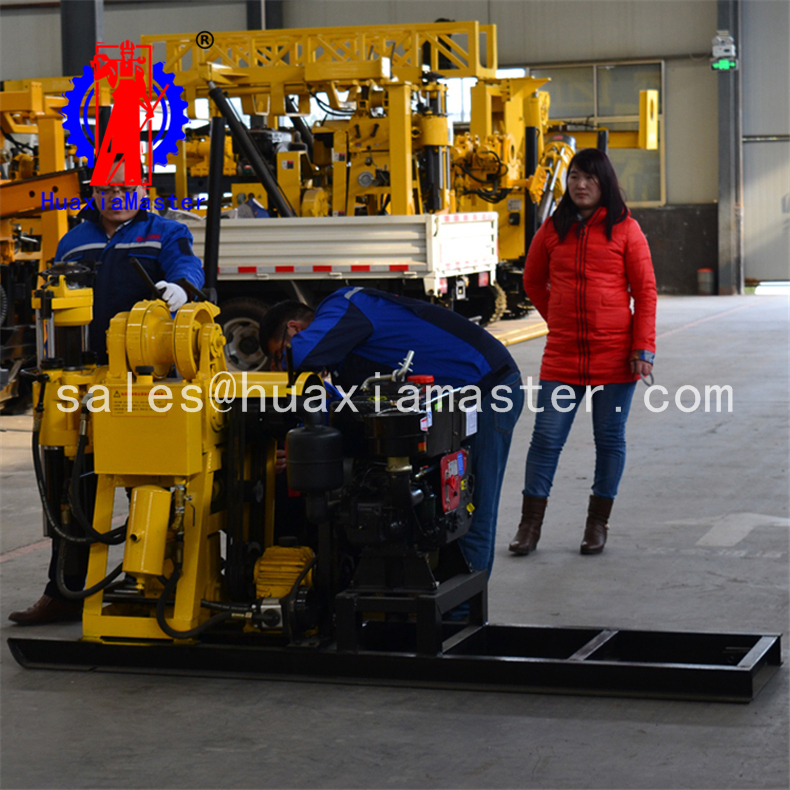

HZ-130Y Hydraulic core Drilling Rig rock drill for exporting to sale

USD 4500.00-4600.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time: within three days
Packaging Details: wooden packaging

Port: qingdao

Payment Terms: T/T ,L/C ,D/A ,D/P ,

Share to:

Basic Information

  • After-sales Service Provided
    yes
  • Warranty
    6 month
  • Certification
    ISO
  • Weight
    750kg
  • Dimension(L*W*H)
    2000*1500*1500
  • Power(W)
    16.2kw
  • Voltage
    220V
  • Usage
    core drilling rig
  • Model Number
    HZ-130Y
  • Brand Name
    huaxiamaster
  • Place of Origin
    china
  • Condition
    new
  • Drilling depth
    130m
  • Maximum open hole caliber
    220mm
  • End hole caliber
    75mm
  • Drill rod caliber
    50mm
  • Spindle speed
    142 285 570r/min

Brief description

·geological survey and exploration ·basic exploration for roads ·high-rise buildings ·inspection holes for various concrete structures ·river embankments ·grouting holes ·direct grouting, ·civil water well ·ground temperature central air conditioners.

Detailed description



1. Applications of HZ-130Y hydraulic core drilling rig

  • geological survey and exploration
  • basic exploration for roads
  • high-rise buildings
  • inspection holes for various concrete structures
  • river embankments
  • grouting holes
  • direct grouting,
  • civil water well
  • ground temperature central air conditioners.
  1. Features of HZ-130Y hydraulic core drilling rig
  • Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
  • Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
  • This machine adopts the conical clutch of national patent technology, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
  • Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
  1. Specifications of HZ-130Y hydraulic core drilling rig

HZ-130Y hydraulic core drilling rig

Drilling depth

130m

Maximum open hole caliber

220mm

End hole caliber

75mm

Drill rod caliber

50mm

Drilling angle

90-75°

Drill weight (Not include power)

750kg

Spindle

Spindle speed

142 285 570r/min

Spindle stroke

450mm

Hoist

Max.single line hoisting capacity

1600kg

Single line lifting speed

0.41/0.82/1.64m/s

Drum diameter

140mm

Wire rope diameter

13mm

Tightrope caliber

27m

Mud pump

Type

Horizontal single urn twin-action

Electric motor

95/77 l/min

Maximum pressure

1.2mpa

Work pressure

0.7mpa

Water inlet caliber

30mm

Water to exit caliber

20mm

Triangle conveyer belt

B1575mm

Shandong Master Machinery Group Co.,Ltd.

Sales Manager:Candice

Wechat:18865479502

Whatsapp:8618865479502

Shandong Master Machinery Group Co.,Ltd. is located in Jining city,Shandong Province ,which is known as "The hometown of Confucius, formal state" reputation . Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky. convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

Shandong Master Machinery Group Co.,Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time ,Pragmatic development will strengthen our progress. Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

The group company mainly provides solutions for engineering and mine construction.With high quality products, good service and honest reputation,our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.And stand out from a large number of national key project construction projects ,The market performance is among the best in the industry.The group company actively responds to the national "One Belt And One Road" policy to go abroad.Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

It is a pleasure to have friends coming from afar.We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
