High Lumen Outdoor Waterproof 120w LED Flood Light

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • Voltage
    120
  • Rated Power
    100
  • Protection Level
    high
  • Brand Name
    Tunghsu
  • Place of Origin
    Sichuan, China (Mainland)

Brief description

Product Material 1. Die-casting aluminum lamp electrical box, plastic sprayed surface ; 2. The lamp shade adopts imported new style ionization process, luminous efficacy is above 90%; 3. The heat dissipation structure adopts tensile aluminum slice,which ensure the luminous flux high output and reduce the attenuation of reflection coefficient; 4. Electric box can be replaced.

Detailed description

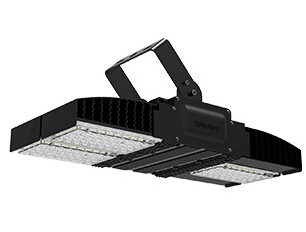

High Lumen Outdoor Waterproof 120w LED Flood Light
Model Name TSTF-120-FL
Power Consumption 120W
Correlated Color Temperature 4500~5500K(2700~5500K Optional)
Luminous Flux 12960lm
Luminous Efficacy 108lm/W
Color Rendering index 75Ra
Light Distribution 30°80°110°
LED Chip Manufacturer SEOUL 72 PCS
Input voltage 100-277 Vac
Input Current 0.6A
Power Factor ≥0.95 at Max load
Frequency 47-63 Hz
Driver Type Constant Current(CC)
Driver Manufacturer Tunghsu

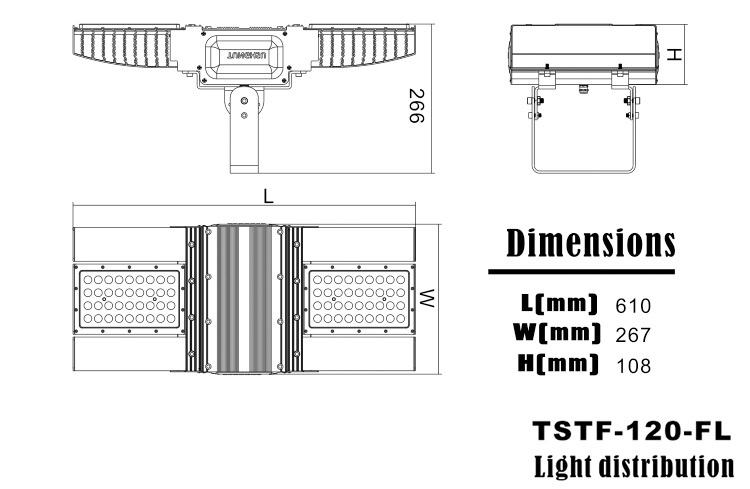

Size(W×L×H) 610×267×108(mm)
Weight(Driver included) 8.8 Kg
Material Body Aluminum Alloy
Optic Pc
Finish Powder Coating
IP Rating IP 66
Mounting Option Yoke bracket
Operating Temperature -30°c~+60 °c
Humidity 15% to 90%RH Humidity
Life Time  LED Module 100,000 Hours (L70@77°F/25℃)
Driver 50,000 Hours (@77°F/25℃)
Warranty 5 Years

Product Material
1. Die-casting aluminum lamp electrical box, plastic sprayed surface ;
2. The lamp shade adopts imported new style ionization process, luminous efficacy is above 90%;
3. The heat dissipation structure adopts tensile aluminum slice,which ensure the luminous flux high output and reduce the attenuation of reflection coefficient;
4. Electric box can be replaced.

Product Features
Advantage of Dunghsu Induction Lamp:
1.With UL certificate.
 2.Luminaire efficacy over 114lm/w.
3.Multiple optical lens options.
4exportimescheckpatible with both outdoor and indoor environments.
5.The easiest operation and maintenance guaranteed.
 6.Patented heat sink and light engine provides lightweight appearance and excellent heat dissipation.

  Application Field
                                     General Flood Lighting,Area Lighting,High Mast Lighting,Roof Top Lighting
