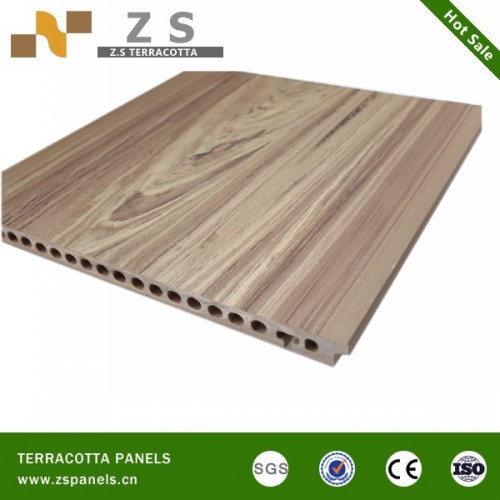

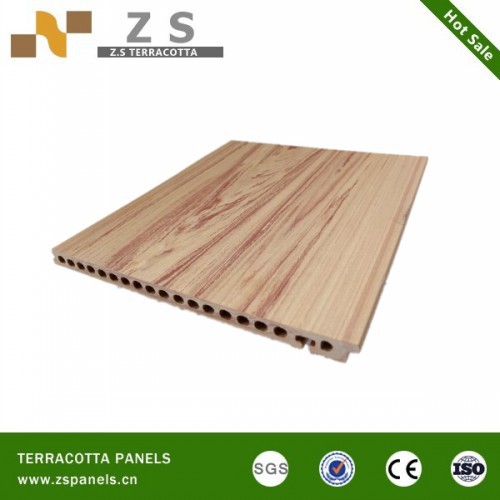

Latest design of wood grain terracotta panels for exterior wall or floor

Latest design of wood grain terracotta panels for exterior wall or floor
  • Latest design of wood grain terracotta panels for exterior wall or floor
Share to:

Latest design of wood grain terracotta panels for exterior wall or floor

Product Details


Type : Curtain Walls
Material : Clay
Brand Name : ZS
Place of Origin : Jiangxi, China (Mainland)
thickness : 18mm-30mm


ZS Terracotta Panels Description

Terracotta panel is made by the natural clay material and fired with more than 1200 degree temperature with the advanced hollow structure and dry hanging system which it is widely used in curtain wall and interior wall

1. Terracotta sunscreen products advantages

*Natural clay material -100% green material and hollow structure

*Heat preservation and sound insulation

*No-static and no-radiation product

*Rich color and surface available

*Easy dry hanging system

*Non of the light pollution

*Self-cleaning system

*Never color fading

*Light weight

2. Terracotta usage

Terracotta panel have the dry hanging system which it is widely used in curtain wall, interior wall, floor and roof etc, it is the advanced and green building material, it normally called Terracotta panel for exterior wll, terracotta wall panel, Terracotta louver, Terracotta tube, terracotta panel for curtain wall. etc

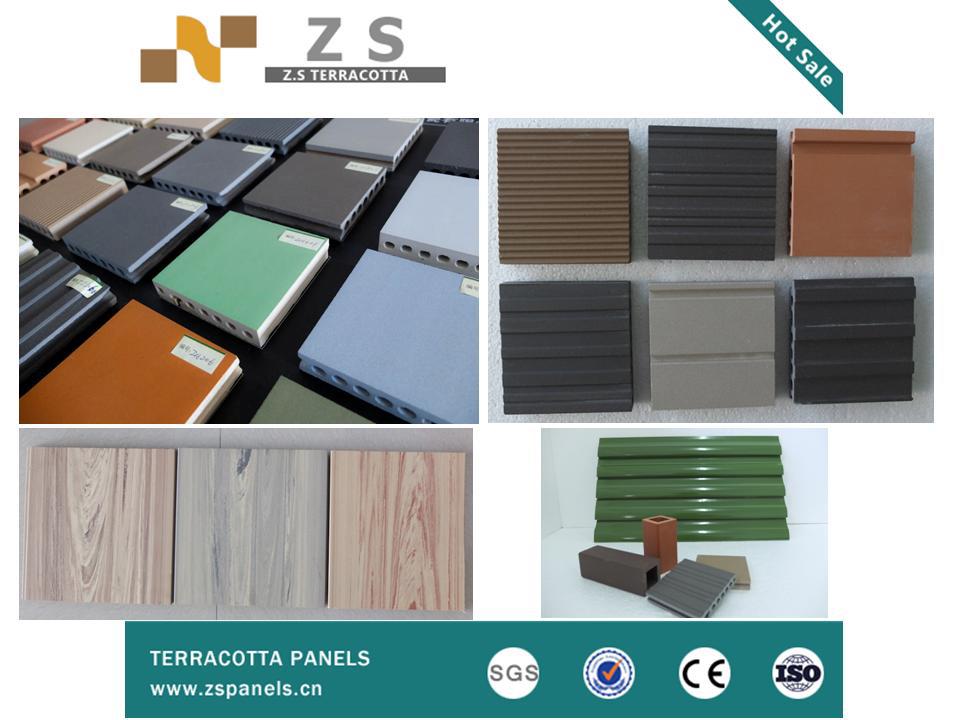

3. Normal colors

Red: Bright red, coral red, burgundy red, coffee

Yellow: Ivory, wheat yellow, maize yellow, orange yellow

Gray: Light gray, great wall gray, deep gray, dark gray

White, Green ,Blue

4. Normal size

*Available thickness 18mm, 30mm

*Available width: 300mm, 400mm 450mm 500mm 550mm 600mm 650mm

*Available length: 300mm 600mm 900mm 1200mm 1500mm

*OEM and ODM are available

5. Normal surface

Natural /Stripy/Groove/Glazed/Wood Grain

6. Technical Data

A)Net weight: 31kgs/sqm for x18mm(thickness), 44kgs/sqm for x30mm(thickness)

B)Size error: within +-1%, max is within +-2mm

C)Thickness error: within +-4.5%-8%

D)Center curvature: within +-1%

E)Side straight and right angle: within +-1%

F)Anti-pollution: Grade 3

G)Anti-corrasion: Grade UA

H)Wind pressure test 10 Kpa

I)Water absorption: 1%-7%

J)Frost resistence: No

K)Breaking strength: minium 3244N(300x600x18mm)

L)Fire-proofing Grade A1


N)Anti-pollution: Grade 3

O)Noise-isolated 7-10DB

P) Rupture modulus are 16.2mpa

7. ZS panels advantage

Advantages of ZS Terracotta Panel , comparing with Stone and Glass
NO. Contents Terracotta Panel Nature Stone Glass
1 Material Natural Clay, 100% green material granite,marble, sandstone quartz alkaline colloid
2 Dry Weight hollow structurer, 30-32kg/m2, 70% weight of the Nature Stone 2.4-2.7kg/m³ 2.5kg/m³
3 Dry-hanging System with its own groove for dry-hanging, standard, safe and easy handle. on-site processing, fragile,security risk on-site fixing
4 Color Never fading, color inherent,stable color for each production. natural color, but it is greatly affected by mine or location heavy-metal oxide
5 Durability not new in ten years, not old in one hundred years. easy to be second weathering easy to be errosion
6 Acid and alkaline resistance high middle low
7 Radiactivity none with radiactive elements With radiactive elements for bright color glass
8 Low-carbon ability hollow structure ,good heat and sound insulation, light-weight, greatly saving steel,half of stone's heat-conducting, recycling. low heat and noise insulation, heavy, needing to be reinforced. high light-transimission, no heat-insulation
9 environmental protection of the processing using shale and terracotta, or coal waste, easy for exploration, no need to process too much, little waste much wasting water, stone material is limited, causing great damage to environment. limited good silicon
10 Light pollution no, matte surface no high,dazzling




Company Profile

JiangXi ZhongSheng Terrracotta Panels Co., Ltd. (ZS) is a manufacturer of terracotta panels and terracotta tiles with well-equipped advanced equipments and strong technical force.

Our factory occupies an area of 500.89 Mu (33.4 hectares or 333592.74 square meters), and produces ZS brand terracotta panels which has the character of hollow structure, light weight, sound insulating, heat insulating, natural color, energy saving and environment protecting. We possess the connotation of traditional culture, conform to the trend of sustainable development of architecture, and most of all, use new and high-grade building materials in the world architecture industry.

ZhongSheng terracotta panels use pure natural ores and china clay as the raw materials, and import the most advanced equipments from Germany and Italia for molding and burning. Our products have delicate surfaces, high hardness, heat stability, and anti corrosion advantages, and have become top products among architecture curtain walls.

Zhongshanrong Porcelain Co., Ltd. (ZSR) is the mother factory of Jiangxi ZhongSheng Terrracotta Panels Co., Ltd. ZSR was established in 1985, and has two branch factories for producing alumina ceramic grinding balls and split bricks. With more than twenty years hard work, ZSR not only has a high quality, but also possesses strong sales network that spreads out through big cities of the country. For many years, ZSR carries (or adheres to) the business concept of Creating Brand with Quality, Exploiting Market with Brand, Acquiring Benefits from Market, Enhancing Development with Benefits, and the cooperation concept of Joining Hands Sincerely, Creating Double Win, and has created and established many classical architecture and beautiful homes for cooperators and consumers.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
