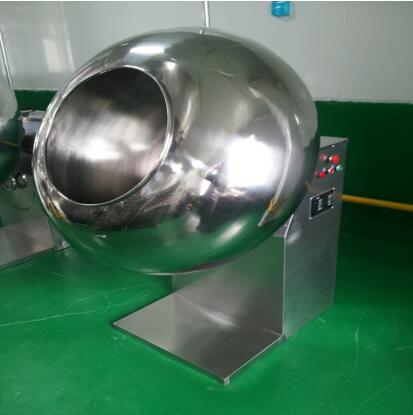

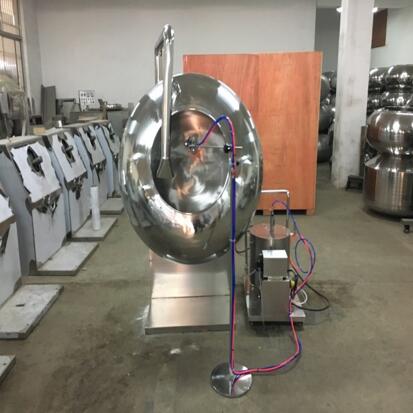

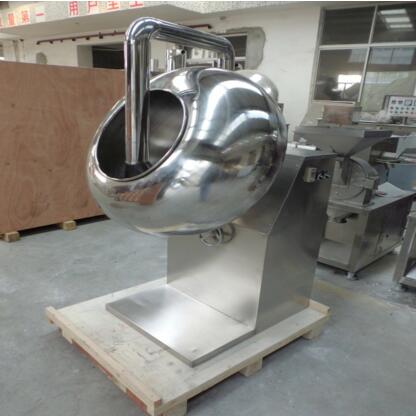

This machine is mainly used for making pellet, film coating on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.
Such as: chocolate polishing, peanut coating, sugar coating, seasoning, producing tapiocapearls, and pelletizing the desiccant & aluminium hydroxide, porcelain ball making, etc.
Application
This machine is mainly used for making pellet, film coating on tablets. It can also be used for making
ball shape products or granules, mixing, and polishing, etc.
Such as: chocolate polishing, peanut coating, sugar coating, seasoning, producing tapioca
pearls, and pelletizing the desiccant & aluminium hydroxide, porcelain ball making, etc.
Working principle
This machine consists of main body, worm wheel box, coating pan, heating device, hot air & common blower, electrical equipment, etc.
The transmission process that the motor drives the worm wheel and worm via triangle belt to
make the coating pan rotate. Then the material revolves up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.
| Model |
BY200 |
BY300 |
BY400 |
BY600 |
| Dia of pan(mm) |
200 |
300 |
400 |
600 |
| Capacity(kg/batch) |
1 |
2 |
5 |
15 |
| Rotation speed(r/min) |
0-46 |
0-46 |
0-46 |
0-36 |
| Power of motor(kw) |
0.37 |
0.37 |
0.37 |
0.75 |
| Power of fan(w) |
75 |
75 |
75 |
75 |
| Power of heating(kw) |
1.2 |
1.2 |
1.2 |
2 |
| Overall size (L*W*H)(mm) |
500*350 *700
|
500*350 *700
|
550*400 *800
|
800*600 *900
|
| Weight(kg) |
36 |
37 |
38 |
85 |
| Model |
BY800 |
BY1000 |
BY1250 |
BY1500 |
| Dia of pan(mm) |
800 |
1000 |
1250 |
1500 |
| Capacity(kg/batch) |
30-50 |
50-70 |
80-150 |
300-400 |
| Rotation speed(r/min) |
0-36 |
0-32 |
0-28 |
0-26 |
| Power of motor(kw) |
1.5 |
1.5 |
3 |
5.5 |
| Power of fan(w) |
120 |
120 |
180 |
370 |
| Power of heating(kw) |
2 |
3 |
5 |
6 |
| Overall size (L*W*H)(mm) |
1000*800 *1430
|
1100*1000 *1560
|
1250*1200 *1820
|
1500*1500*1980
|
| Weight(kg) |
205 |
220 |
350 |
600 |
