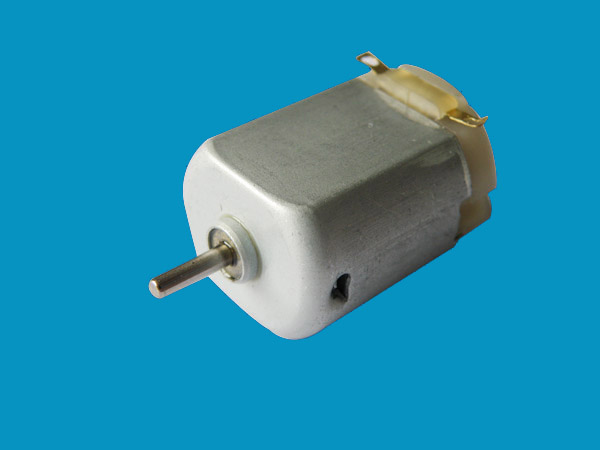

RS-528 DC motor CE ROHS 12v 24v etc mini series motor

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brief description

FOB Price:US $ 2 - 4 / Piece | Get Latest Price

Min.Order Quantity:100 Set/Sets samples available

Supply Ability:100000 Set/Sets per Month

Port:dalian

Payment Terms:L/C,T/T,Western Union,Escrow

Detailed description

Quick Details

Place of Origin: benxi
Brand Name: benwei
Model Number: RS-528 DC motor
Usage: Car, Electric Bicycle, Fan, Home Appliance, Other
Certification: CCC, CE, ROHS
Type: Gear Motor
Torque: as your request
Construction: Series Wound
Commutation: Brush
Protect Feature: Explosion-proof
Speed(RPM): 3000,4500,6000RPM
Continuous Current(A): As your request
Output Power: 3.5W 6.7W 9.4W
Voltage(V): 12VDC 24VDC
Efficiency: IE 2
Direction of rotation:: CW,CCW
Color: Silver

Packaging & Delivery

Packaging Details:	standard packing
Delivery Detail:	within 25 days

Specifications

RS-528 DC motor mini series DC planetary Gear motor
large torque,long life and low noise

Appliance: This motor can be assembled with gearbox PG32,PG36

Motor Data for RS-528:

Motor Model	Rated	No load		Maximum efficiency				Stall
	Volt	Current	Speed	Current	Speed	Torque	Power	Torque	Current
	(V)	mA	rpm	mA	rpm	g.cm	W	g.cm	mA
RS-528123400	12	≤40	3400	≤180	2500	40	1	160	720
RS-528124500	12	≤60	4500	≤350	3300	60	2	210	1400
RS-528126000	12	≤70	6000	≤720	4500	80	3.6	300	2800
RS-528243400	24	≤15	3000	≤80	2200	40	0.9	140	320
RS-528244500	24	≤25	4500	≤180	3300	60	2	210	730
RS-528246000	24	≤45	6700	≤360	4500	80	3.6	300	1400
