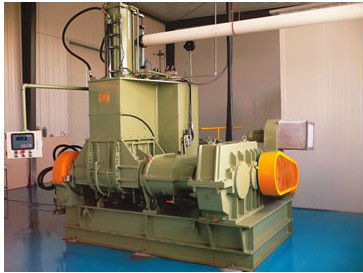

Rubber kneader

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Condition:

New
Brand Name:

canmade
Certification:

ISO9001:2008
Type :

Rubber Kneader
Model Number:

1.5-200L
Color :

green .
Place of Origin:

Liaoning, China (Mainland)
Voltage:

220/380/400/440

Brief description

FOB Price:US $ 10,000 - 150,000 / Set

Min.Order Quantity:1 Set/Sets

Supply Ability:70 Set/Sets per Year

Port:dalian

Payment Terms:L/C,T/T

Detailed description

Specifications

For rubber(Plastics) plasticating and mixing.
1.5L-200L, mechanical worm gear tilting, hydraulic tilting.

1.Under the hermetically closed, pressure and temperature controllable condition, the rubber/platics and other accessory ingredients can be successfully kneaded or plasticated with the characteristics of high productivity, homodispersion of materials, good quality, no contamination to environment, convenience for the processes of material change, color change and cleaning.

2.The mixing chamber, rotors, float weight and other parts are all adopting jacketed structure for the availability of ingoing of media such as steam, conducting oil and water for heating and cooling so as so suit the various requirements for the process of rubber mixing or plastics plasticating and to ensure the processed quality of materials good and stable.

3.The spiral angle and the working length of the wing of the rotors are designed intelligently and reasonably and they can make the materials obtaining an optimal kneading effect. The wings ridges and the end surfaces of the rotor are bead welded with the abrasion resistant sintered carbide and the faying surfaces of mixing chamber, rotor and upper ram which directly touching with the materials are all polished, ground and plated with hard chromium and consequently the surfaces are smooth and bright as well as corrosion resistant.

4.The materials can be charged from the rear door(or the side)of the machine frame and turn forward the mixing chamber in 140 for discharging the materials and in doing so, it will be either convenient for the linkage or the first and second working procedure of the production flow of for the convenience of the observation and cleaning of the mixing chamber and rotor.

5.At the joint between the top of mixing chamber and the cantilevered arm of the frame adopt arc-shaped plate-groove labyrith type sealing and therefore the sealing dust prevention effect is very good. the enc face of rotor is sealed by end contact sealing with external pressure type nonlubricating sealing and it is abrasion resistant and durable.

6.The turning mechanism adopts the enveloping worm pair(TOP) and it produces a high driving coefficient of performance and high bearing strenth, in addition the discharging of materials with no shutdown can be carried out successfully so that it avoids the frequent starting up of the motor and consequently it prolongs the service life of it to a large extent.

7.The electric-control system adopts PLC device and it possesses of a perfect and reliable automatically --controlled monitoring and alarming functions as well as the necessary interlocking protective function.

8.Main Technical Parameters

Model Item		X(S)N-1.5	X(S)N-3	X(S)N-10x32	X(S)N-20x32	X(S)N-35x32	X(S)N-55x32	X(S)N-75x32	X(S)N-110x32	X(S)N-150x32	X(S)N-200x32
Total volume( L )		4	8	25	45	75	125	180	250	325	440
Working volume(L)		1.5	3	10	20	35	55	75	110	150	200
Motor power ( KW )		4	7.5	18.5	37	55	75	110	185	220	280
Tilting		Worm gear	Worm gear	Worm gear	Worm gear	Worm gear	Worm gear	Worm gear/ Hydraulic	Worm gear/ Hydraulic	Worm gear/ Hydraulic	HHydraulic
Sealing		Spring type	Spring type	Spring type	Spring type	Spring type	Spring type	Spring type/ Hydraulic	Spring type/ Hydraulic	Spring type/ Hydraulic	Spring type/ Hydraulic
Rotor speed (F/R) (( r/min )		8.8-88/ 6.9/69	25-100/ 18-72	32/25	32/26	32/26	32/26	32/26	30/24.5	30/24.5	30/24.5
S Out Dimension (mm)	L	1550	1600	2300	2500	3150	3370	3770	4060	4200	4520
	W	750	950	1360	1750	2020	1950	2570	2750	3300	3400
	H	1825	1880	2120	2450	2960	3020	3160	3590	3900	4215
Total weight( kg )		750	1050	3000	4500	7200	8200	11600	15600	19500	22500

Company Profile

Headquartered in Dalian Free Trade Zone, Dalian Canmade Rubber and Plastics Machinery Co., Ltd. is a modern and leading manufacturer specialized in designing and producing rubber and plastic machinery. Since inception in 1972, our company has got many national titles such as "High-Tech Enterprise", "Trust Worthy Enterprise" and "Enterprise of AAA Class Credit".

Our products include: Internal mixers, roller-head extruders, open mixing mills, pressure dispersion mixers (kneaders), pin-barrel cold-feed extruders, calenders, rubber cutters, mixing lines, extrusion lines and calendering lines. Our products are widely used in tires, sealing products, rubber hoses, rubber sheets, cable wires, EVA, PVC and pharmaceutical industry. Our products are exported globally to Japan, South Korea, Southeast Asia, North and South America, Europe, Africa and the Middle East.

Dalian Canmade invests heavily in state-of-art manufacture and quality assurance. All of our modern workshops are equipped with plenty of large and precision CNC machining and inspecting equipment to minimize manufacturing cost while maintaining superior product quality. Our engineers and technical personnel are highly experienced in the fields of large and heavy internal mixers, auxiliaries, calendering lines, inner liner lines, rubber sheet extruding-calendering lines and 4-layer co-extrusion machines.
