Quick Details
- Design: Scissor
- Type: Double Cylinder Hydraulic Lift
- Certification: CE
- Lifting Capacity: 3000 kg
- Lifting Height(mm): 2040 mm
- Overall Width(mm): 1940 mm
- Place of Origin: China (Mainland)
- Brand Name: Kroemer
- Model Number: KHG2014DSL-3.0T
Specifications
scissor lift, floor level lift, floor level installation, undergrounden lift, 3,0t, 3000 kg
Quality scissor lift KHG2014DSL-3.0T

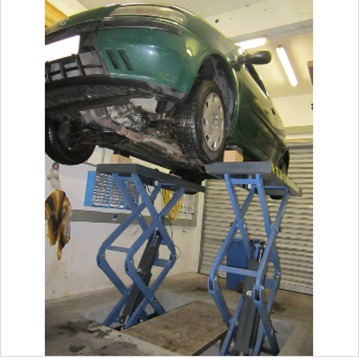

Optimal solution for tyre service, painting and body work.

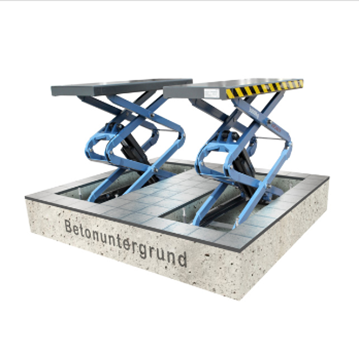

Lift requires floor level installation. 2040 maximum lifting height.
Top built quality with CE-certificate
Manufactured according to ISO 9001
Mechanic synchro control
Top quality and massive construcion
2 powerful hydraulic cyclinders
Pneumatic release system
Foot-safeguard
3000 kg lifting capacity

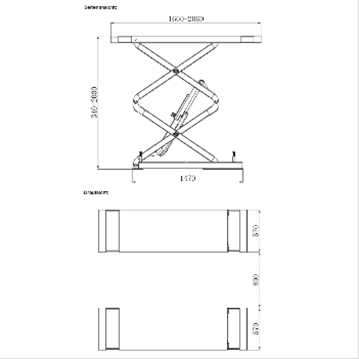

Technical Data
Lifting capacity 3000 kg
Max lifting height 2040 mm
Lifting/lowering time 40 sec
Power supply 400/50 (V/Hz.) , 16A CEE
Motor power 2.2kw/3.0kw
Weight incl. motor 920 kg
Packaging & Delivery
Packaging Details: from 1 pack to complete containers
Delivery Detail: on stock
Specifications
Midrise scissors lift with 2040 mm lifting height
Optimal solution for tyre service, painting and body work.
Delivery contents
Scissor car lift Kroemer KHG2014DSL-3.0T
4 Rubbers
Motor 400V m. Hydraulic unit and tank in high quality metal - not plastic
Operating and maintenance instructions
CE-certificate
Assembly Kit
