Square bar helical piles are used for stabilize the foundation

USD 8.50-45.00 / Piece/Pieces | 0.00 Piece/Pieces (Min. Order)

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: T/T ,

Send Inquiry Add to My Favorites

Share to:

Basic Information

Material

40Cr or 45 steel, round corner 5mm radius
Model Number

BS-0002
Brand Name

BS
Place of Origin

China
Bar Material

40Cr or 45 steel
Helix Plate material

conforms to ASTM A36
Helices thickness

3/8'' and 1/2''
Length

3ft,5ft,7ft,10ft,etc...
Size

1.5''x1.5'',1.7'',2'',all sizes or as your requirement
Degress

45 degress
Corrosion protection

conform to ASTM A153 standard

Brief description

Bar Material: 40Cr or 45# steel, round corner 5mm radius Helix Plate material conforms to ASTM A36 hot rolled plate helices thickness are available in 3/8” and 1/2” inch All helix leading edges sharpened and rock cut and 45 degrees. Corrosion protection to conform to ASTM A153 standard for hot dipped zinc coating A better conventional solid steel extra high strength helical screw pile Welded coupling for greater strength. Eliminates shaft heat damage caused by upset coupling process

Detailed description

Square bar helical piles are used for stabilize the foundation

Product Description

Square bar helical piles are used for stabilize the foundation

Bar Material	40Cr or 45# steel, round corner 5mm radius
Helix Plate material	ASTM A36 hot rolled plate
Helix leading edges	Sharpened and rock cut and 45 degree
Finish	Hot dipped zinc coating, Painted, Powder coating, corrosion protection conform to ASTM A153 standard.
Helix Blade	8", 10", 12" and 14" in diameter with 3/8", 1/2" thickness
Square Bar	1-1/2",1-3/4" ,2-1/4"
Lead sections	Available in 3, 5 and 7-foot lengths.
Extensions	Available in 3, 5, 7 and 10-foot lengths.
OEM service	Accepted

Specifications
Size	Lead Length (ft)	Helix Size (inch)	Extension Length(ft)
1-1/2"	3ft/5ft/7ft	8/10/12/14	3ft/5ft/7ft/10ft
1--3/4"	3ft/5ft/7ft	8/10/12/14	3ft/5ft/7ft/10ft
2"	3ft/5ft/7ft/10ft	8/10/12/15	3ft/5ft/7ft/10ft

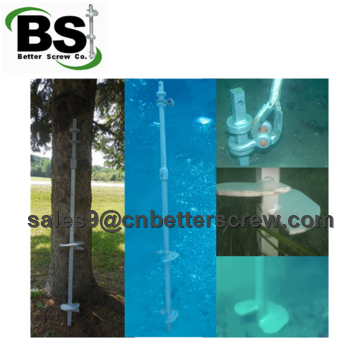

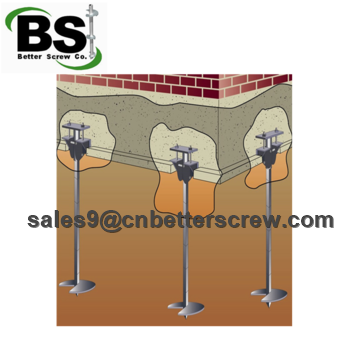

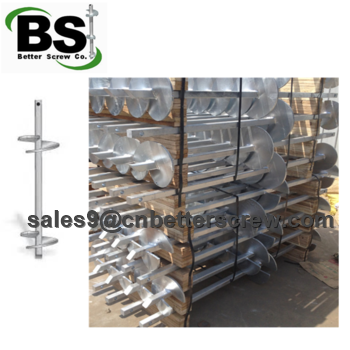

Detailed Images

Square bar helical piles are used for stabilize the foundation

Packaging & Shipping

1. Packaging: Usually we shipping the products in 20ft’ container or according to your demand.
2. Shipping: 5-6 weeks after confirming your order.

Our Services

1. Professional staffs reply your inquiry in 24 working hours.

2. Professional factory : We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring.

3. Good quality, competitive pricing and timely service.

4. OEM and ODM service are available here.

5. Sample: Available.

FAQ

1. Are your products the same with the ones in our local market?
Yes, our welding performed to America Standard AWS D1.1&EURO Standard EB287 and we manufactured millions of helical piers and a series of accessories for North American/Europen/Australian etc market during the past 10 years and very familiar with every detail of these products. We believe that there is no company in China is more professional than us on this product.

2. What is the minimum order quantity?

The MOQ for helical piers is 10 tons for per specification. You can mix different sizes of posts to make up a full container. If you want to know the MOQ for other products, please feel free to contact us.

3. How long is your lead time?

Usually our production time for one container goods is about 30-40 days, and the shipping time

depends on your place of delivery.

4. What is your payment term?

Usually our payment term is T/T. We can receive the payment 1-3 days after you made payment.

5. Is it complicated to purchase your products if we have never imported?
The whole process is very simple. We can take charge of the whole process including producing inChina and shipping the products directly to your company. Our shipping agent in USA/Canada can deal with the customs clearance and inland transportation affairs for you. You just need to stay in your office to check our products.

Company Profile

Better Screw Co. is a subsidiary of Better Group Corp. Better Group Corp have several different subsidiaries focus on different fields such as Metal work, CNC Equipment, Investment, Construction, and Real Estate business. Better Screw Co. is the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring. We offer a full range of helical piles, push piers, helical plates, lead sections, steel extensions, helical brackets, as well as all the accessories needed to put your job together. During the past 10 years, our reliable quality, crazy prices and professional service had been confirmed by customers from the USA, Canada, Australia, Europe, Asia and many other countries from all over the world.

We can take charge of the whole process including producing in China and shipping the products directly to your company. Our agent in your country can deal with the customs clearance and inland transportation affairs for you. Even if your company never import, please don’t worry about it. You just need to stay in your warehouse to receive the products, it’s very simple!

Whether you are faced with a foundation issue or structural challenge, our staffs are ready to assist you as needed from your project. Please feel free to contact us if you want to lower your cost and ensure quality. Our mad pricing will make you become much more competitive and input new energy to your company!

Basic Information

Business Type:

Manufacturer
Main Products:

square bar helical piles,round shaft helical piles,steel push piers,anchors
Location:

No. 59 Gongyenan Road, Jinan City, Shandong Province, China
Total Employees:

51-100
Year Established:

2004
