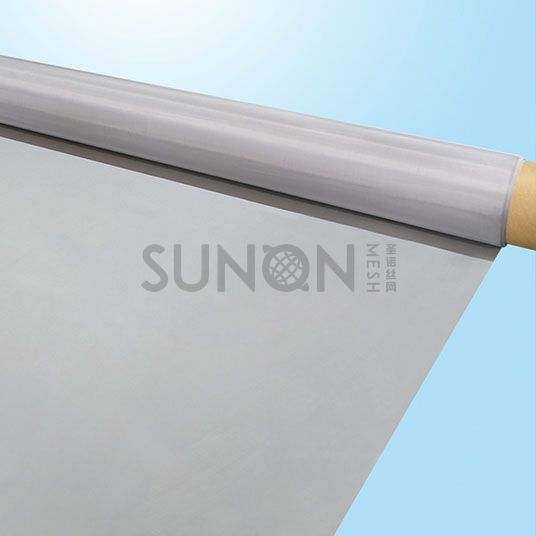

Stainless Steel Fine Mesh custom Hardware Cloth wholesale high quality Hardware Mesh

USD 0.00-0.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time: 1-4weeks

Packaging Details: As required

Port: Xingang

Payment Terms: T/T ,

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brand Name

Sunon
Place of Origin

China

Brief description

Stainless Steel Fine Mesh custom Hardware Cloth wholesale high quality Hardware Mesh

Detailed description

Stainless Steel Fine Mesh custom Hardware Cloth wholesale high quality Hardware Mesh

Product Description:

Supplies Woven Wire Cloth for a variety of applications and for filtration in oilfield, aerospace, chemical, hot gas, water purification, beverage, edible oil and food and pharmaceutical industries; and robustly woven process conveyor belting for nonwovens, engineered wood, mining, chemical, water and wastewater and food industries.

We supply all types of Hardware Mesh, the most commonly used wire cloth weaves are Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, we are Hardware Cloth supplier.

Materials included Stainless Steel, Super Duples and Plain Steel, and Aluminum, Copper, Bronze, Brass, Monel, Nickel, NiChrome, Kanthal etc and many more alloy.

Stainless Steel Woven Wire Cloth Specification:

Mesh Count per Inch	Wire Diameter mm	Aperture Size mm	Open Area	Weight for Stainless Steel (kg/sq m)
2	1.8	10.9	74%	3.22
2	1.6	11.1	76%	2.54
2	1.4	11.3	79%	1.95
3	2	6.467	58%	5.96
3	1.8	6.667	62%	4.83
3	1.6	6.867	66%	3.82
3	1.4	7.067	70%	2.92
4	2	4.35	47%	7.95
4	1.8	4.55	51%	6.44
4	1.6	4.75	56%	5.09
4	1.4	4.95	61%	3.89
4	1.2	5.1	65%	3.11
4	1	5.35	71%	1.99
4	0.9	5.45	74%	1.61
5	1.2	3.83	57%	3.88
5	1	4.08	65%	2.48
6	1.6	2.633	39%	7.63
6	1.4	2.833	45%	5.84
6	1.2	3.033	51%	4.29
6	1	3.233	58%	2.98
6	0.9	3.333	62%	2.41
6	0.8	3.433	66%	1.91
6	0.71	3.523	69%	1.5
8	1.25	1.925	37%	6.21
8	1.12	2.055	42%	4.99
8	1	2.175	47%	3.97
8	0.9	2.275	51%	3.22
8	0.8	2.375	56%	2.54
8	0.71	2.465	60%	2
8	0.63	2.545	64%	1.58
8	0.56	2.615	68%	1.25
10	0.9	1.64	42%	4.02
10	0.8	1.74	47%	3.18
10	0.71	1.83	52%	2.5
10	0.63	1.91	57%	1.97
10	0.56	1.98	61%	1.56
10	0.5	2.04	65%	1.24
12	0.8	1.317	39%	3.82
12	0.71	1.407	44%	3.01
12	0.63	1.487	49%	2.37
12	0.56	1.557	54%	1.87
12	0.5	1.617	58%	1.49
12	0.45	1.667	62%	1.21
14	0.56	1.254	48%	2.18
14	0.5	1.314	52%	1.74
14	0.45	1.364	57%	1.41
14	0.4	1.414	61%	1.11
14	0.355	1.459	65%	0.88
14	0.315	1.499	68%	0.69
16	0.63	0.958	36%	3.15
16	0.56	1.028	42%	2.49
16	0.5	1.088	47%	1.99
16	0.45	1.138	51%	1.61
16	0.4	1.188	56%	1.27
16	0.355	1.233	60%	1
16	0.315	1.273	64%	0.79
18	0.236	1.175	83%	0.5
20	0.56	0.71	31%	3.12
20	0.5	0.77	37%	2.48
20	0.45	0.82	42%	2.01
20	0.4	0.87	47%	1.59
20	0.355	0.915	52%	1.25
20	0.315	0.955	57%	0.99
24	0.45	0.608	33%	2.41
24	0.355	0.703	44%	1.5
24	0.315	0.743	49%	1.18
28	0.355	0.552	37%	1.75
28	0.315	0.592	43%	1.38
30	0.355	0.492	34%	1.88
30	0.315	0.532	39%	1.48
30	0.28	0.567	45%	1.17
30	0.25	0.597	50%	0.93
30	0.224	0.623	54%	0.75
36	0.25	0.456	42%	1.12
36	0.224	0.482	47%	0.9
36	0.212	0.494	49%	0.8
40	0.224	0.411	42%	1
40	0.212	0.435	47%	0.79
40	0.19	0.445	49%	0.72
40	0.132	0.503	79%	0.35
50	0.21	0.298	34%	1.1
50	0.2	0.308	37%	0.99
50	0.19	0.318	39%	0.9
50	0.16	0.348	47%	0.64
50	0.15	0.358	50%	0.56
60	0.18	0.243	33%	0.97
60	0.16	0.263	39%	0.76
60	0.14	0.283	45%	0.58
70	0.15	0.213	34%	0.78
70	0.14	0.223	38%	0.68
70	0.125	0.238	43%	0.54
80	0.14	0.178	31%	0.78
80	0.125	0.193	37%	0.62
100	0.112	0.142	31%	0.62
100	0.1	0.154	37%	0.5
100	0.09	0.164	42%	0.4
100	0.08	0.174	47%	0.32
120	0.09	0.122	33%	0.48
120	0.08	0.132	39%	0.38
120	0.065	0.147	48%	0.25
140	0.08	0.101	31%	0.45
150	0.071	0.098	34%	0.38
150	0.065	0.109	42%	0.27
165	0.05	0.104	46%	0.2
180	0.06	0.081	33%	0.32
180	0.05	0.091	42%	0.22
200	0.05	0.077	37%	0.25
200	0.04	0.087	47%	0.16
230	0.036	0.074	45%	0.15
250	0.04	0.062	37%	0.2
270	0.04	0.054	33%	0.21
270	0.036	0.058	38%	0.17
300*	0.04	0.045	28%	0.24
300*	0.036	0.055	42%	0.13
325*	0.036	0.042	29%	0.21
325	0.028	0.05	41%	0.13
350*	0.03	0.043	34%	0.16
400*	0.03	0.034	27%	0.18
500*	0.025	0.026	26%	0.16

Mesh	Wire Diameter				Weave
	Warp		Shute
	in	mm	in	mm
12x64	0.023	0.58	0.0165	0.42	Plain
14x88	0.019	0.48	0.012	0.30	Plain
14x110	0.016	0.40	0.011	0.28	Plain
24x110	0.014	0.355	0.010	0.25	Plain
16X200	0.014	0.355	0.010	0.25	Twill
30X150	0.009	0.23	0.007	0.18	Plain
20X200	0.0135	0.34	0.011	0.28	Twill
40X200	0.007	0.18	0.0055	0.14	Plain
20X300	0.010	0.25	0.007	0.18	Twill
30X250	0.010	0.25	0.008	0.20	Twill
20X350	0.010	0.25	0.006	0.15	Twill
20X250	0.010	0.25	0.0082	0.21	Twill
50X600	0.007	0.18	0.0035	0.09	Twill
28X400	0.007	0.18	0.005	0.13	Twill
50X250	0.0055	0.14	0.0045	0.11	Plain
28X500	0.007	0.18	0.0045	0.11	Twill
50X700	0.0055	0.14	0.003	0.076	Twill
80X700	0.004	0.10	0.003	0.076	Twill
100X1000	0.004	0.10	0.002	0.051	Twill
165X800	0.0028	0.071	0.002	0.05	Twill
165X1400	0.0028	0.071	0.0016	0.04	Twill
200X1400	0.0028	0.071	0.0016	0.04	Twill
325X2300	0.0014	0.035	0.001	0.025	Twill
