Preferred transport ventilator for acute attacks - Multifunctional transport ICU ventilator 510S High-end transport ventilator with non-invasive ventilation and multiple modes 510S is ventilating patient

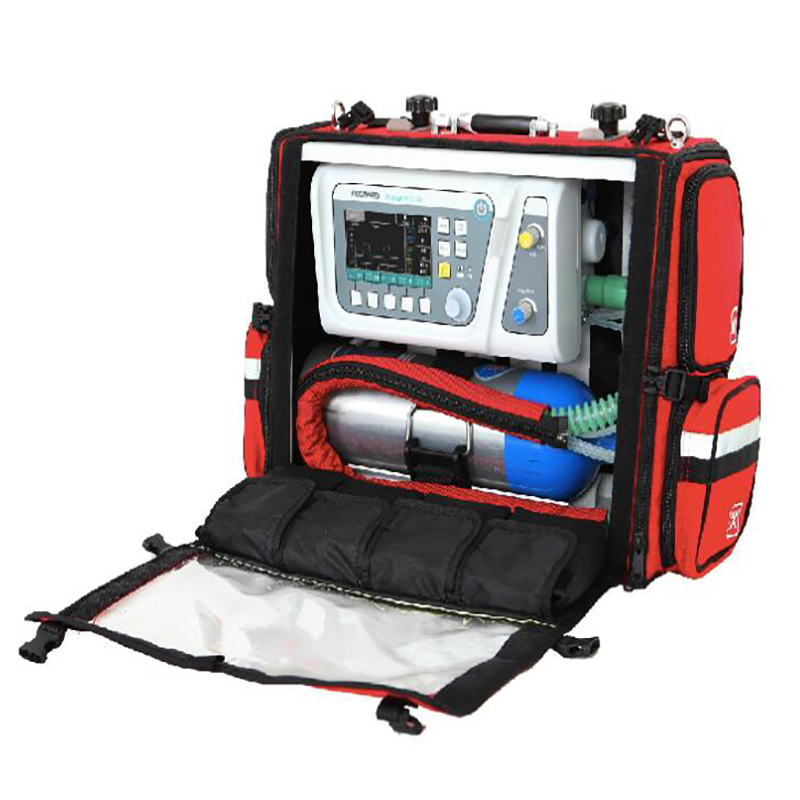

510S is a portable ventilator designed for emergency transport.
It can be used for both non-invasive ventilation and invasive ventilation.The comprehensive ventilation mode makes it suitable for various patients.
Use battery and AC/DC power freely. The super strong core makes it fully capable of being used in extreme environments such as high altitude areas, salt fog areas, vehicle shaking and rain and snow. Comes with a variety of portable designs, making it very convenient whether it is transported by car or carried by hand. It is also one of our star products.
With advanced technology and versatile ventilation functions, 510S respiratory work station meets the breathing requirements of adult and pediatric.
Shangrila 510S Integrated Respiratory Work Station
1exportimescheckplete Ventilation Modes
● The device hosts six ventilation modes.
● Besides the conventional Volume- Controlled ventilation mode, it also has Pressure-Controlled ventilation mode,
● SIMV and CPAP modes.
The machine can provide a precise tidal volume.
● It also provides inspiration hold and manual breath, one-button operation, and is thus incredibly convenient.
2.Ideal O2 Delivery
● With its advanced technology, the range of FiO2 can be set from 40% to 100%.
● Furthermore, this range can be adjusted continuously.
3.Clinical Enhancements
● Manual breath
● Inspiratory hold
● Alarm silence
● Pre-use test
4.Working Scenarios
● Ward, Emergency Department,Sub-acute Care Unit

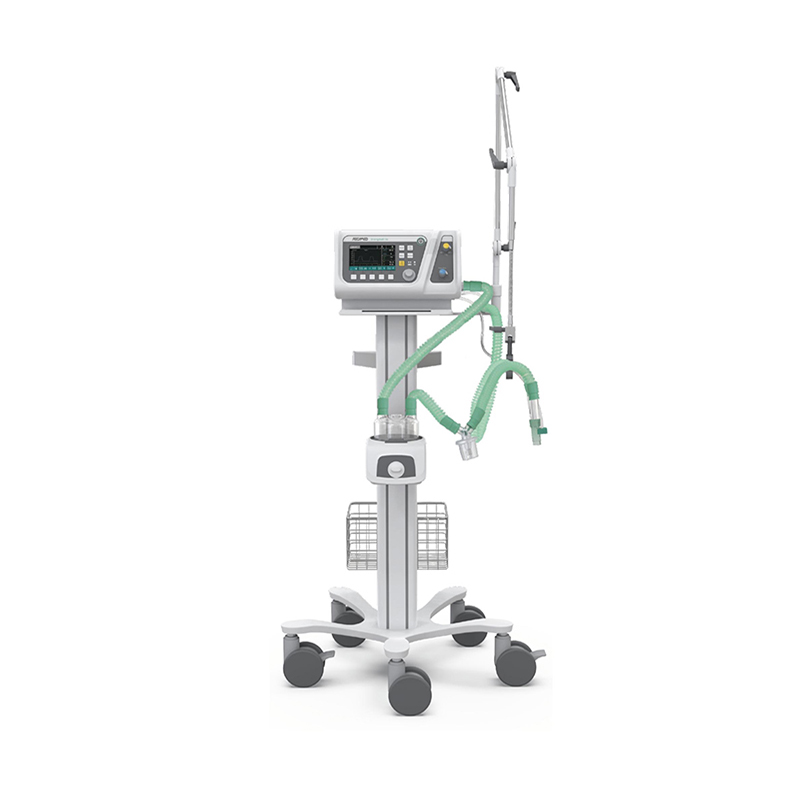

Superior Mobile ICU ventilator
• Comprehensive ICU ventilator including BIVENT and PRVC
• Compact, big capacity battery, no air compressor, intra-hospital mobility
• Flexible device configuration: equipped on a trolley, bed or ceiling pendant
Cost Effective Solution
• Unique metal-based, autoclavable, heated exhalation valve
• Built-in flow sensor, non-consumable design
• Upgradeable ventilation system software, with an available USB port
Applications
Emergency - Transport - Intra-hospital transfer - Recovery
Multiple Ways of Power Supply
● Vehicle D/C power
● A/C power adaptor
● 4.5h long lasting internal battery
● External backup battery(optional)
Comprehensive Accessories
● Suction unit ● 2.8L Oxygen cylinder kit ● Oxygen sensor
● Hanging plate assembly ● Bluetooth module
|
Ventilation Settings
|
|
|
Ventilation Modes
|
• VCV (A/C), PCV (A/C), PRVC (optional), PSV (optional), STANDBY • SIMV (VCV)+PSV, SIMV (PCV)+PSV, SIMV (PRVC)+PSV
• SPONT/CPAP+PSV
• BIVENT/APRV +PSV (optional)
• NIV/CPAP, NIV-T, NIV-S/T
|
|
Enhancements
|
• Apnea ventilation, Pressure and Flow trigger, Automatic Tube Compensation (ATC), Smart suction • Manual breath, Insp/Exphold,
Screen freeze, Nebulization, Lung recruitment
|
|
Parameters
|
|
|
Tidal volume (VT)
|
20-2000ml
|
|
Respiratory rate (RR)
|
1 to 80 bpm
|
|
Inspiratory time (Ti)
|
0.2 to 9 s (adult), 0.2 to 5 s (pediatric)
|
|
Inspiratory flow (Flow)
|
0 to 100 L/min (pediatric), 0 to 180L/min (adult)
|
|
Inspiratory pressure (Pinsp)
|
5 to 70 mbar (or cmH2O)
|
|
Inspiratory pressure limit (Pmax)
|
80 mbar (or cmH2O)
|
|
PEEP
|
0 to 35 mbar (or cmH2O)
|
|
Tslope
|
0 to 2 s
|
|
O2 concentration (FiO2)
|
21 to 100 Vol%
|
|
Trigger sensitivity
|
0.5 to 20 L/min (Flow trigger),
-20 to 0 mbar (or cmH2O) (Pressure trigger)
|
|
I/E ratio
|
1/10 to 4/1
|
|
Apnea alarm time
|
10-60 seconds
|
|
Monitoring
|
• Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2)
• Compliance (dynamic & static), Resistance (R), MVleak, RSBI, WOB, I:E, Vdaw, PEEPi • Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop
|
|
Alarms
|
Expiratory minute volume (MV) High/Low, Airway pressure (Paw) High/Low,
VTe Low, PEEP High/Low, Insp. O2 concentration (FiO2) High/Low,
End-expiratory CO2 concentration (etCO2) High/Low, fspont High, Apnea alarm, Disconnection, Flow sensor error, Gas supply, Electrical supply & battery failure,
Exhalation obstruction, Apnea backup for low frequency alarm
|
|
Dimensions (WxDxH)
|
375mm x 395mm x 430mm
|
|
Weight
|
17kg (37.5lbs)
|
|
Screen
|
12.1" TFT color touch screen
|
