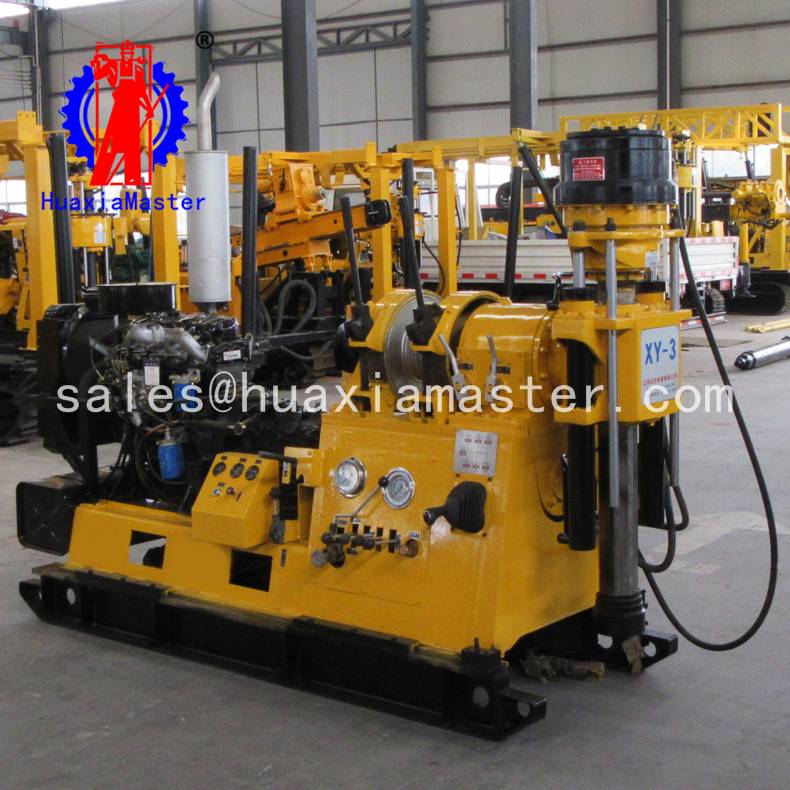

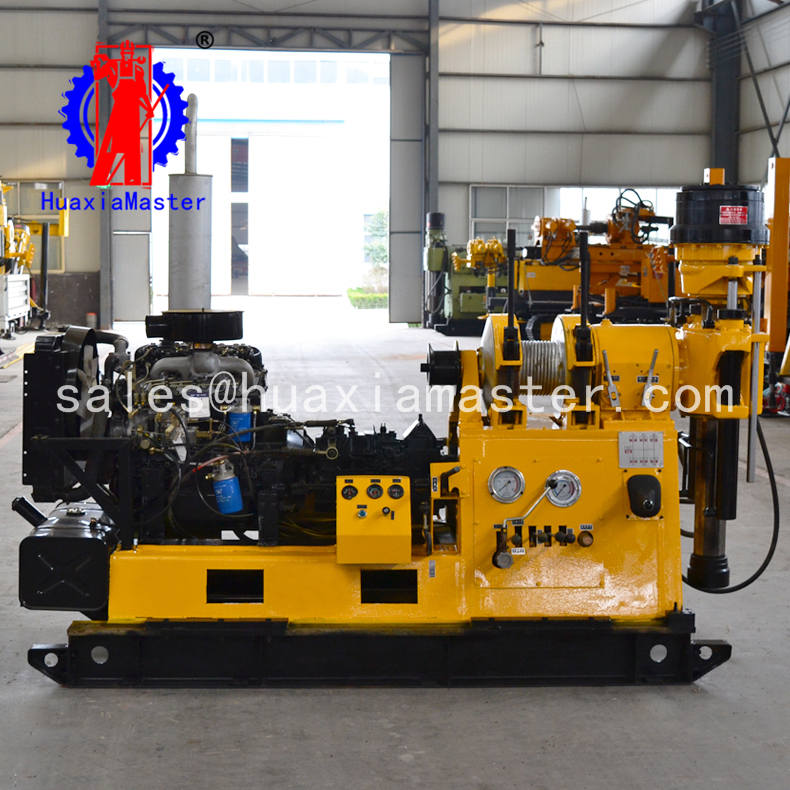

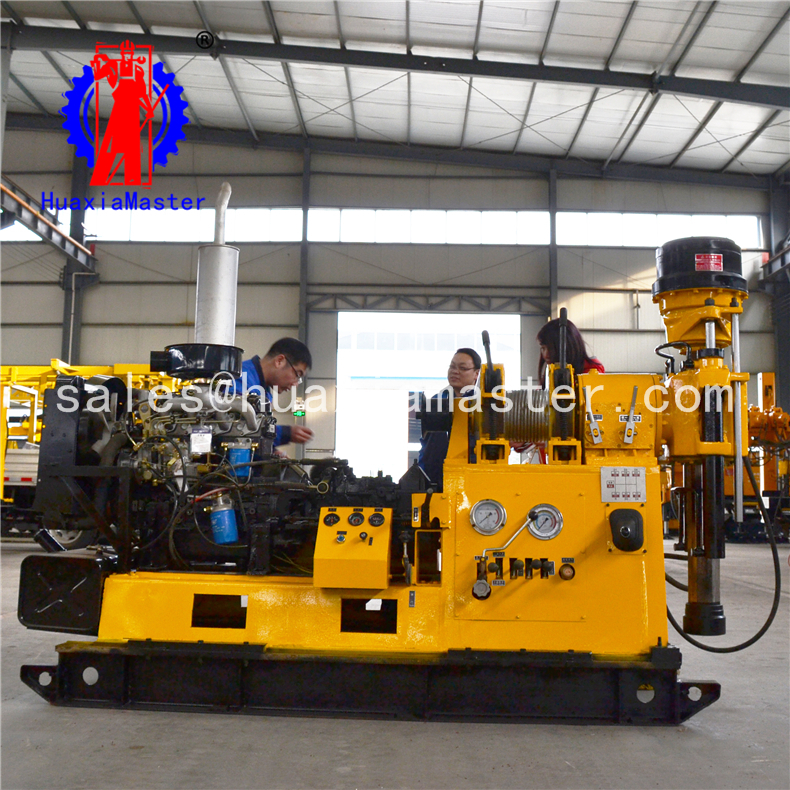

XY-3 hydraulic water well drilling rig

USD 4000.00-6000.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time: 7 days

Packaging Details: export wooden box

Port: Qingdao

Payment Terms: T/T ,L/C ,

Send Inquiry Add to My Favorites

Share to:

Basic Information

After-sales Service Provided

Yes
Warranty

1 year
Certification

iso 9001
Usage

water well dilling rig
Model Number

XY-3
Brand Name

huaxiawacter
Place of Origin

china
Condition

new

Brief description

water well drilling rig

Detailed description

. Features of XY-3 hydraulic water well drilling rig

XY-3 hydraulic water well drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application
Large torque, strong bearing capacity, can realize long distance control speed change, operation centralized and convenient
Large engine power and two reverse rotation gears, can easily solve the water well drilling rig work accident.
Equipped with normally closed hydraulic chuck, operation is flexible and reliable
The independent operation of the vertical shaft and the hoist can be realized
The diameter of the vertical shaft through the hole is large and can be replaced with a large six party active drill rod

2. Parameters of XY-3 hydraulic water well drilling rig

XY-3 water well drilling rig
Water well drilling depth	600m
Borehole diameter	300-75mm
Max open hole caliber	300mm
End hole caliber	75mm
Drilling rod diameter	60
Drilling angle	90°-65°
Spindle
spindle speed	30-1050r/min
Spindle stroke	29-137r/min
Spindle stroke	60mm
Spindle inner diameter	96mm
Lifting capacity	6000kg
Hoist
Max.single line lifting speed	0.5-1.9m/s
Wirerope caliber	12.5mm
Max.single line lifting capacity	4000kg
Reel diameter	300mm
Wirerope length	50m
Maximum lifting capacity of single rope	3000kg
Mud pump
Type	Horizontal three cylinder BW-250
Displacement	250l/min
Work pressure	80kg/cm²
Water inlet pipe diameter	75mm
Water outlet pipe diameter	50mm
Gear oil pump
Duplex gear oil pump	CBF-F63/25
Front displacement, pressure	63l/min 20mpa
Water outlet pipe diameter	25l/min 20mpa
Power
Diesel engine	39kw
Electric machinery	22kw
Weight size
Drill weight	1800kg
Shape size	25009001800mm
