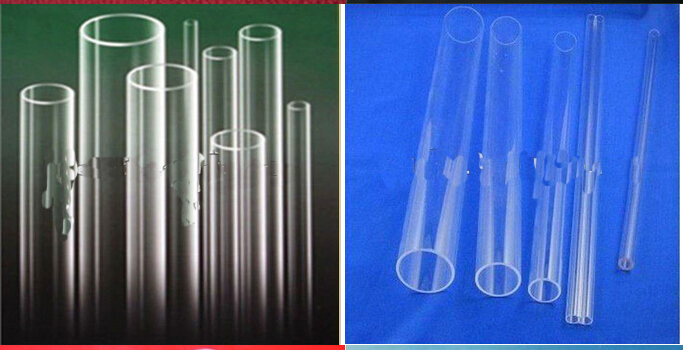

high quality quartz glass tube

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brief description

The product is Widely used in the filed of semiconductor, metallurgy, chemical industry, electric light source, photo-communication, medical equipment, scientific instruments and so on. We really appreciate your visiting and assisting, pls kindly tell me your sizes and technology.

Detailed description

Quick Details

Place of Origin:	Tianjin China (Mainland)	Brand Name:	talents	Model Number:	Tal-07-13
Type:	Clear Quartz Pipe	Color:	Clear, Transparent	Application:	semiconductor, metallurgy, chemical industry
Surface Treatment:	Polished	Shape:	One End Closed Quartz Tube	Outside Diameter:	3-300mm
Ozone Content:	High Ozone	Material:	quartz glass	Purity:	More than 99.99%
OD:	3-300mm	thickness:	0.5-10mm	length:	10-3000mm

Packaging & Delivery

Packaging Detail:	Inner: Air-cushion film Outer: Carton or wooden case. We can also pack the goods according to buyer's requirement.
Delivery Detail:	10 days after the receipt of your payment

Specifications

1.high quality quartz glass tube
2.OD: 3-300mm
3.thickness: 0.5-10mm
4.length: 10-3000mm
5..purity: +99.99%

6..Dimensional Tolerance as follows:

Range of OD	OD	WT	Siding	Ellipsticity	Camber/1220mm
≤5mm	±2.0%	±10%	12%	2.0%	2.5mm
6-15mm	±1.25%	±8%	10%	1.5%	2.5mm
15-20mm	±1.25%	±10%	15%	1.5%	2.5mm
20-25mm	±1.25%	±10%	15%	1.5%	3.0mm
25-30mm	±1.35%	±12%	15%	1.5%	3.0mm
30-80mm	±1.5%	±14%	15%	2.0%	3.0mm
80-300mm	±1.5%	±14%	15%	2.0%	3.0mm

7..Chemical Composition unit: ppm

Cr	Ge	Fe	Mg	Ti	Ca	AI	Na	Li	K
0.1	0.4	1.5	0.4	0.1	0.8	16	2.3	1.5	2.0

8..Lights transmittance

nm	≤220	255	280	315	350	380	590	780
%	89	91	93	93	93	93	93.2	93.4

9..Application: Widely used in the filed of semiconductor, metallurgy, chemical industry, electric light source, photo-communication, medical equipment, scientific instruments and so on. We really appreciate your visiting and assisting, pls kindly tell me your sizes and technology.
