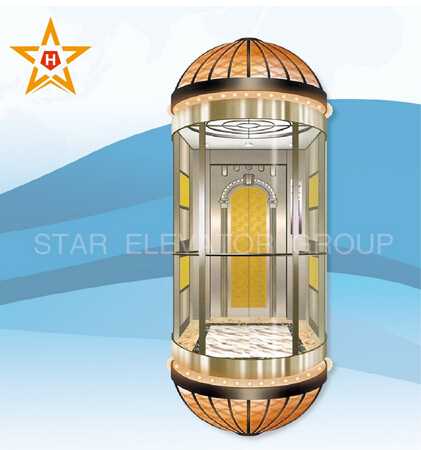

630-1600kg MRL Capsule Observation lift elevator for outdoor

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brief description

Panoramic elevators are generally used in open environments, so it is vital that the flow of people into, through, and out of them is efficiently controlled. They also create a uniform aesthetic and sightseeing experience for passengers as they travel.

Detailed description

Elevator parameters

Persons	Load (kg)	Speed (m/s)	Car dimension (mm)	Door opening size(mm)	Hoist-way size (mm)			Machine room size (mm)		Car shape	Max traveling height (m)
			Inner size C.W x C.D	2P Center opening	W x D	Overhead height (mm)	Pit depth (mm)	W x D	Height
8	630	1.0	1400x1100	800x2100	2200x1650	4500	1600	2200x1650	2900	Small and exquisite	45
		1.75				4600	1700				95
10	800	1.0	1400x1350	800x2100	2200x1850	4500	1600	2200x1850	2900	Small and exquisite	45
		1.75			2250x1850	4600	1700	2250x1850			95
		2.0				4800	1800				120
		2.5				5000	2000				150
13	1000	1.0	1600x1500	900x2100	2400x1950	4500	1600	2400x1950	2900	Small and exquisite	45
		1.75			2450x1950	4600	1700	2450x1950			95
		2.0				4800	1800				120
		2.5				5000	2000				150
16	1250	1.0	1950x1400	1100x2100	2750x1900	4500	1600	2750x1900	2900	Small and exquisite	45
		1.75			2800x1900	4600	1700	2800x1900			95
		2.0				4800	1800				120
		2.5				5000	2000				150
18	1350	1.0	1950x1550	1100x2100	2750x2000	4500	1600	2750x2000	2900	Small and exquisite	45
		1.75			2800x2000	4600	1700	2800x2000			95
		2.0				4800	1800				120
		2.5				5000	2000				150
21	1600	1.0	1950x1750	1100x2100	2750x2200	4500	1600	2750x2200	2900	Small and exquisite	45
		1.75			2800x2200	4600	1700	2800x2200			95
		2.0				4800	1800				120
		2.5				5000	2000				150
13	1000	1.0	1400x1850	900x2100	2400x2395	4500	1700	2400x2395	2900	Chamfer	45
		1.75			2450x2395	4600	1800	2450x2395			95
		2.0				4800					120
		2.5				5000	2000				150

Standard functions

Standard Function

Safety function	Photocell protection	l In the door open and shut period, infrared light that covers the whole door height is used to probe the door protection device of both the passengers and objects.
	Designated stop	l If the elevator can not open the door in the destination floor out of some reason, the elevator will close the door and travel to the next designated floor.
	Overload holding stop	l When the car is overload, the buzzer rings and stops the elevator in the same floor.
	Anti-stall timer protection	l The elevator stops operation due to slippery traction wire rope.
	Start protection control	l If the elevator does not leave door zone with in the designated time after it gets started, it will stop the operation.
	Inspection operation	l When the elevator enters into inspection operation, the car travels at inching running.
	Fault self-diagnosis	l The controller can record 62 latest troubles so as to quickly remove the trouble and restore the elevator operation.
	Repeated door closing	l If the elevator can not close the door due to certain obstacle or interference, the elevator will reopen or re-shut the door until sundries are eliminated.
	Up/down over-run and final limit protection	l The device can effectively prevent the elevator from surging to the top or knocking the bottom when it is out of control. It results in more safe and reliable elevator travel.
	Down over-speed protection device	l When the elevator downs 1.3 times higher than the rated speed, this device will automatically cut off control mains, stop the motor running. Safety tongs act to force the elevator stop in order to ensure the safety.
	Upward over-speed protection device	l When the elevator up speed is 1.3 times higher than rated speed, the device will automatically decelerate or brake the elevator.

Man-computer interface	Micro-touch button for car call and hall call	l Novel micro-touch button is used for operation panel command button in the car and landing calling button.
	Floor and direction indicator inside car	l The car shows the elevator floor location and current travel direction.
	Floor and direction indicator in hall	l The landing shows the elevator floor location and current travel direction.

Emergency function	Emergency car lighting	l Emergency car lighting automatically activated once power failure.
	Inching running	l When the elevator enters into emergency electric operation, the car travels at low speed inching running.
	Five way intercom	l Communication amid car, car top, elevator machine room, well pit and rescue duty room through interphone.
	Bell	l In emergency conditions, if bell button above car operation panel is continuously pressed, electric bell on top of the car will ring .
	Fire emergency return	l If you start key switch in main landing or monitor screen, all the callings will be canceled. The elevator directly and immediately drive to the designated rescue floor and automatically open the door.

630-1600kg MRL Capsule Observation lift elevator for outdoor

Company Profile

Hello, our company is a modernized and professional elevator & escalator group which integrates the design, development, manufacturing, sales, installation, and maintenance into a whole. We are becoming a R&D center for elevator & escalator now, and we have some cooperated & affiliated companies all over the world.

Our main products include Passenger lift, freight lift, panoramic lift, hospital lift, car lift, escalator and autowalk/moving sidewalk. Elevator with machine room and machine room less, speed from 0.5m/s to 6m/s. Escalator with VVVF drive and smart sensor control. They are applicable for residence, business buildings, factories, shopping centers, airports, bus stations and other places.

Our elevator & escalator control technology comes from the United State and Germany, it is very precise and efficient but operation is simple, it can be mastered by engineers easily. Our mechanical design technology is advanced and can be fitting to different requirements from customers.
Most of our parts suppliers are the biggest parts manufacturer in China even in the world. i.e. Our gearless motor from XIZI Forward, Bluelight,KDS, Montanari, Torin; Our gear motor from XINDA, Torin; Our control system from Monarch, STEP, Bluelight; Our door operator from Shenling, Eshine, Wittur etc., all of them are the leading enterprise in elevator and escalator parts industry in the world.
Our international business is developing in 25 oversea states and areas including Korea, Australia, South-East Asia, West-Asia, Middle-east, Europe, North and South America, Africa. Most of elevators and escalators which had been installed are running very well.

We strive to generate long-term returns for customers by conducting our business in a profitable, responsible and transparent manner.
A lifecycle business model for the long term business model is based on a lifecycle approach. We provide customers with solutions for the entire lifetime of their elevators and escalators, starting from new equipment installation. Regular maintenance is required to keep equipment running smoothly, and once it ages, modernization is typically also needed.
Our foremost economic responsibility is to our customers. With our solutions, we bring significant added value to our customers and end users. Sustainable economic performance also brings valuable and lasting benefits to agents, distributors, employees, suppliers and communities as a whole.
