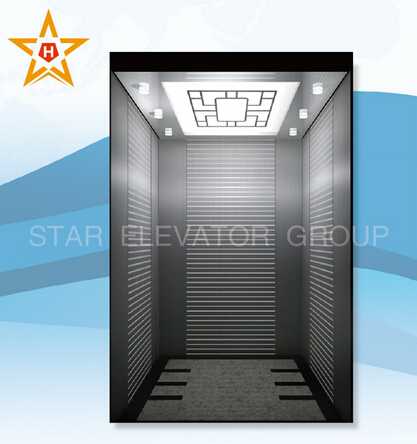

Safe and stable performance passenger lift price

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

Brief description

Spacious elevator cars enable passengers and their luggage, or staff and their equipment, to travel comfortably and efficiently through the buildings.

Detailed description



Our passenger elevators help passengers reach their floors quickly, comfortably, and safely. For tenants, they provide quiet operation, which is especially important at night. For architects, they are easy to integrate into designs and help optimize available building space. For building owners, they help reduce total lifetime costs by providing excellent maintainability and reduced energy consumption.



Spacious elevator cars enable passengers and their luggage, or staff and their equipment, to travel comfortably and efficiently through the buildings.

Elevator parameters



Persons

Load (kg)

Speed (m/s)

Car dimension   (mm)

Door opening size(mm)

Hoist-way size (mm)

Machine room size(mm)

Overhead height (mm)

Pit depth (mm)

Inner size               A x B

Net Door-opening

Width x Depth

Width x Depth

Passenger elevator

6

450

1.0

1100x1100

800

1800x1750

1800x3700

4200

1500

8

630

1.0

1400x1100

800

2000x1800

3000x3500

4500

1500

1.5

4600

1600

1.75

4700

1700

2.0

4900

2000

10

800

1.0

1400x1350

800

2000x2000

3000x3800

4500

1500

1.5

4600

1600

1.75

4700

1700

2.0

4900

2000

2.5

2050x2050

3000x3800

5500

2500

13

1000

1.0

1600x1500

900

2200x2200

3200x4000

4500

1500

1.5

4600

1600

1.75

4700

1700

2.0

4900

2000

2.5

2250x2250

3300x4000

5500

2500

3.0

2400x2400

3600x4100

5800

3200

4.0

6000

3400

16

1250

1.0

1800x1550

1100

2400x2300

3400x4100

4500

1500

1.5

4600

1600

1.75

4700

1700

2.0

4900

2000

2.5

2450x2300

3500x4100

5500

2500

3.0

2600x2550

3600x4200

5800

3200

4.0

6000

3400

18

1350

1.0

1900x1600

1100

2500x2350

3600x4100

4500

1500

1.5

4600

1600

1.75

4700

1700

2.0

4900

2000

21

1600

1.0

1950x1700

1100

2600x2450

3600x4500

4500

1500

1.5

4600

1600

1.75

4700

1700

2.0

4900

2000

Standard functions



Standard Function

















Safety function

Photocell protection

l  In the door open and shut period, infrared light that covers the whole door height is used to probe the door protection device of both the passengers and objects.

Designated stop

l  If the elevator can not open the door in the destination floor out of some reason, the elevator will close the door and travel to the next designated floor.

Overload holding stop

l  When the car is overload, the buzzer rings and stops the elevator in the same floor.

Anti-stall timer protection

l  The elevator stops operation due to slippery traction wire rope.

Start protection control

l  If the elevator does not leave door zone with in the designated time after it gets started, it will stop the operation.

Inspection operation

l  When the elevator enters into inspection operation, the car travels at inching running.

Fault self-diagnosis

l  The controller can record 62 latest troubles so as to quickly remove the trouble and restore the elevator operation.

Repeated door closing

l  If the elevator can not close the door due to certain obstacle or interference, the elevator will reopen or re-shut the door until sundries are eliminated.

Up/down over-run and final limit protection

l  The device can effectively prevent the elevator from surging to the top or knocking the bottom when it is out of control. It results in more safe and reliable elevator travel.

Down over-speed protection device

l  When the elevator downs 1.3 times higher than the rated speed, this device will automatically cut off control mains, stop the motor running. Safety tongs act to force the elevator stop in order to ensure the safety.

Upward over-speed protection device

l  When the elevator up speed is 1.3 times higher than rated speed, the device will automatically decelerate or brake the elevator.



Man-computer interface

Micro-touch button for car call and hall call

l  Novel micro-touch button is used for operation panel command button in the car and landing calling button.

Floor and direction indicator inside car

l  The car shows the elevator floor location and current travel direction.

Floor and direction indicator in hall

l  The landing shows the elevator floor location and current travel direction.

















Emergency function

Emergency car lighting

l  Emergency car lighting automatically activated once power failure.

Inching running

l  When the elevator enters into emergency electric operation, the car travels at low speed inching running.

Five way intercom

l  Communication amid car, car top, elevator machine room, well pit and rescue duty room through interphone.

Bell

l  In emergency conditions, if bell button above car operation panel is continuously pressed, electric bell on top of the car will ring .

Fire emergency return

l  If you start key switch in main landing or monitor screen, all the callings will be canceled. The elevator directly and immediately drive to the designated rescue floor and automatically open the door.



Energy-saving function

Car ventilation, automatic lighting switch

l  If there is no calling or command signal within the stipulated time, the car fan and lighting will be automatically closed in order to save energy.

Remote shut-off

l  The elevator can be called to main landing(after finishing the service) through the key switch and automatically exists the service.



Safe and stable performance passenger lift price

Hello, our company is a modernized and professional elevator & escalator group which integrates the design, development, manufacturing, sales, installation, and maintenance into a whole. We are becoming a R&D center for elevator & escalator now, and we have some cooperated & affiliated companies all over the world.

Our main products include Passenger lift, freight lift, panoramic lift, hospital lift, car lift, escalator and autowalk/moving sidewalk. Elevator with machine room and machine room less, speed from 0.5m/s to 6m/s. Escalator with VVVF drive and smart sensor control. They are applicable for residence, business buildings, factories, shopping centers, airports, bus stations and other places.

Our elevator & escalator control technology comes from the United State and Germany, it is very precise and efficient but operation is simple, it can be mastered by engineers easily. Our mechanical design technology is advanced and can be fitting to different requirements from customers.
Most of our parts suppliers are the biggest parts manufacturer in China even in the world. i.e. Our gearless motor from XIZI Forward, Bluelight,KDS, Montanari, Torin; Our gear motor from XINDA, Torin; Our control system from Monarch, STEP, Bluelight; Our door operator from Shenling, Eshine, Wittur etc., all of them are the leading enterprise in elevator and escalator parts industry in the world.
Our international business is developing in 25 oversea states and areas including Korea, Australia, South-East Asia, West-Asia, Middle-east, Europe, North and South America, Africa. Most of elevators and escalators which had been installed are running very well.

We strive to generate long-term returns for customers by conducting our business in a profitable, responsible and transparent manner.
A lifecycle business model for the long term business model is based on a lifecycle approach. We provide customers with solutions for the entire lifetime of their elevators and escalators, starting from new equipment installation. Regular maintenance is required to keep equipment running smoothly, and once it ages, modernization is typically also needed.
Our foremost economic responsibility is to our customers. With our solutions, we bring significant added value to our customers and end users. Sustainable economic performance also brings valuable and lasting benefits to agents, distributors, employees, suppliers and communities as a whole.
